The Titanium Split-Apart Rescue Litter is the premium choice for rescue teams requiring maximum strength, lightweight performance, and compact transportability. Constructed from titanium and designed with patented StratLoad™ Attachment Points, this litter is ideal for helicopter operations, wilderness rescue, technical rescue, and situations where equipment must be packed into remote locations. The split-apart design nests into a compact package for transport and storage, then quickly assembles when needed.
Engineered to meet UL Classified NFPA standards for rescue litters, the Titanium Split-Apart Rescue Litter combines exceptional durability with reduced weight. The patented StratLoad™ Attachment Points keep lifting hardware protected inside the litter rails, reducing abrasion and preventing improper carabiner loading while maintaining optimal load alignment. Supplied with four litter straps, this litter delivers dependable patient transport in the most demanding rescue environments.
Features
• Lightweight titanium construction for superior strength-to-weight performance

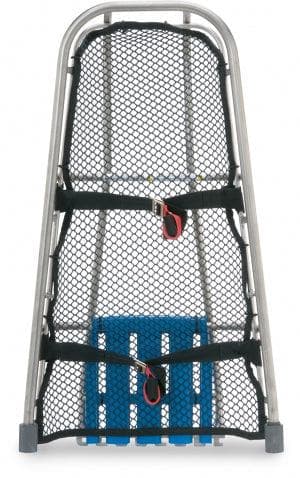

• Split-apart design nests for compact transport and storage
• Quickly assembles for rapid deployment in rescue situations
• Patented StratLoad™ Attachment Points protect lifting hardware from abrasion
• Prevents cross-gate and side-loading of carabiners
• Allows use of any size carabiner or soft attachment connection
• Ideal for helicopter, wilderness, technical, and mountain rescue operations
• Includes four litter straps
• UL Classified to NFPA Standards – Litter
Specifications
• Manufacturer: CMC
• Product Type: Rescue Litter
• Model: Split-Apart, Tapered
• Material: Titanium
• Weight: 17.5 lb (7.5 kg)
• Length: 83.5 in (212 cm)
• Width: 23.5 in (60 cm)
• Depth: 7.5 in (19 cm)
• Nested Length: Less than 45 in (114 cm)
• Load Rating: 11 kN (2,473 lbf)
• Vertical Breaking Strength: 24.9 kN (5,598 lbf)
• Horizontal Breaking Strength: 13.7 kN (3,080 lbf)
• Certification: UL Classified to NFPA Standards – Litter

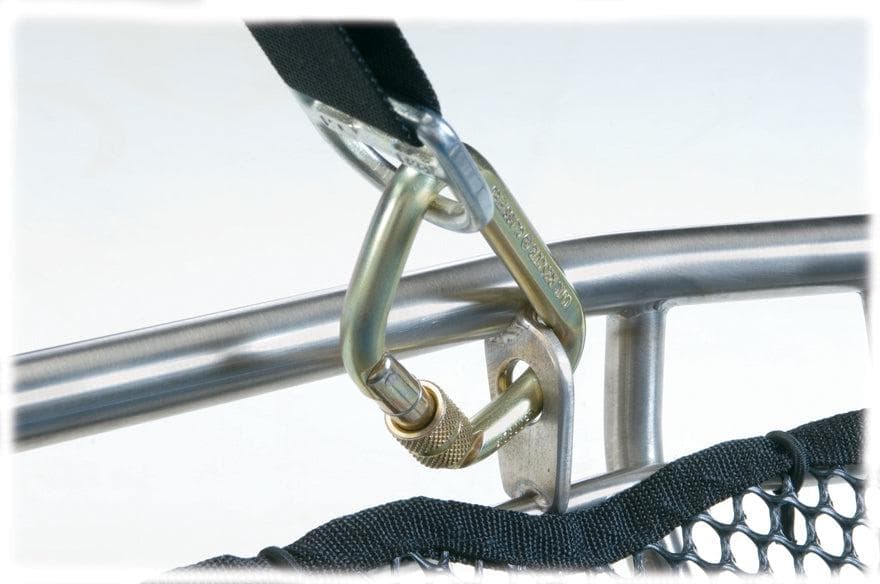

StratLoad™ Attachment Points
• Keeps lifting bridles and carabiners inside the litter rail for added protection
• Reduces abrasion when operating along walls, cliffs, and structures
• Helps prevent cross-gate and side-loading of carabiners
• Aligns loads along the carabiner spine for maximum strength
• Compatible with both carabiners and soft attachment methods
