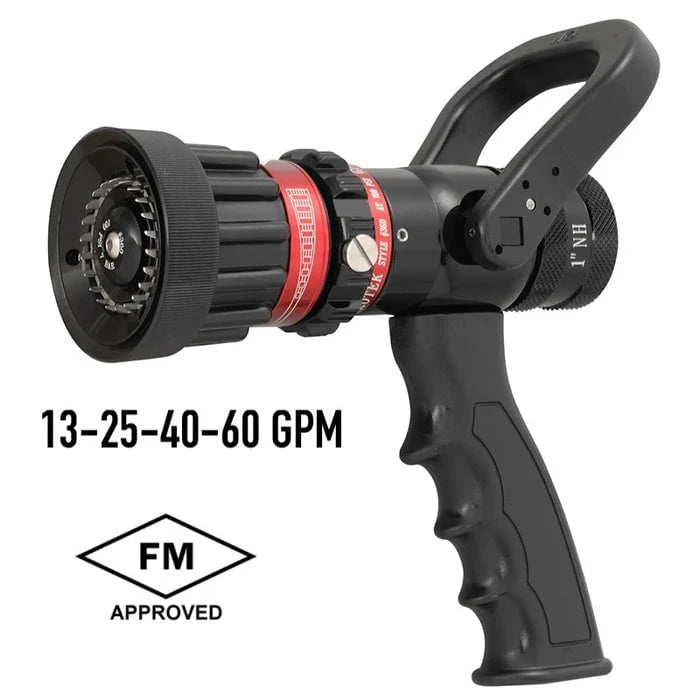

The 1" Selectable Gallonage Nozzle is a compact, versatile combination nozzle designed for wildland, forestry, industrial, and high-pressure firefighting applications. Featuring four selectable flow settings ranging from 13 to 60 GPM, this nozzle allows firefighters to quickly adapt water delivery to changing fireground conditions while maintaining excellent stream performance and firefighter protection.
Engineered for demanding environments, the nozzle is suitable for operating pressures up to 580 PSI and features stainless steel spinning teeth that produce a wide, dense fog pattern for effective cooling and suppression. The ergonomic pistol grip, heavy-duty chrome-plated shutoff ball, and continuous swivel inlet provide superior handling and dependable operation, while the flush capability allows debris to be cleared without interrupting water flow.
Features
• Selectable flow rates of 13, 25, 40, and 60 GPM
• Combination straight stream and adjustable fog pattern operation
• Wide, dense fog pattern for enhanced firefighter protection
• Stainless steel spinning teeth for superior fog pattern performance
• Suitable for high-pressure applications up to 580 PSI (40 BAR)
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Flow pattern detents provide positive positioning and smooth adjustment
• Raised lug for easy pattern identification while wearing gloves
• Laser-etched anodized label for enhanced durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip for improved handling and control
• Continuous female swivel inlet with stainless steel strainer
• Precision-machined components require minimal maintenance
• Compatible with Foam Aeration Tube 1210

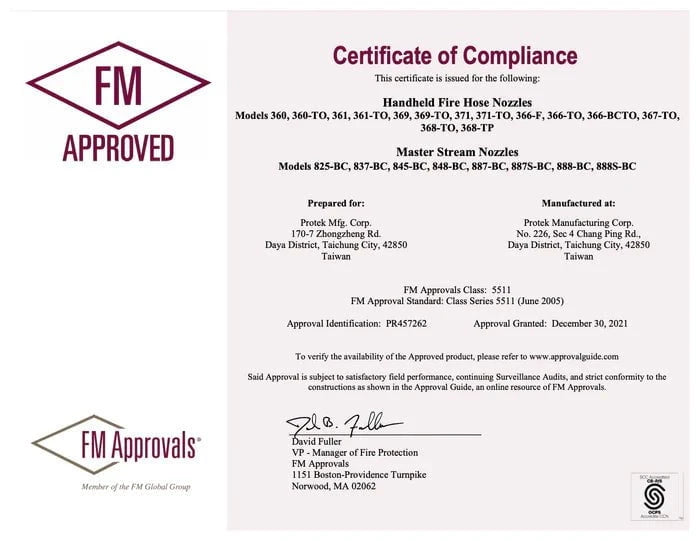

• FM Approved
• NFPA 1964 compliant
Specifications
• Style: 1361
• Product Type: Selectable Gallonage Combination Nozzle
• Flow Rates: 13, 25, 40, and 60 GPM (50, 100, 150, and 230 LPM)
• Operating Pressure: 100 PSI (7 BAR) and up to 580 PSI (40 BAR)
• Waterway Size: 3/4"
• Inlet Size: 1" (25 mm) NH or NPSH
• Teeth Type: Stainless Steel Spinning
• Length: 7.4" (190 mm)
• Weight: 2.3 lbs. (1.1 kg)
• Foam Tube Compatibility: 1210
• Certifications: FM Approved, NFPA 1964 Compliant
