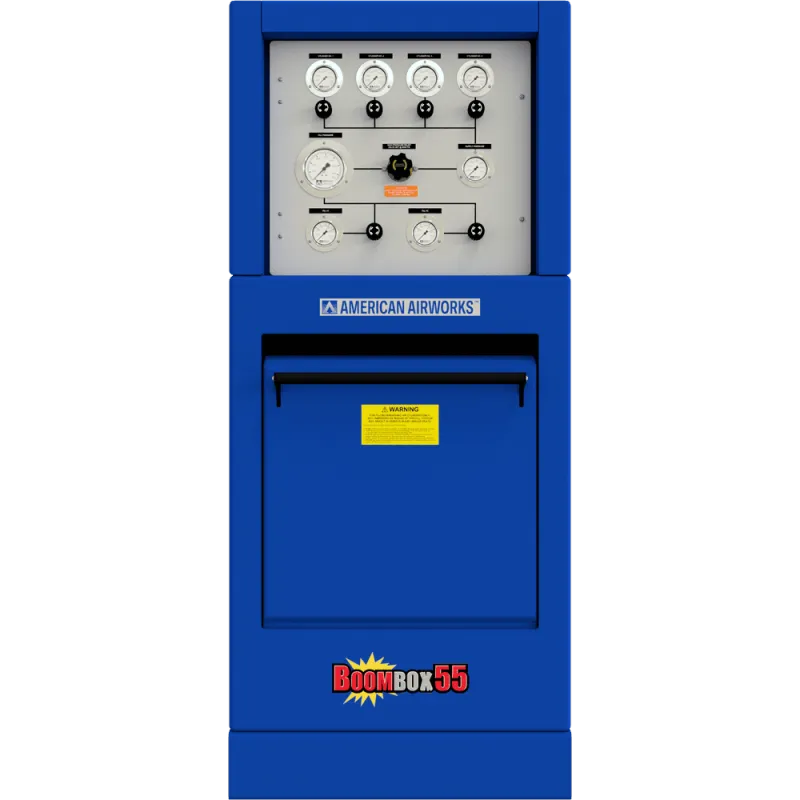

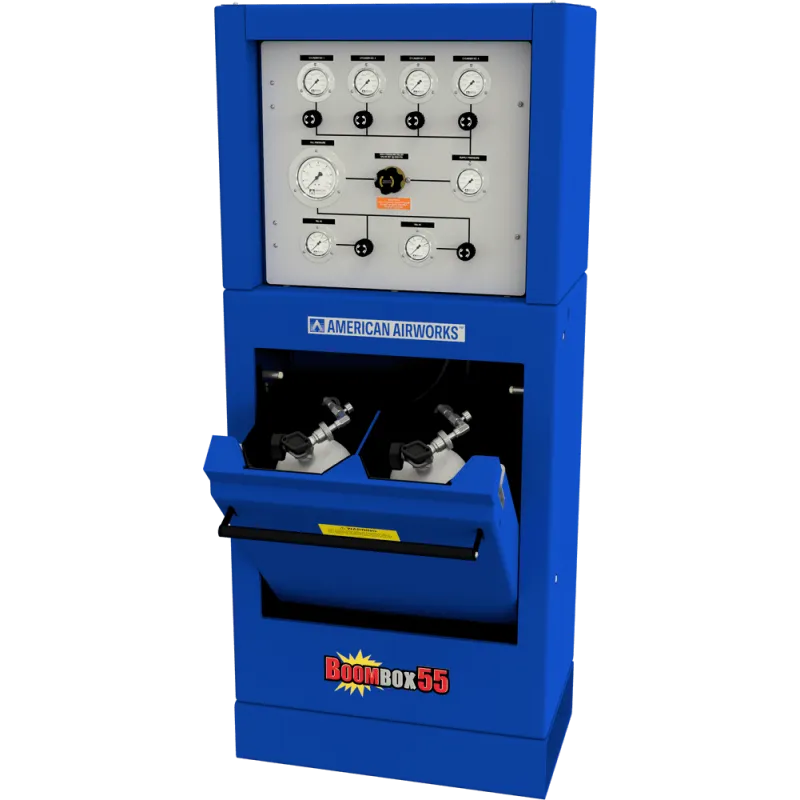

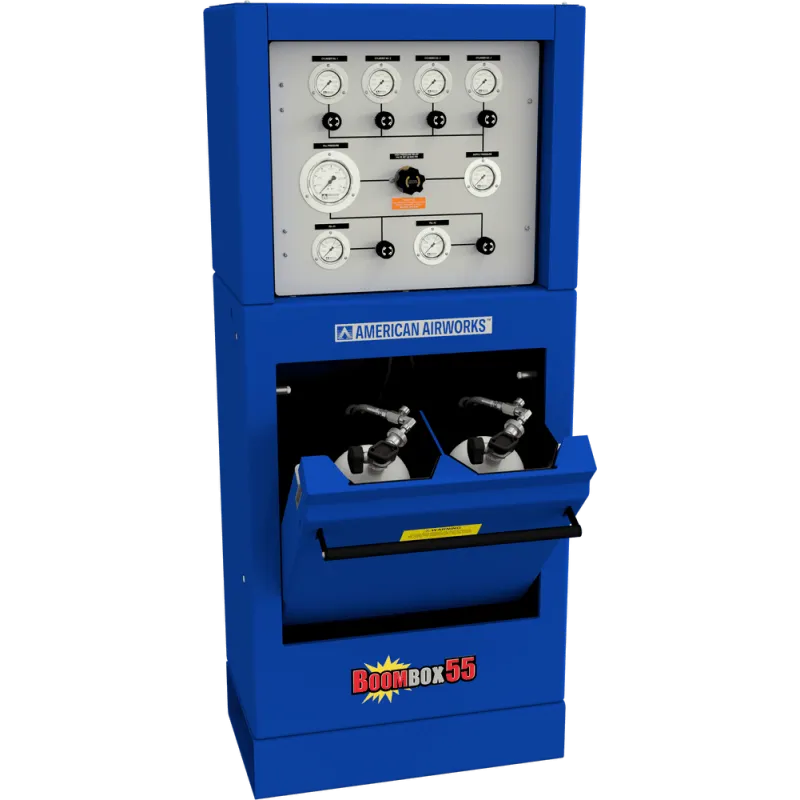

The American Airworks BoomBox™ 5500 PSI Dual SCBA/SCUBA Containment Fill Station is a 5500 PSI Class 2 dual-position containment fill station designed for the safe and efficient refilling of SCBA and SCUBA cylinders. Third-party explosion tested and compliant with NFPA 1900:2024 standards, this station is ideal for fire departments, public safety agencies, and SCUBA operations requiring dependable high-pressure cylinder filling.
Equipped with an integrated air cascade control panel, the BoomBox™ provides precise refill control while maximizing the number of cylinder refills compared to traditional bulk fill systems. Features such as gas-assisted door operation, tilt-out cylinder trays, dual fill hoses, and a single-action locking bar make cylinder loading, unloading, and filling safer and easier for operators.
Features
• 5500 PSI Class 2 containment fill station
• Dual containment design fills one or two SCBA or SCUBA cylinders at a time
• Third-party explosion tested and NFPA 1900:2024 compliant
• Air cascade control panel for precise refill control and increased refill efficiency
• Gas-assisted door operation reduces operator fatigue
• Single-action locking bar activation
• Tilt-out cylinder tray for easy loading and unloading
• Plastic tray slides help prevent cylinder scuffing
• Dual internal fill hoses with bleed valves
• Stainless steel gauge panel
• Gauges and control valves for each storage bank
• Adjustable pressure regulator (0–6000 PSI)
• Inlet and outlet pressure gauges
• Forged-body gauges for enhanced durability
• Easy-access maintenance panels
• Direct replacement for older 4500 PSI Bauer fill stations
Specifications
• Manufacturer: American Airworks
• Model: AC70520T-4A
• Maximum Working Pressure: 5500 PSI
• Fill Positions: Dual
• Compatible Cylinders: SCBA and SCUBA
• Maximum Cylinder Size: 8.6" x 32" with boot
• Cylinder Capacity: 111 cu. ft. SCBA or 120 cu. ft. SCUBA
• Door Opening Options: 45° or 90°
• Dimensions: 30" L x 21" W x 70" H
• Weight: 843 lb (382.38 kg)
