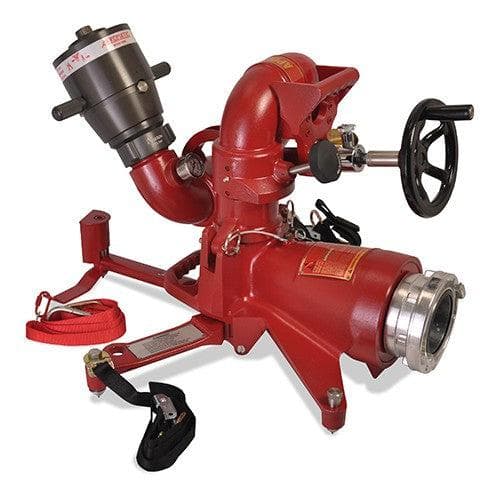

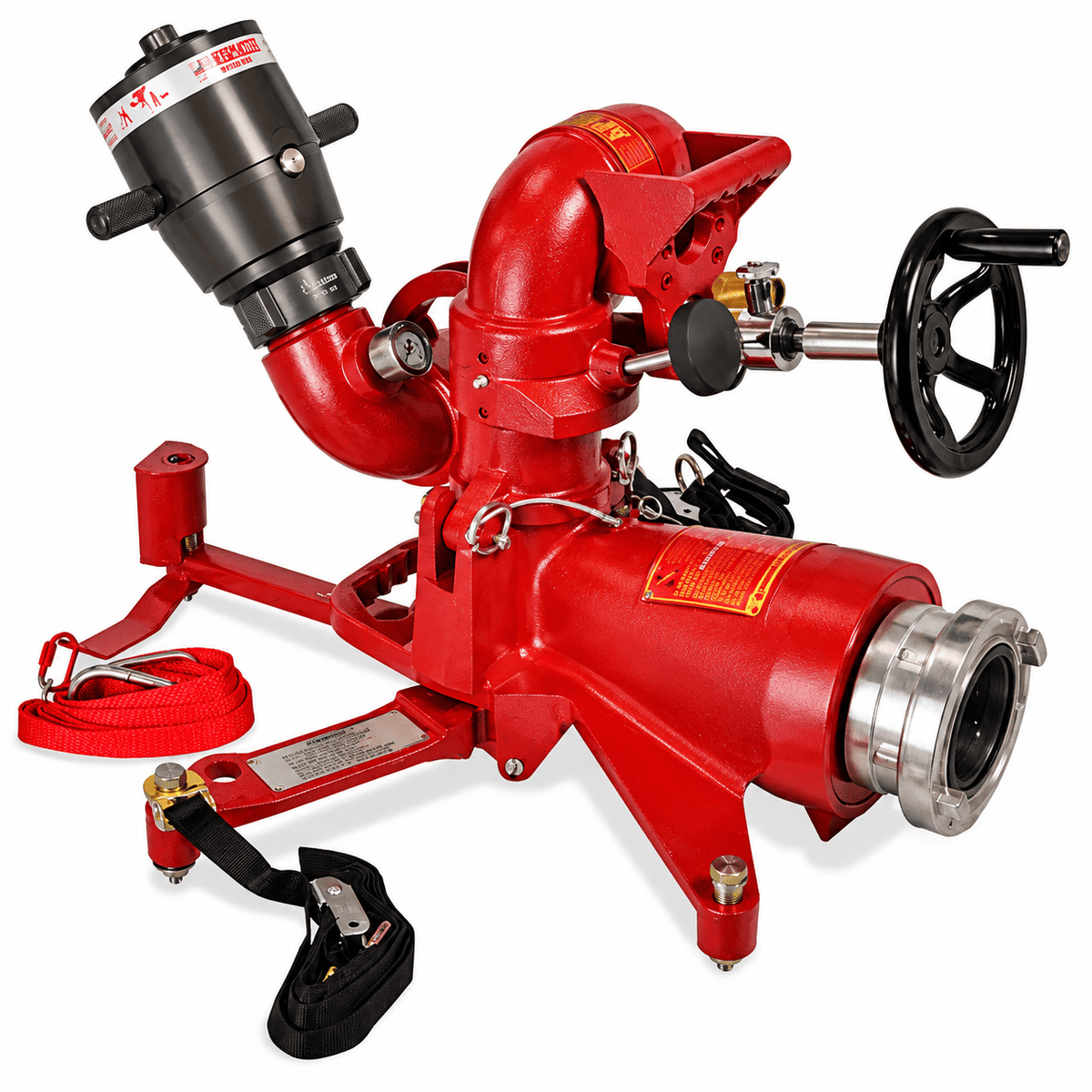

The Akron Brass Apollo™ Single Inlet Portable & Deck Monitor is a versatile master stream device designed for both portable ground-based operations and permanent deck-mounted applications. Built to meet the demanding needs of modern fire departments, the Apollo™ delivers dependable performance, exceptional maneuverability, and high-flow firefighting capability in a durable, lightweight package.
Constructed from rugged Pyrolite®, the Apollo™ features a 3" waterway with cast-in turning vanes for efficient water flow and reduced turbulence. The monitor provides 360° rotation when deck mounted and 180° rotation when used in portable mode, along with vertical travel from 90° above to 15° below horizontal. Its carbide ground spikes provide enhanced stability during portable operation, making it an ideal solution for structural, industrial, and large-scale fire suppression incidents.
Features
• Dual-purpose design for portable and deck-mounted firefighting operations
• 360° rotation in deck-mounted mode
• 180° rotation in portable mode
• Vertical travel from 90° above to 15° below horizontal
• Built-in 35° safety stop for portable operation
• 3" waterway with cast-in turning vanes for efficient flow performance
• Durable lightweight Pyrolite® construction
• Direct-mount design with combination 3" NPT female and 3" flange connection
• Carbide ground spikes provide enhanced stability and wear resistance
• Includes single inlet ground base, lift-off monitor, and truck mounting flange
• Designed for demanding municipal and industrial firefighting applications
Specifications
• Manufacturer: Akron Brass
• Style: 3416
• Product Type: Portable & Deck Monitor
• Material: Pyrolite®
• Rotation: 360° Deck Mode / 180° Portable Mode
• Vertical Travel: +90° to -15°
• Safety Stop: 35° Built-In Stop
• Waterway Size: 3"
• Mounting Connection: 3" NPT Female and 3" Flange
• Width: 13" (330 mm)
• Depth: 23.5" (597 mm)
• Height: 12.69" (322 mm)
• Weight: 23 lbs (10.4 kg)
Included Configurations
• Option 1: Includes Pipe and Quad Stacked Tips
• Option 2: Includes Akron Brass Akromatic® 1250 Master Stream Nozzle (Style 5160)
