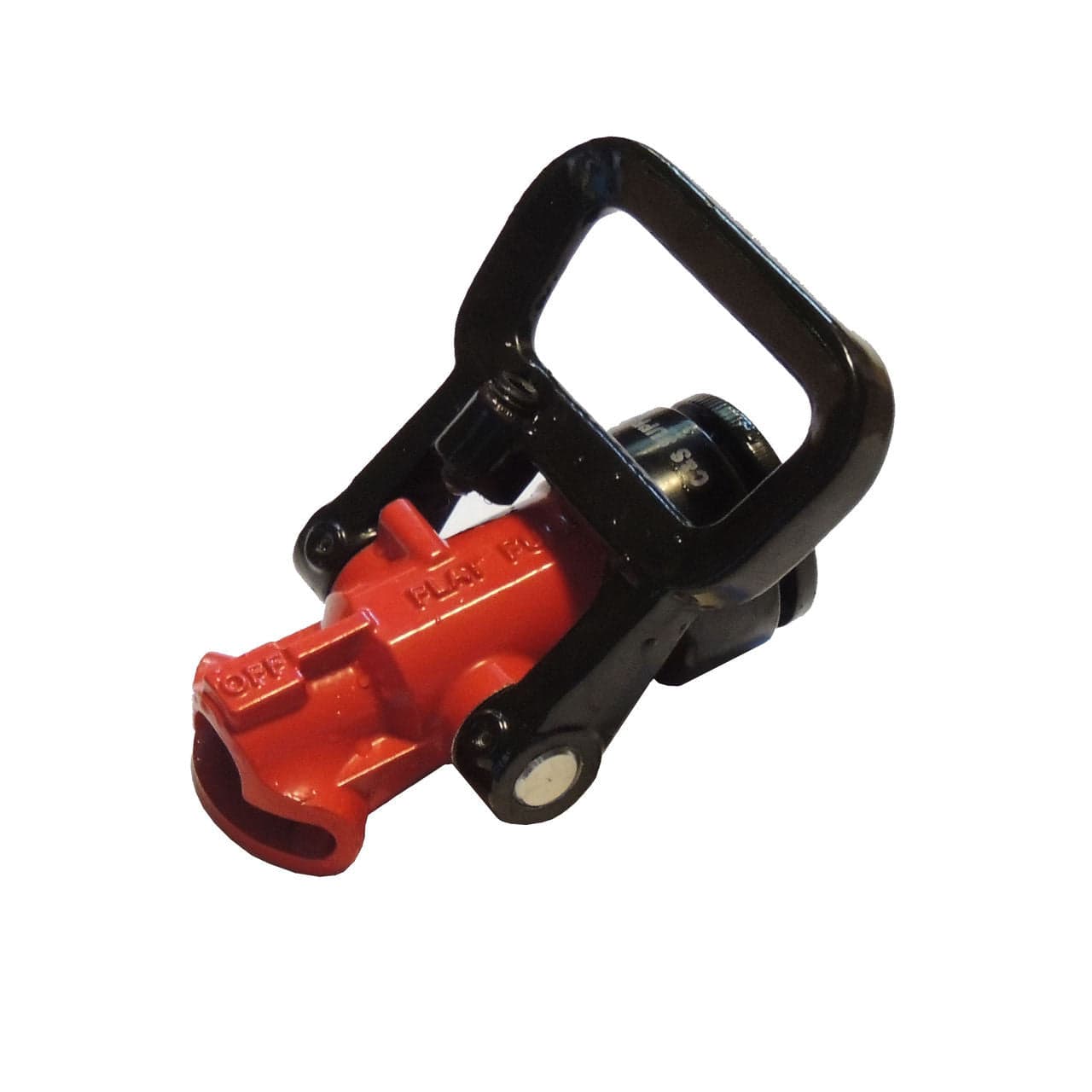

The C&S Supply 3/4" Smooth Bore Flat Stream Combination Nozzle is a compact, multi-purpose nozzle designed to provide both smooth bore and flat stream performance in a single lightweight package. Ideal for wildland firefighting, forestry, utility, and property protection applications, the FLT130 allows operators to quickly switch between a concentrated stream for reach and penetration or a wider flat stream for broader area coverage.
The smooth bore setting delivers up to 30 GPM at 100 PSI for increased reach and digging power, while the flat stream setting provides a controlled spray pattern for effective coverage and mop-up operations. Featuring a built-in shutoff and stream selector in one motion, the FLT130 offers simple operation in the field. A rigid 1" female NPSH inlet and included 3/4" GHT adapter insert provide flexible hose connection options for a variety of water delivery systems.
Features
• Combination smooth bore and flat stream nozzle design
• 30 GPM at 100 PSI in smooth bore mode
• 20 GPM at 100 PSI in flat stream mode
• Smooth bore setting provides greater reach and digging power
• Flat stream setting provides wider, controlled coverage
• Stream change and shutoff accomplished in one motion
• Compact design ideal for wildland and home protection applications
• Rigid 1" female NPSH inlet connection
• Includes 3/4" female GHT to 1" male NPSH adapter insert
• Maximum operating pressure of 250 PSI
• Lightweight and easy to handle
Specifications
• Manufacturer: C&S Supply
• Model: FLT130
• Product Type: Smooth Bore Flat Stream Combination Nozzle
• Flow Rate (Smooth Bore): 30 GPM @ 100 PSI (20 GPM @ 50 PSI)
• Flow Rate (Flat Stream): 20 GPM @ 100 PSI (15 GPM @ 50 PSI)
• Maximum Pressure: 250 PSI
• Inlet Connection: 1" Female NPSH (Rigid)
• Included Adapter: 3/4" Female GHT to 1" Male NPSH
• Weight: 0.80 lbs
• Length: 5"
• Application: Wildland Firefighting, Forestry, Utility, and Property Protection
