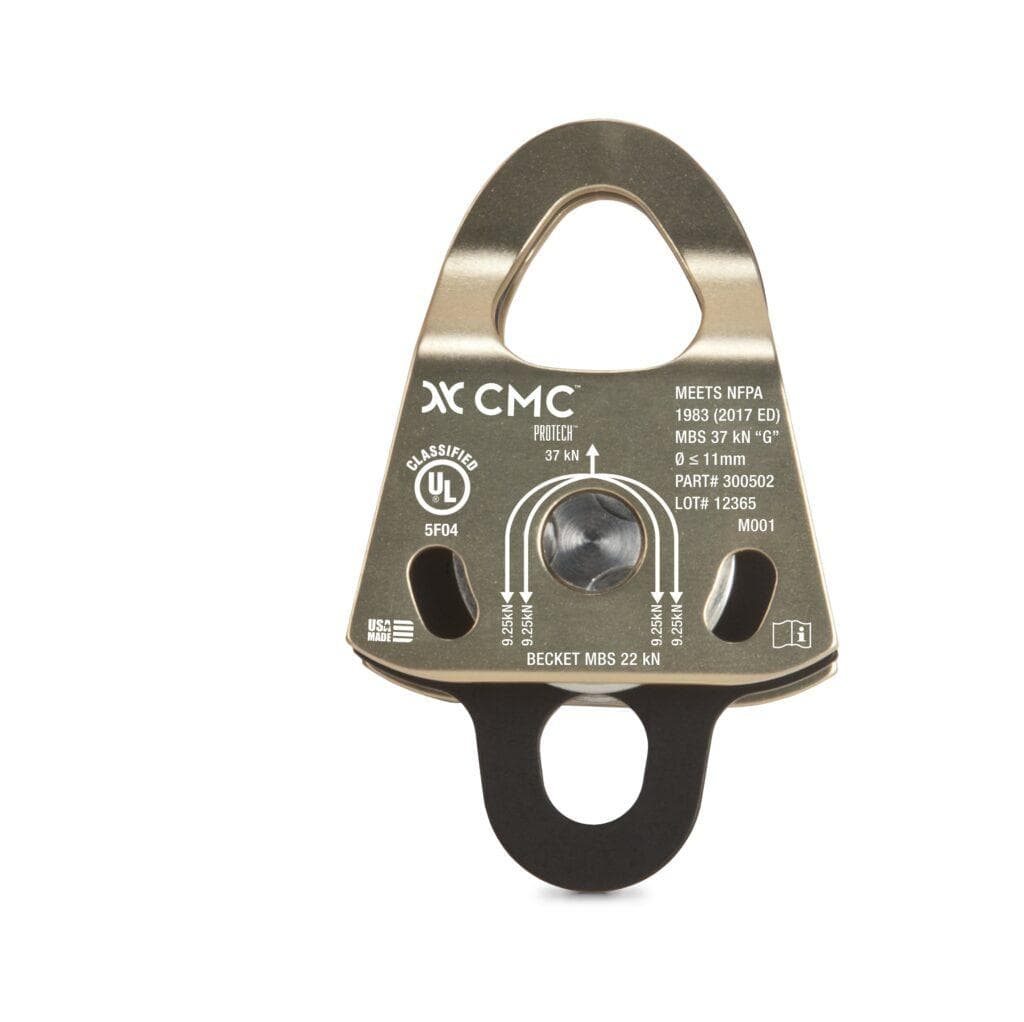

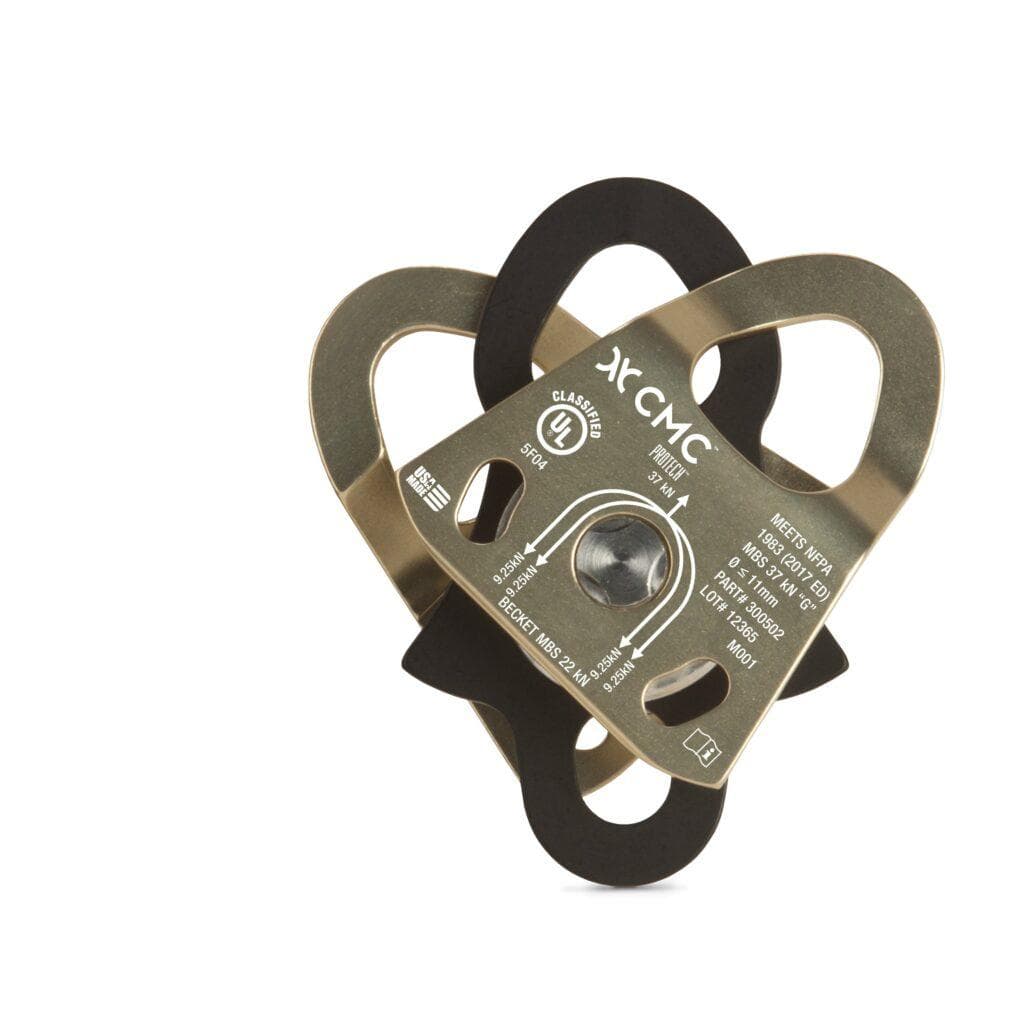

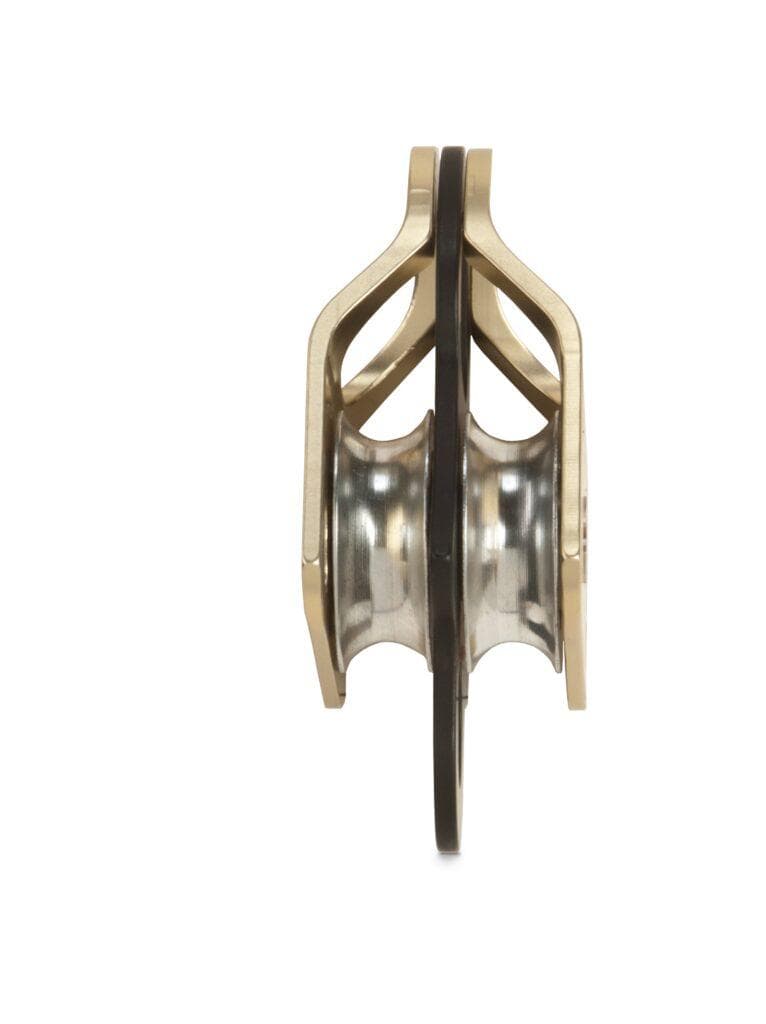

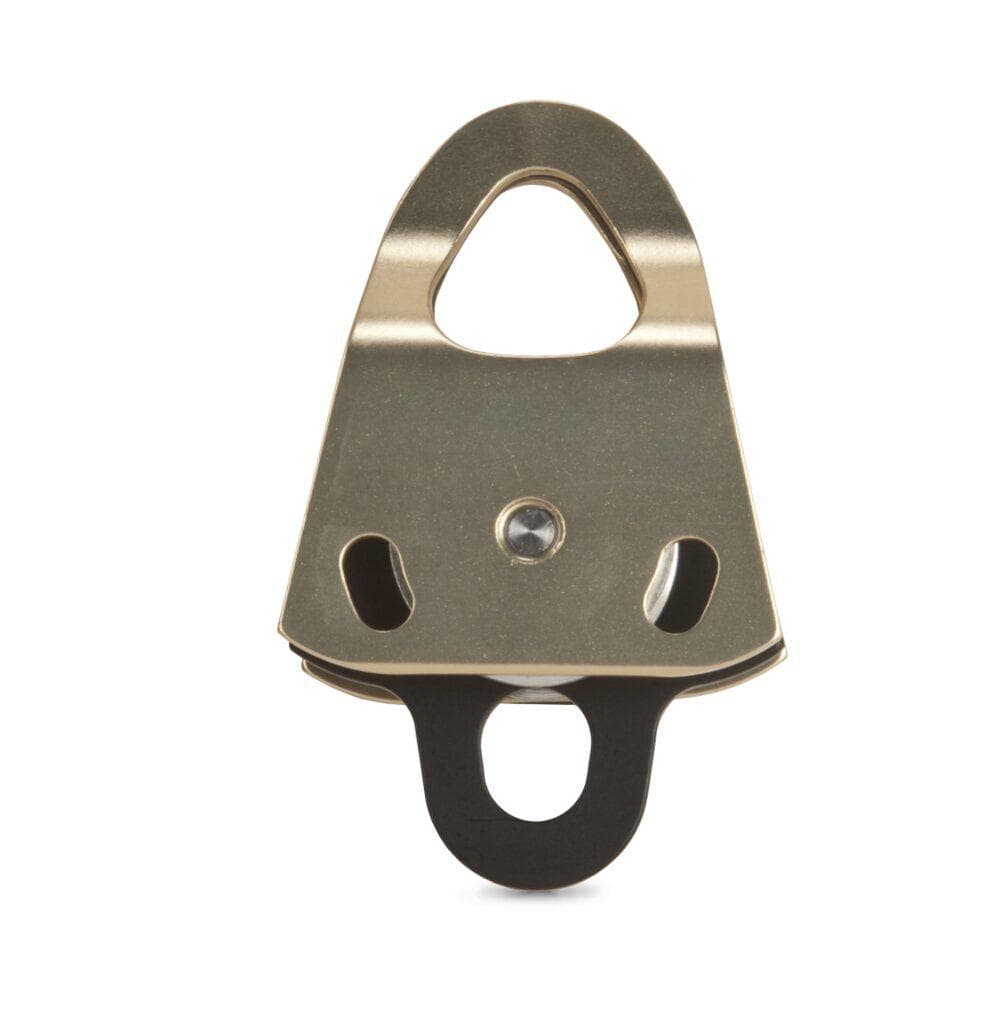

The PROTECH™ Double Pulley is a lightweight, full-strength Prusik-minding pulley designed for rescue, rope access, swift water, ski patrol, tower work, and other technical applications where reducing equipment weight is critical. Engineered with precision-machined side plates and low-profile stainless steel hardware, this pulley minimizes snagging while maintaining exceptional strength and durability in demanding environments.
Unlike traditional bent-side-plate pulleys, the PROTECH™ Double Pulley utilizes machined side plates that optimize material thickness for an outstanding strength-to-weight ratio. Its unique axle assembly creates a smooth profile while enhancing overall strength. Dual aluminum sheaves mounted on sealed ball bearings deliver high efficiency and smooth operation, making this pulley an excellent choice for compact mechanical advantage systems and block-and-tackle kits.
Features
• Lightweight design ideal for rescue, rope access, and technical rigging applications
• Precision-machined side plates maximize strength while reducing weight
• Low-profile stainless steel hardware helps prevent snagging on rocks, roots, and structures
• Prusik-minding design supports efficient mechanical advantage systems
• Unique axle assembly provides a smooth side plate profile and increased strength
• Dual aluminum sheaves mounted on sealed ball bearings for high efficiency
• Compatible with rope diameters up to 11 mm (7/16 in)
• Ideal for compact block-and-tackle and hauling systems
• NFPA General Use rated
Specifications
• Item Number: 300502
• Product Type: Double Pulley
• Weight: 5.5 oz (156 g)
• Maximum Rope Diameter: 11 mm (7/16 in)
• Sheave Configuration: Double
• Color: Sand
• NFPA Rating: General Use
• Minimum Breaking Strength (MBS): 36 kN (8,093 lbf)
