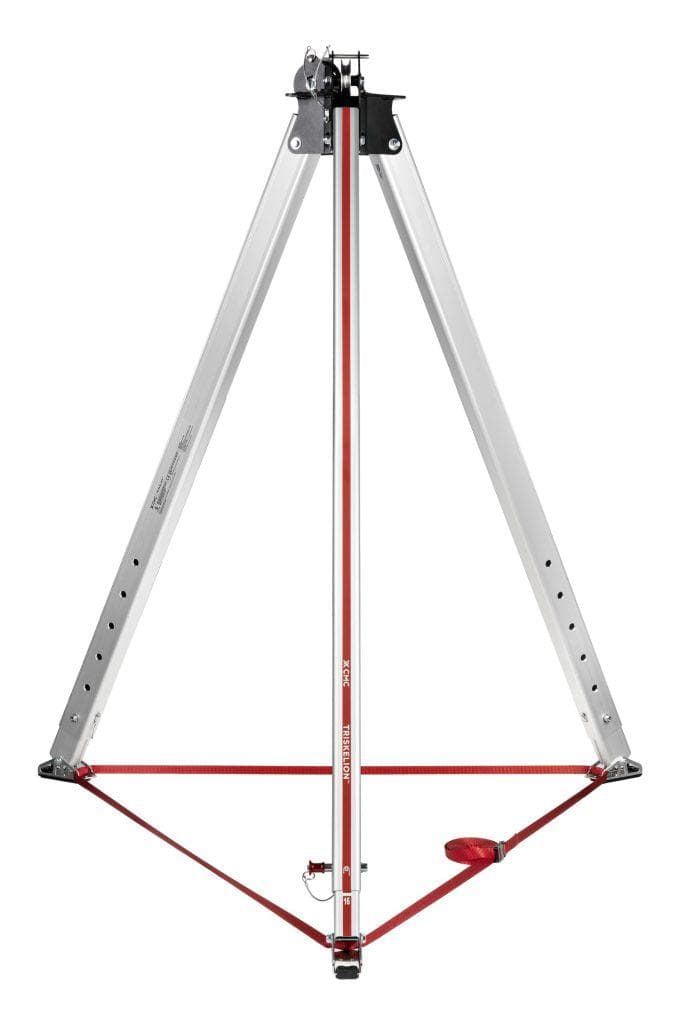

The CMC TRISKELION™ Tripod is a fully featured industrial rescue tripod engineered to provide exceptional versatility, rapid deployment, and user-friendly operation for confined space, industrial, and technical rescue applications. With an adjustable working height from 5.5 to 10 feet, multiple rigging options, integrated pulleys, and certifications to both NFPA and EN standards, the TRISKELION™ sets a new benchmark for rescue tripod performance and efficiency.
Designed with direct input from rescue professionals, the TRISKELION™ combines innovative features with rugged construction to improve both safety and operational effectiveness. Its wide working height range accommodates low-clearance environments while still providing sufficient clearance for hauling personnel in harnesses or full-size litters. Integrated pulleys, multiple anchor points, winch mounting options, pivoting feet, and high-visibility markings make the system adaptable to a wide variety of rescue and access scenarios. The included carry bag, hobble strap, and leg strap ensure the tripod is ready for deployment whenever and wherever it is needed.
Features
• Adjustable working height from 5.5 ft to 10 ft
• NFPA General Use and EN-certified rescue tripod design

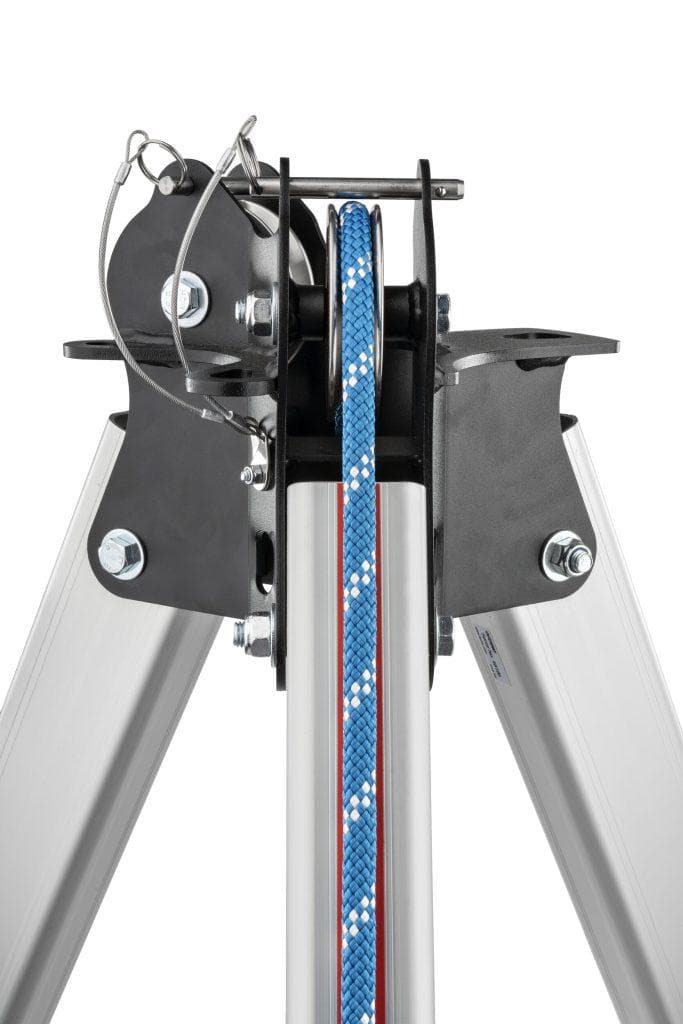

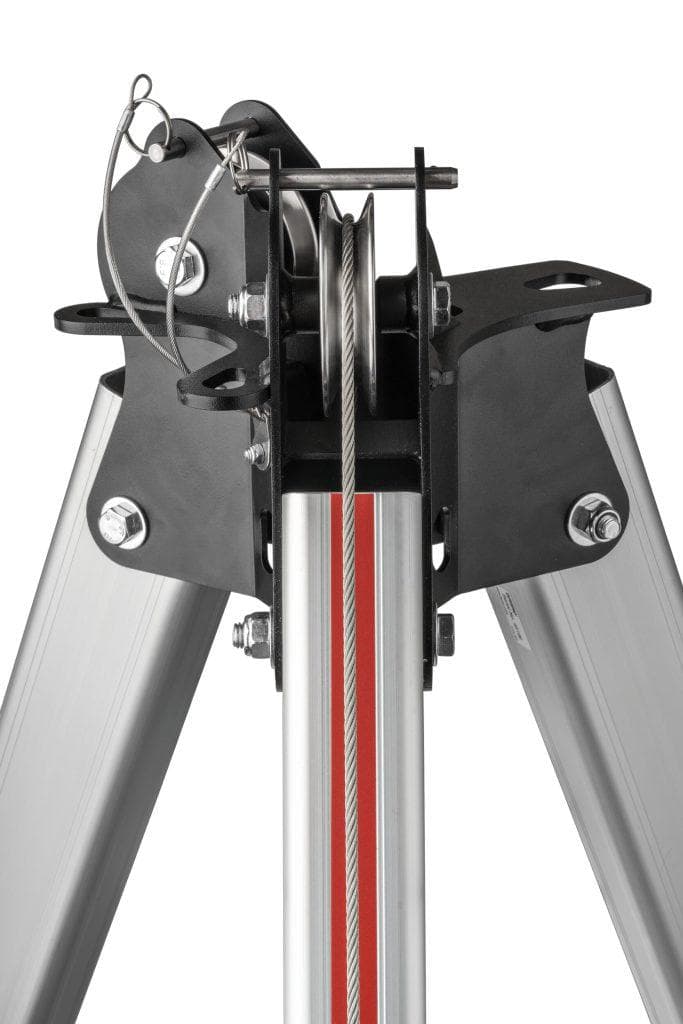

• Two integrated stainless steel head-mounted pulleys compatible with rope and cable up to 13 mm (1/2")
• Three side-plate anchor points for mechanical advantage systems and advanced rigging
• Three additional tie-off points for stabilization and rigging flexibility
• Compatible with Harken LokHead Winch and 3M DBI/SALA Salalift II Winch mounting systems
• Rectangular leg design prevents rotation and maintains proper alignment
• Built-in leg stoppers prevent accidental leg separation during full extension
• 4-inch leg adjustment increments for precise height control in restricted spaces

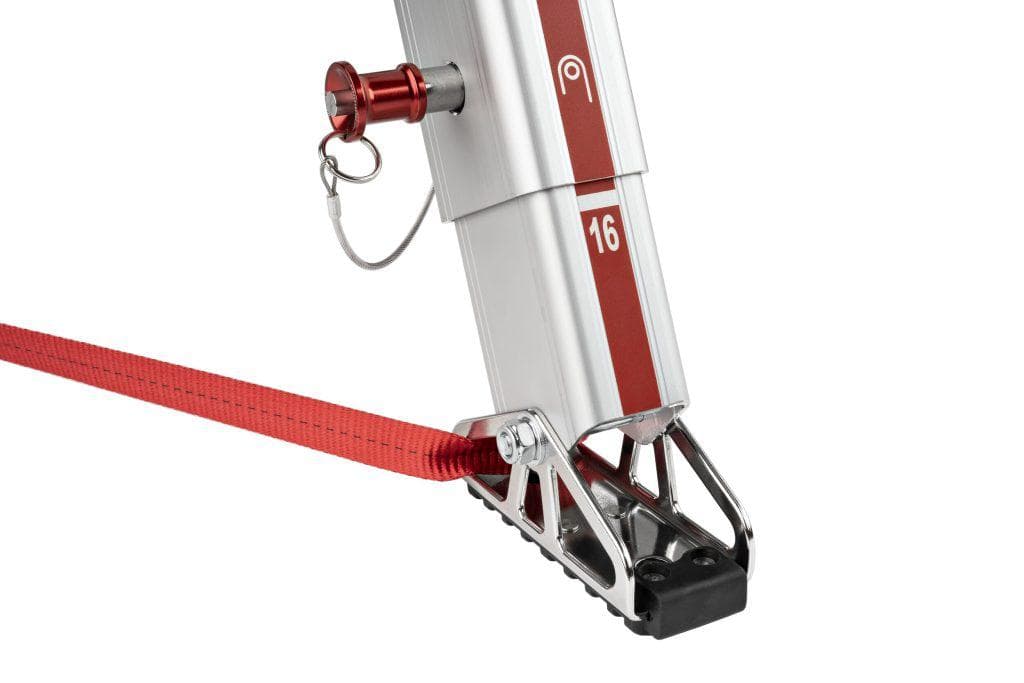

• Large quick-action ball-lock push pins for rapid setup, even while wearing gloves
• Tethered pins reduce the risk of loss during deployment

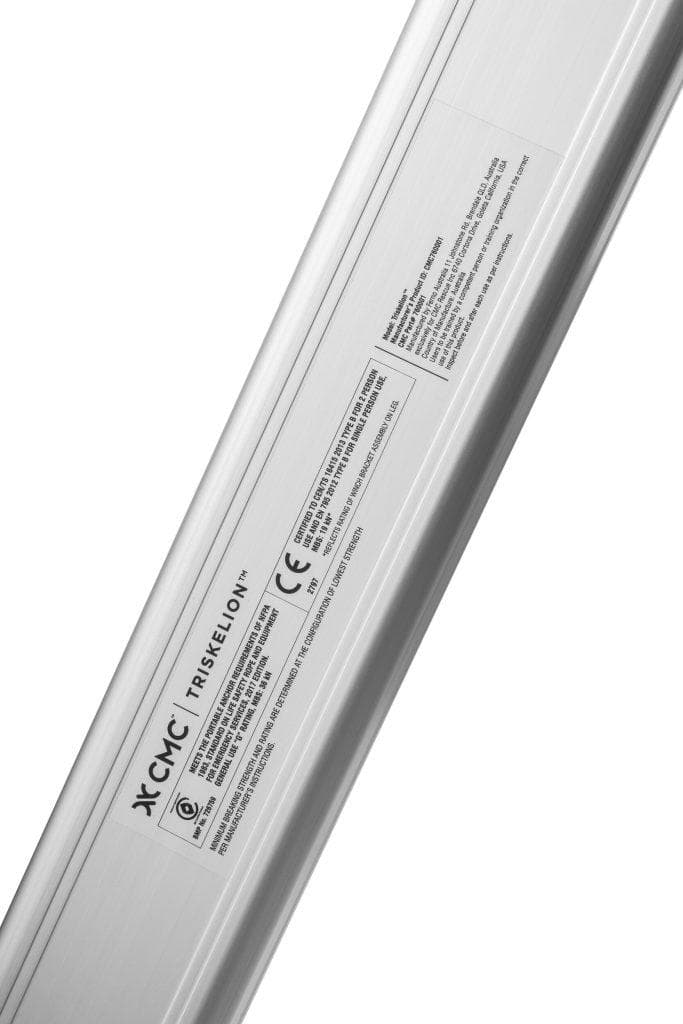

• High-contrast graphics and leg height markings improve visibility and communication

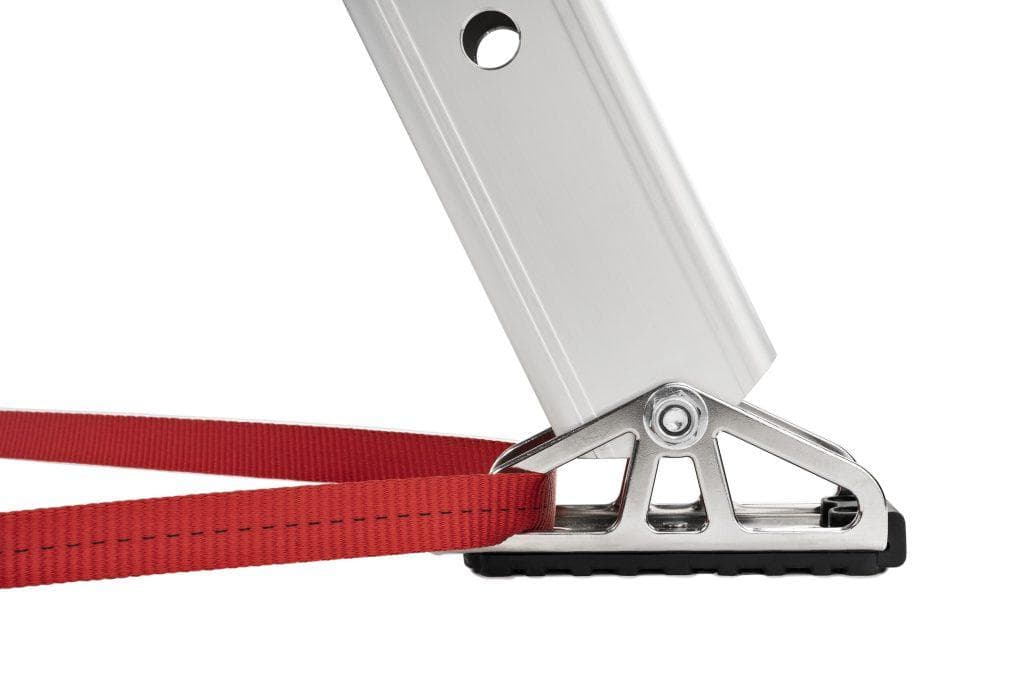

• Pivoting feet adapt to uneven surfaces and varying terrain angles

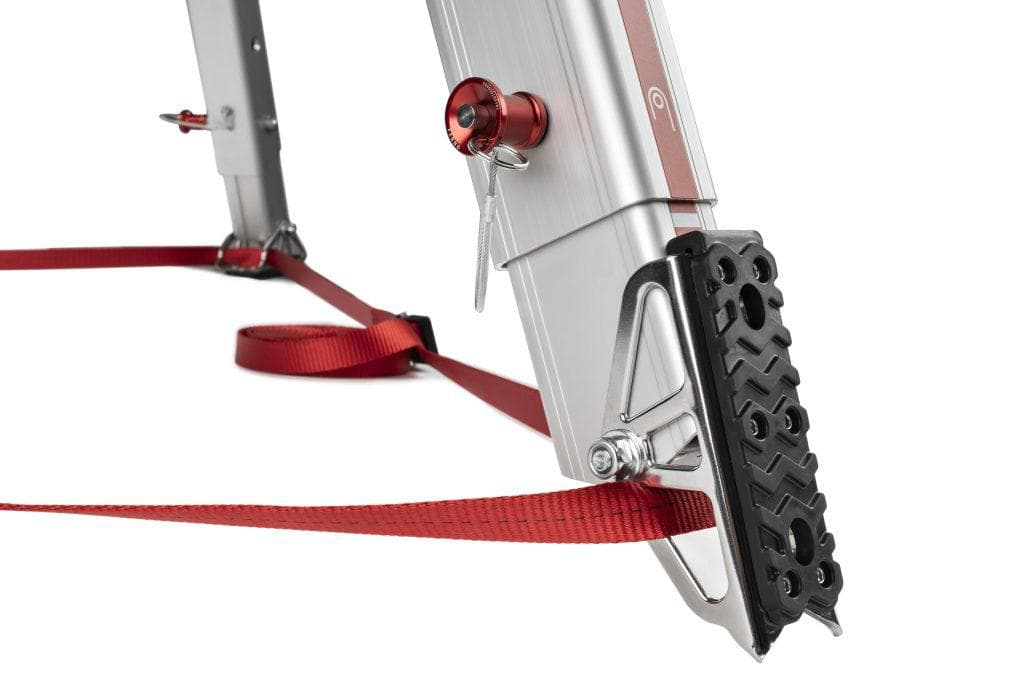

• Non-slip tread for hard surfaces and integrated spikes for soft ground conditions

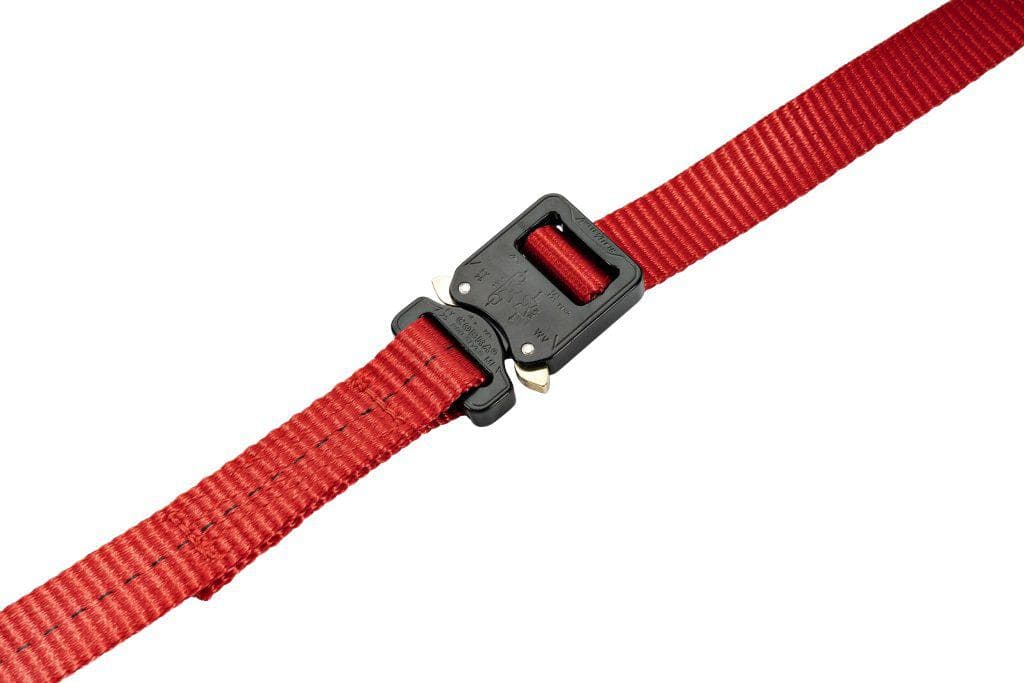

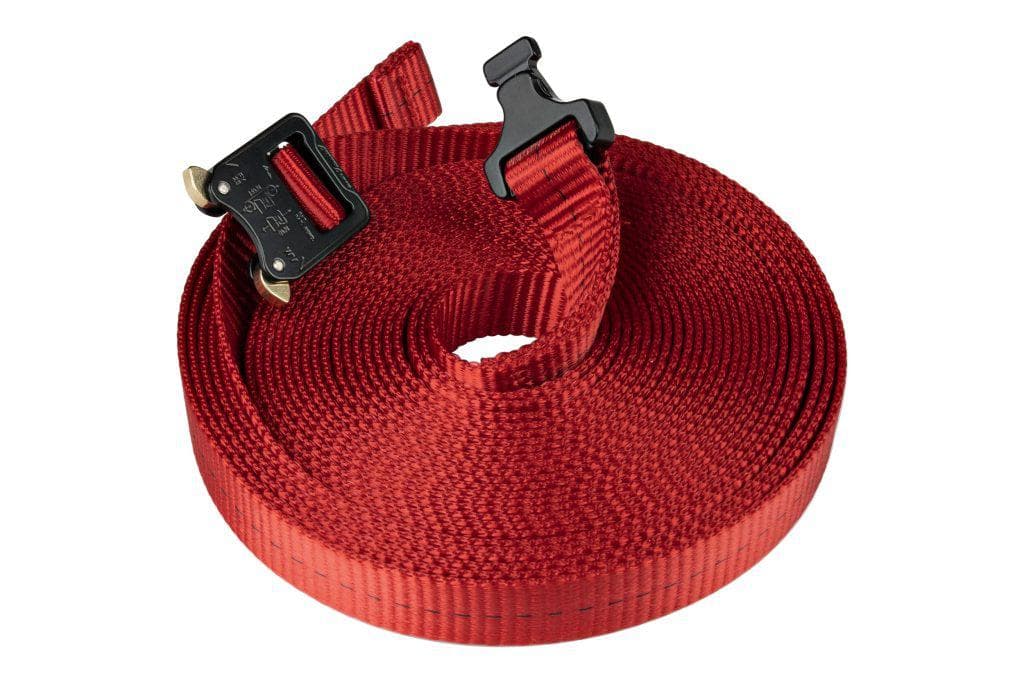

• Red quick-connect hobble strap secures all three legs with a Cobra buckle system
• Reinforced carry bag designed for one- or two-person transport
• Optimized for confined space rescue, industrial rescue, rope access, and technical rescue operations

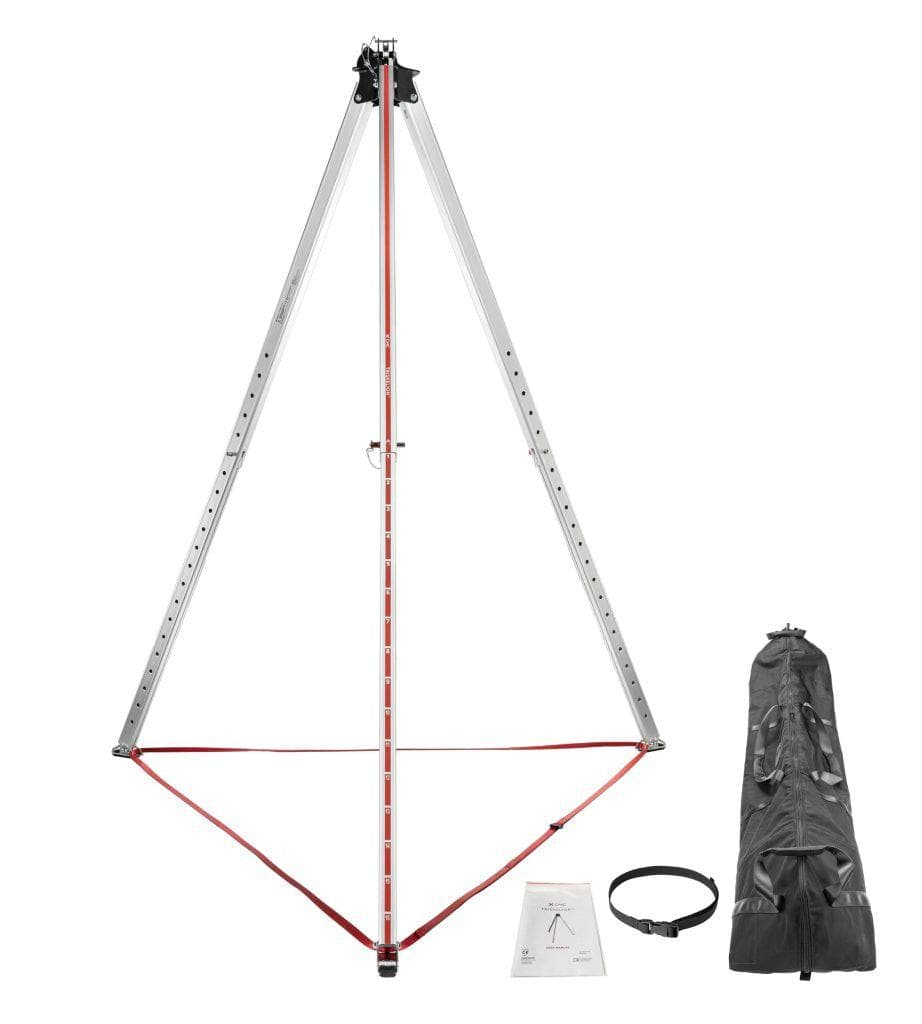

Included Components

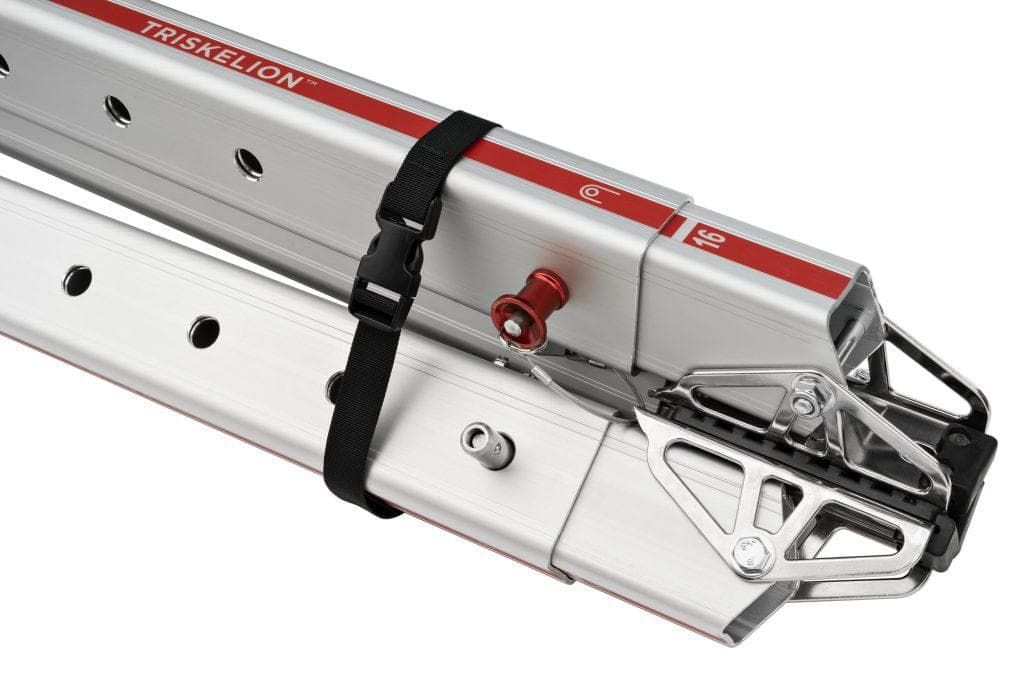

• TRISKELION™ Tripod
• Hobble Strap
• Carry Bag

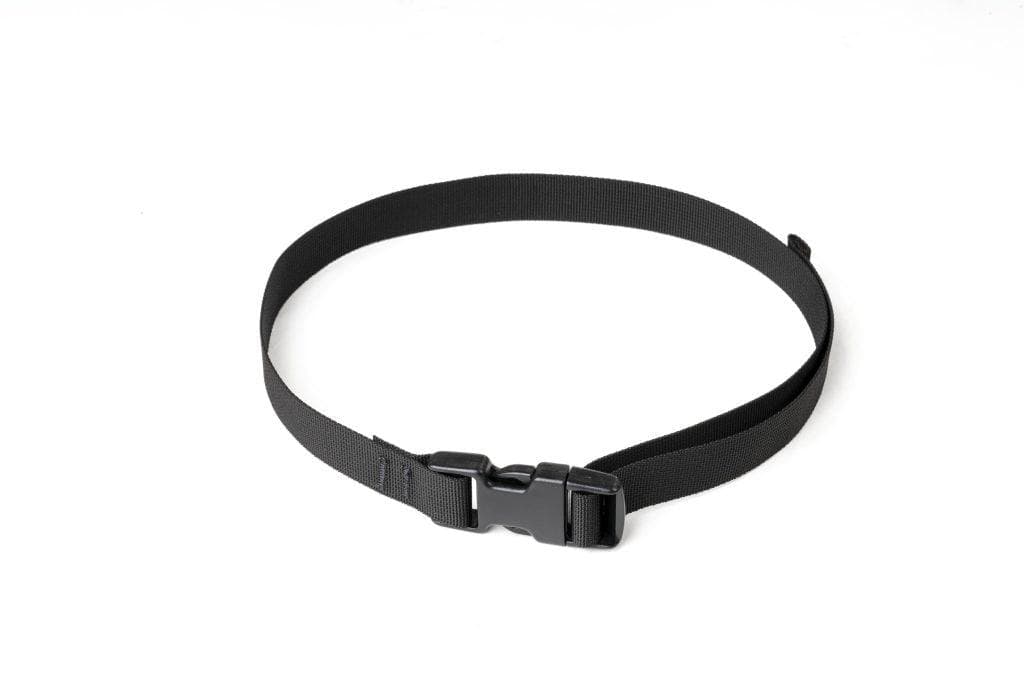

• Leg Strap
• User Manual
Specifications
• Manufacturer: CMC
• Product Type: Industrial Rescue Tripod
• Model: TRISKELION™ Tripod
• Minimum Working Height: 5.5 ft (1.7 m)
• Maximum Working Height: 10 ft (3.0 m)
• Weight: 70 lb (32 kg)
• Packed Length: 7 ft (2.1 m)
• Packed Width: 1 ft (0.3 m)
• Packed Height: 1 ft (0.3 m)
Tripod Footprint
• Inside Diameter at Minimum Height: 62.2 in (158 cm)
• Inside Diameter at Maximum Height: 111 in (282 cm)
• Outside Diameter at Minimum Height: 76 in (193 cm)
• Outside Diameter at Maximum Height: 124.8 in (317 cm)
Strength Ratings
• MBS Attached Directly to Head: 36 kN (8,093 lbf)
• MBS Attached to Leg Over Pulley: 22 kN (4,946 lbf)
Certifications
• NFPA General Use Rated
• EN 795:2012 Type B for Single-Person Use
• CEN/TS 16415:2013 Type B for Two-Person Use
