The Electric Vehicle Battery Cooling Unit - 4' x 8' Coverage is designed to help firefighters cool hard-to-reach areas beneath electric vehicles, particularly battery systems that may be susceptible to thermal runaway and re-ignition. The unit delivers water beneath the vehicle to provide targeted cooling during electric vehicle fire response operations.

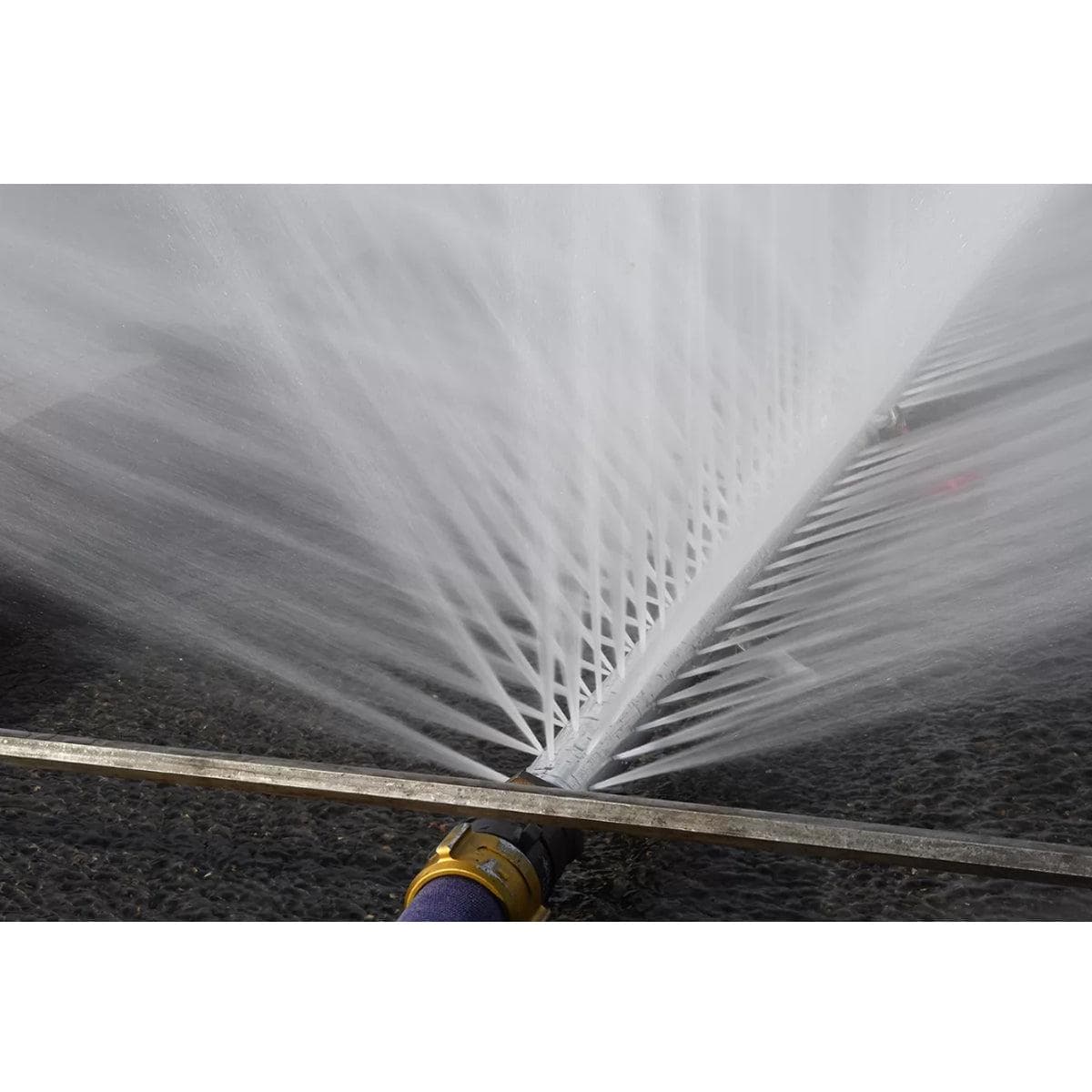

Designed for compatibility with conventional fire hose equipment, the unit uses an NHT 1-1/2" double female coupling and operates at approximately 40–60 GPM. With 83 spray holes, it provides approximately 4' x 8' of coverage at a vehicle ground clearance of 5-1/2". Its low-profile design allows it to reach beneath vehicles while providing an efficient cooling solution with relatively low water consumption.
Features
• Designed for cooling electric vehicle battery areas
• Helps address thermal runaway and re-ignition concerns during EV fire response
• Delivers water to hard-to-reach areas underneath vehicles

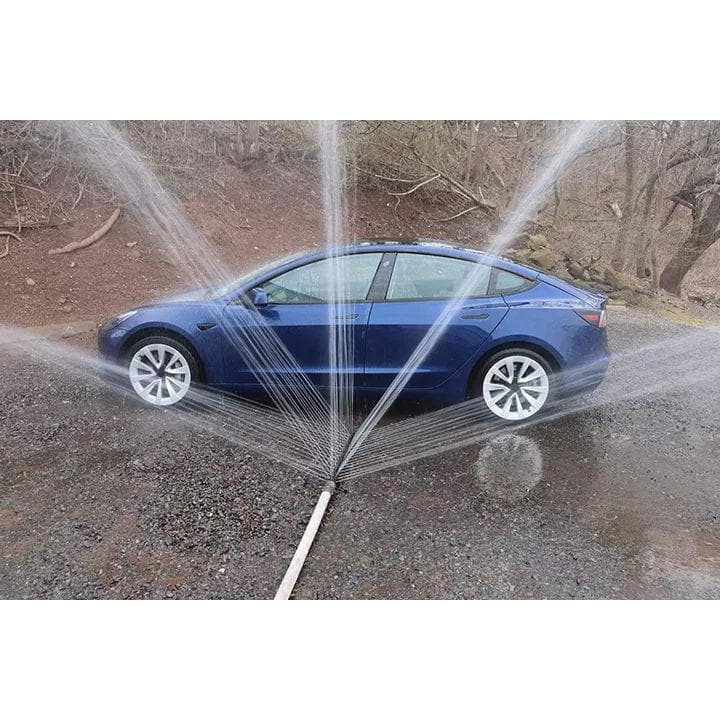

• Provides 4' x 8' coverage at 5-1/2" vehicle ground clearance
• 83 spray holes provide distributed water application
• Operates at approximately 40–60 GPM
• Uses as little as 40 gallons of water per minute
• Low-profile design works with vehicles with 5-1/2" ground clearance
• Compatible with conventional fire hose equipment
• NHT 1-1/2" double female coupling
• Durable construction for demanding firefighting operations
• Designed to provide an efficient and cost-effective EV battery cooling solution
• Includes tube, female double swivel coupling, and end cap
Specifications
• Manufacturer: Ziamatic
• Product Type: Electric Vehicle Battery Cooling Unit
• Coverage Area: 4' x 8'
• Vehicle Ground Clearance: 5-1/2"
• Flow Rate: 40–60 GPM
• Number of Spray Holes: 83
• Coupling: NHT 1-1/2" Double Female
• Application: Electric Vehicle Battery Cooling
• Included Components: One Tube, One Female Double Swivel Coupling, and One End Cap
