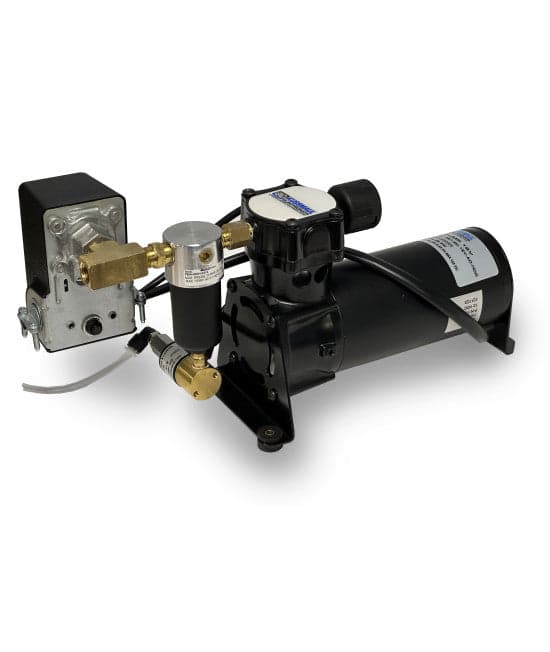

The Kussmaul Auto Pump® 12V with Auto Drain is a compact, vehicle-mounted air compressor designed to maintain air pressure in the air brake systems of fire apparatus, rescue vehicles, and other heavy-duty vehicles while they are parked. The system automatically monitors air pressure and activates the compressor when pressure drops, helping keep the vehicle ready for immediate dispatch and reducing delays caused by low air brake system pressure.
A pressure switch automatically starts the compressor when system pressure drops to 75 PSI and shuts it off when pressure reaches 95 PSI. The compressor operates independently without interfering with the vehicle's engine-mounted air compressor and delivers up to 0.30 SCFM at 80 PSI and 0.35 SCFM at 60 PSI.
An integrated Auto Drain system uses a normally open solenoid valve to automatically remove accumulated moisture from the filter bowl each time the compressor shuts down. This helps keep the moisture trap drained without requiring routine intervention by maintenance personnel. Sealed ball bearings are lubricated for life to provide reliable operation with minimal maintenance requirements.
Available in horizontal and vertical mounting configurations, the Auto Pump® 12V with Auto Drain provides a compact and dependable solution for maintaining air brake system pressure and improving emergency vehicle readiness.
Features
• Vehicle-mounted 12 VDC air compressor for maintaining air brake system pressure
• Helps keep emergency vehicles properly pressurized and ready for immediate dispatch
• Pressure switch automatically activates the compressor when system pressure drops
• Factory-set pressure switch turns the compressor ON at 75 PSI and OFF at 95 PSI
• 20 PSI pressure differential with a maximum pressure of 100 PSI
• Integrated 15-amp circuit breaker installed in the pressure switch
• Delivers 0.30 SCFM at 80 PSI and 0.35 SCFM at 60 PSI
• Integrated Auto Drain system automatically removes moisture from the filter bowl
• Normally open solenoid valve drains accumulated moisture each time the compressor shuts down
• Auto Drain operation requires no routine intervention by maintenance personnel
• Operates without interfering with the vehicle's engine-mounted air compressor
• Sealed ball bearing construction provides long service life
• Bearings are lubricated for life for minimal maintenance requirements
• Compact design supports installation where vehicle mounting space is limited
• Available in horizontal and vertical mounting configurations
• Ideal for fire apparatus, rescue vehicles, and other vehicles equipped with air brake systems
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Vehicle-Mounted Air Compressor with Automatic Drain
• Model: Auto Pump® 12V with Auto Drain
• Base Part Number: 091-9C-12V-AD
• Horizontal Mount Part Number: 091-9C-12V-AD-HOR
• Vertical Mount Part Number: 091-9C-12V-AD-VER
• Input Voltage: 12 VDC
• Maximum Input Current: 11 Amps
• Maximum Pressure: 100 PSI
• Factory-Set Pressure Switch ON Point: 75 PSI
• Factory-Set Pressure Switch OFF Point: 95 PSI
• Pressure Differential: 20 PSI
• Air Output at 80 PSI: 0.30 SCFM
• Air Output at 60 PSI: 0.35 SCFM
• Circuit Protection: 15-Amp Circuit Breaker
• Auto Drain: Included
• Mounting Orientations: Horizontal or Vertical
• Weight: 6 lbs.
