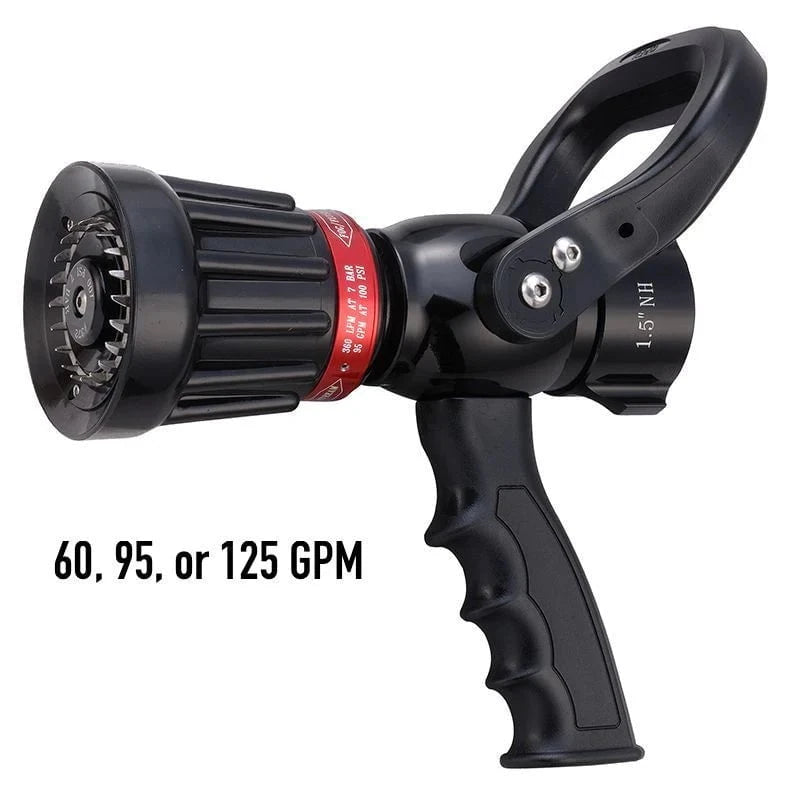

The 1-1/2" Constant Gallonage Nozzle is a fixed-flow combination nozzle designed to provide consistent water delivery and dependable firefighting performance. Supplied with a calibrated flow disc installed and preset to 125 GPM, this nozzle delivers effective fire attack capabilities while producing a wide, dense fog pattern for enhanced firefighter protection and exposure coverage.
Built with durable, precision-machined components, the nozzle features stainless steel spinning teeth for superior fog pattern performance, an ergonomic pistol grip for improved handling, and a heavy-duty chrome-plated shutoff ball for smooth operation and long service life. The nozzle can be flushed without changing the stream pattern or shutting down water flow, while a stainless steel filter mesh helps prevent debris-related blockages. Its rugged construction ensures reliable performance with minimal maintenance requirements.
Features
• Constant gallonage nozzle with calibrated flow disc installed
• Preset to 125 GPM flow rate
• Available flow rates of 60, 95, or 125 GPM
• Wide, dense fog pattern for enhanced firefighter protection
• Stainless steel spinning teeth for superior fog pattern performance
• Custom flow and pressure combinations available
• Flow pattern detents provide positive positioning and smooth adjustment
• Laser-etched anodized label for enhanced durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip for improved handling and control
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Stainless steel filter mesh helps prevent debris blockages
• Precision-machined components require minimal maintenance
• Compatible with Foam Aeration Tube 1212
• NFPA 1964 compliant
Specifications
• Model: 1372
• Product Type: Constant Gallonage Combination Nozzle
• Preset Flow Rate: 125 GPM (475 LPM)
• Available Flow Rates: 60, 95, or 125 GPM (230, 360, or 475 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Size: 1-1/2" (38 mm)
• Teeth Type: Stainless Steel Spinning
• Length: 8.5" (216 mm)
• Weight: 3.6 lbs. (1.6 kg)
• Foam Tube Compatibility: 1212
• Compliance: NFPA 1964
