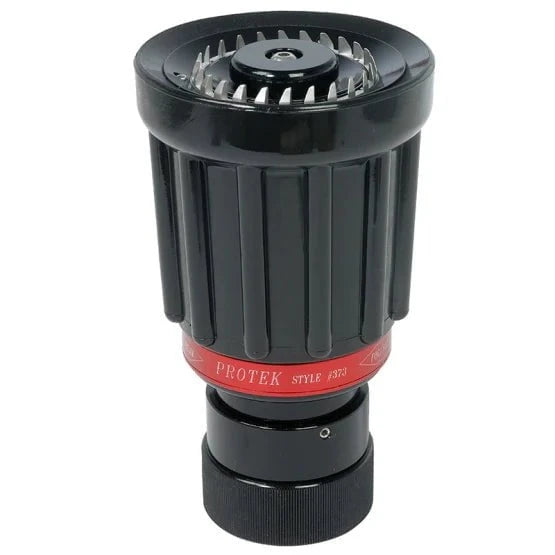

The 1-1/2" Constant Gallonage Nozzle Tip Only is designed to provide dependable fixed-flow performance for compatible nozzle bodies and shutoff assemblies. Preset to 200 GPM, this combination-pattern nozzle tip delivers consistent water flow while producing a wide, dense fog pattern for effective fire suppression and enhanced firefighter protection.
Constructed from durable alloy materials, the nozzle tip features spinning teeth that create a highly effective fog pattern and smooth transitions between straight stream and fog settings. Flow pattern detents provide positive positioning during operation, while raised pattern identification lugs and laser-etched markings allow for quick and easy adjustments. Precision-machined components ensure reliable operation with minimal maintenance requirements.
Features
• Constant gallonage nozzle tip design
• Preset to 200 GPM flow rate
• Available flow rates of 150, 175, or 200 GPM
• Wide, dense fog pattern for enhanced firefighter protection
• Spinning teeth for superior fog pattern performance
• Adjustable straight stream and fog pattern operation
• Flow pattern detents provide positive positioning and smooth adjustment
• Raised lug for easy pattern identification while wearing gloves
• Laser-etched anodized label for durability and visibility
• Precision-machined components for reliable performance
• Low-maintenance construction
Specifications
• Model: 1373TO
• Product Type: Constant Gallonage Nozzle Tip Only
• Preset Flow Rate: 200 GPM (750 LPM)
• Available Flow Rates: 150, 175, or 200 GPM (550, 660, or 750 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Size: 1-1/2" (38 mm)
• Teeth Type: Spinning
• Material: Alloy
• Length: 7.4" (188 mm)
• Weight: 3.3 lbs. (1.5 kg)
