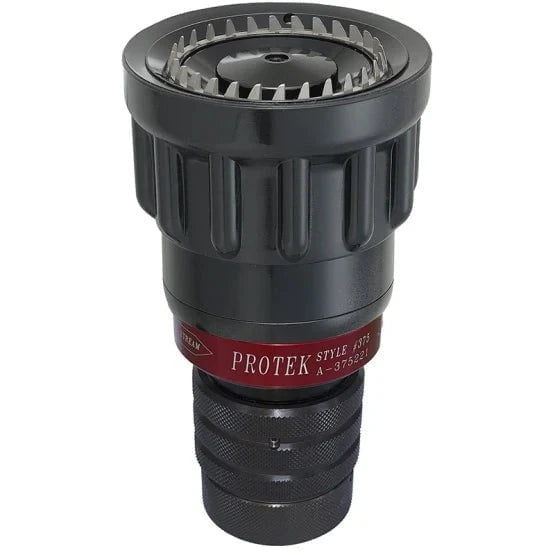

The 1-1/2" Constant Gallonage Nozzle Tip Only is designed to provide reliable fixed-flow performance for compatible nozzle bodies and shutoff assemblies. Preset to 250 GPM, this nozzle tip delivers a consistent flow rate while producing a wide, dense fog pattern for effective fire suppression and firefighter protection.
Constructed from durable alloy materials, the nozzle tip features spinning teeth that create a highly effective fog pattern and smooth stream transitions. Flow pattern detents provide positive positioning during operation, while raised pattern identification lugs and laser-etched markings allow for easy adjustment and identification, even in challenging firefighting conditions. Its rugged construction and precision-machined components ensure dependable operation with minimal maintenance requirements.
Features
• Constant gallonage nozzle tip design
• Preset to 250 GPM flow rate
• Available flow rates of 200, 250, 300, or 350 GPM
• Wide, dense fog pattern for enhanced firefighter protection
• Spinning teeth for superior fog pattern performance
• Adjustable straight stream and fog pattern operation
• Flow pattern detents provide positive positioning and smooth adjustment
• Raised lug for easy pattern identification while wearing gloves
• Laser-etched anodized label for durability and visibility
• Precision-machined components for reliable performance
• Low-maintenance construction
Specifications
• Model: 1375TO
• Product Type: Constant Gallonage Nozzle Tip Only
• Preset Flow Rate: 250 GPM (950 LPM)
• Available Flow Rates: 200, 250, 300, or 350 GPM (750, 950, 1140, or 1325 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Size: 1-1/2" (38 mm)
• Teeth Type: Spinning
• Material: Alloy
• Length: 8.8" (223 mm)
• Weight: 5.1 lbs. (2.3 kg)
