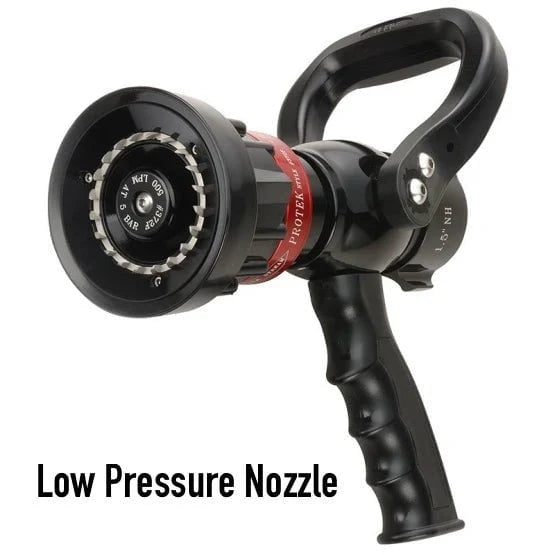

The 1-1/2" Low-Pressure Constant Gallonage Nozzle is designed to provide consistent flow performance while operating at a reduced nozzle pressure of 75 PSI. Preset to 125 GPM, this nozzle helps reduce nozzle reaction, operator fatigue, and strain on pumping systems, making it an excellent choice for modern low-pressure firefighting operations.
Featuring a durable molded bumper with an integrated shock absorber, the nozzle transitions efficiently between straight stream and fog patterns with a smooth 120° rotation. Enhanced flow selection and shutoff controls provide positive operation, while the ergonomic pistol grip improves handling and comfort. The nozzle's lightweight alloy construction, spinning teeth, and flush capability ensure dependable performance with minimal maintenance requirements.
Features
• Constant gallonage nozzle designed for low-pressure operation
• Preset to 125 GPM flow rate
• Available flow rates of 60, 95, 125, or 150 GPM
• Operates at 75 PSI to reduce nozzle reaction and operator fatigue
• Helps reduce pressure demands on pumping systems
• Shock absorber integrated into the bumper for increased durability
• Efficient 120° bumper rotation from straight stream to fog pattern
• Enhanced flow selection ring and ball-valve shutoff operation
• Laser-etched anodized label for durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip available in multiple colors
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Stainless steel filter mesh helps prevent debris blockages
• Precision-machined components require minimal maintenance
Specifications
• Model: 1372F
• Product Type: Low-Pressure Constant Gallonage Combination Nozzle
• Preset Flow Rate: 125 GPM (470 LPM)
• Available Flow Rates: 60, 95, 125, or 150 GPM (230, 360, 470, or 570 LPM)
• Operating Pressure: 75 PSI (5 BAR)
• Inlet Size: 1-1/2" (38 mm)
• Teeth Type: Spinning
• Material: Alloy
• Length: 8.5" (216 mm)
• Weight: 3.5 lbs. (1.6 kg)
