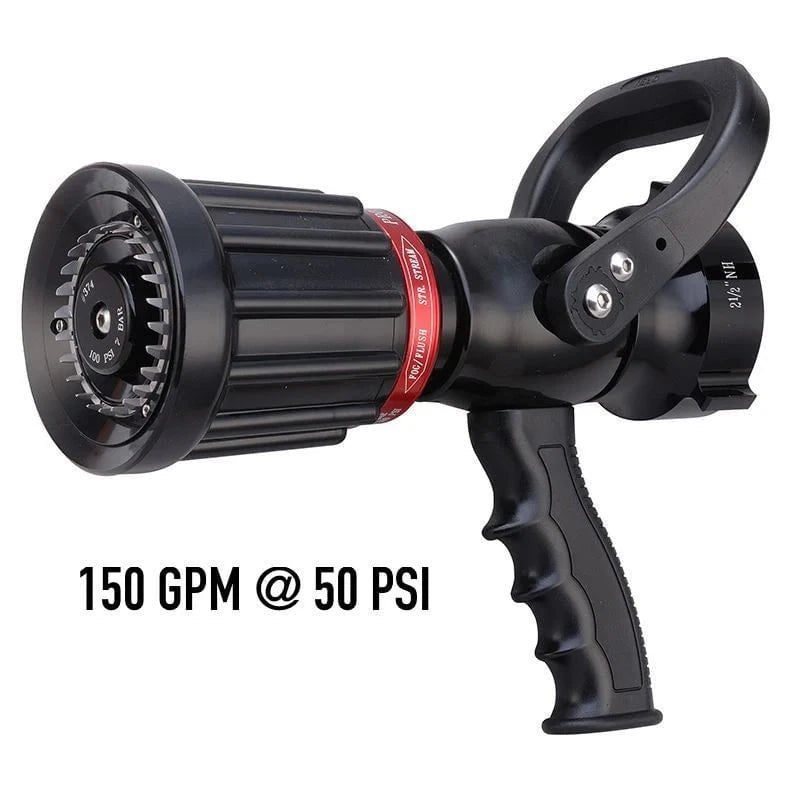

The 1-1/2" Low Pressure Constant Gallonage Nozzle with Pistol Grip – 150 GPM @ 50 PSI is designed to deliver a consistent flow rate while reducing nozzle reaction and firefighter fatigue through low-pressure operation. Factory configured to flow 150 GPM at 50 PSI, this nozzle provides excellent fire attack performance while supporting modern low-pressure hose and pump operations.
Featuring a calibrated flow disc, spinning teeth, and a wide adjustable fog pattern, the nozzle offers effective firefighter protection and versatile stream control. The ergonomic pistol grip improves handling and maneuverability, while the heavy-duty chrome-plated shutoff ball and stainless steel filter mesh ensure dependable performance in demanding firefighting environments. Its flush capability allows debris to be cleared without shutting down water flow or changing the stream pattern.
Features
• Constant gallonage nozzle with calibrated flow disc installed
• Factory configured for 150 GPM at 50 PSI operation
• Low-pressure design helps reduce nozzle reaction
• Wide, dense fog pattern for enhanced firefighter protection
• Adjustable straight stream and fog pattern operation
• Spinning teeth for superior fog pattern performance
• Flow pattern detents provide positive positioning and smooth adjustment
• Laser-etched anodized label for enhanced durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip available in multiple colors
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Stainless steel filter mesh helps prevent debris blockages
• Precision-machined components require minimal maintenance
Specifications
• Model: 1374LP
• Product Type: Low Pressure Constant Gallonage Combination Nozzle
• Flow Rate: 150 GPM (550 LPM)
• Operating Pressure: 50 PSI (3.5 BAR)
• Inlet Size: 1-1/2" (38 mm)
• Teeth Type: Spinning
• Material: Alloy
• Length: 11" (279 mm)
• Weight: 6.2 lbs. (2.8 kg)
