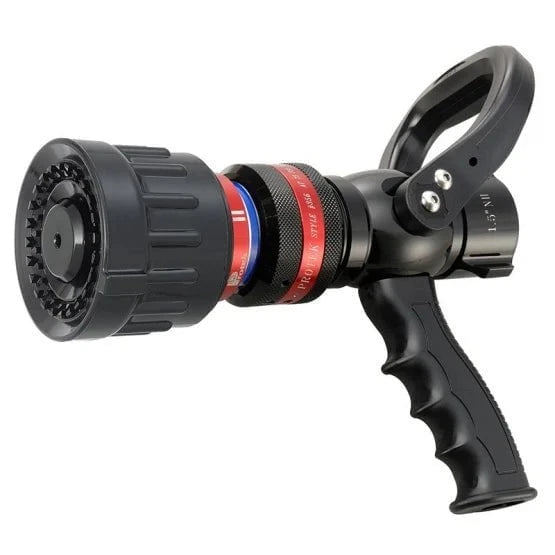

The 1-1/2" Low-Pressure Selectable Gallonage Nozzle is engineered to provide exceptional flexibility and firefighting performance while operating at a reduced pressure of 75 PSI. Featuring five selectable flow settings, this nozzle allows firefighters to quickly adjust water delivery to match changing fire conditions while minimizing nozzle reaction, reducing operator fatigue, and lowering pressure demands on pumping systems.
Designed for reliability and ease of use, the nozzle incorporates a shock-absorbing bumper, positive flow selection controls, and a heavy-duty chrome-plated shutoff ball for smooth operation and long service life. The efficient 120° bumper rotation allows quick transitions between straight stream and fog patterns, while the ergonomic pistol grip enhances handling and control. Compatible with a foam aeration tube, this nozzle is well suited for structural firefighting, exposure protection, and foam applications.
Features
• Low-pressure operation at 75 PSI helps reduce nozzle reaction and firefighter fatigue
• Selectable flow rates of 30, 60, 95, 125, and 150 GPM
• Helps reduce pressure demands on pumping systems
• Shock absorber integrated into the bumper for increased durability
• Efficient 120° bumper rotation from straight stream to fog pattern
• Enhanced flow selection ring for positive flow setting engagement
• Enhanced ball-valve shutoff operation
• Laser-etched anodized label for enhanced durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip available in multiple colors
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Stainless steel filter mesh helps prevent debris blockages
• Precision-machined components require minimal maintenance
• Compatible with Foam Aeration Tube 1209
Specifications
• Product Type: Low-Pressure Selectable Gallonage Combination Nozzle
• Flow Rates: 30, 60, 95, 125, and 150 GPM (115, 230, 360, 475, and 570 LPM)
• Operating Pressure: 75 PSI (5 BAR)
• Inlet Size: 1-1/2" (38 mm)
• Teeth Type: Fixed
• Material: Alloy
• Length: 10.5" (267 mm)
• Weight: 5.3 lbs. (2.4 kg)
• Foam Tube Compatibility: 1209
