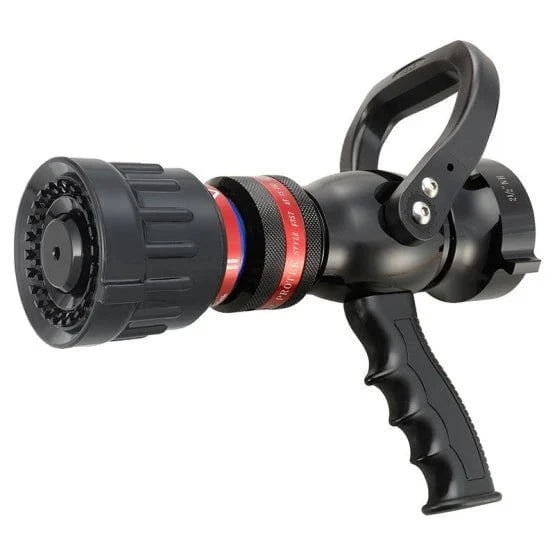

The 1-1/2" Mid-Range Low-Pressure Selectable Gallonage Nozzle is engineered to provide exceptional versatility and performance while operating at a reduced pressure of 75 PSI. Featuring five selectable flow settings ranging from 60 to 200 GPM, this nozzle allows firefighters to quickly adjust water delivery to meet changing fireground conditions while reducing nozzle reaction, minimizing operator fatigue, and lowering pressure demands on pumping systems.
Built with durable alloy construction and precision-machined components, the nozzle incorporates a shock-absorbing bumper, positive flow selection controls, and a heavy-duty chrome-plated shutoff ball for dependable operation. The efficient 120° bumper rotation provides smooth transitions between straight stream and fog patterns, while the ergonomic pistol grip enhances handling and control. Compatible with a foam aeration tube, this nozzle is well suited for structural firefighting, exposure protection, and foam applications.
Features
• Low-pressure operation at 75 PSI helps reduce nozzle reaction and firefighter fatigue
• Selectable flow rates of 60, 95, 125, 150, and 200 GPM
• Helps reduce pressure demands on pumping systems
• Shock absorber integrated into the bumper for increased durability
• Efficient 120° bumper rotation from straight stream to fog pattern
• Enhanced flow selection ring for positive flow setting engagement
• Enhanced ball-valve shutoff operation
• Laser-etched anodized label for enhanced durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip available in multiple colors
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Stainless steel filter mesh helps prevent debris blockages
• Precision-machined components require minimal maintenance
• Compatible with Foam Aeration Tube 1209
• NFPA 1964 compliant
Specifications
• Product Type: Mid-Range Low-Pressure Selectable Gallonage Combination Nozzle
• Flow Rates: 60, 95, 125, 150, and 200 GPM (230, 360, 475, 570, and 750 LPM)
• Operating Pressure: 75 PSI (5 BAR)
• Inlet Options: 1-1/2" (38 mm) or 2-1/2" (65 mm)
• Teeth Type: Fixed
• Material: Alloy
• Length: 11.9" (302 mm)
• Weight: 6.6 lbs. (3 kg)
• Foam Tube Compatibility: 1209
• Compliance: NFPA 1964
