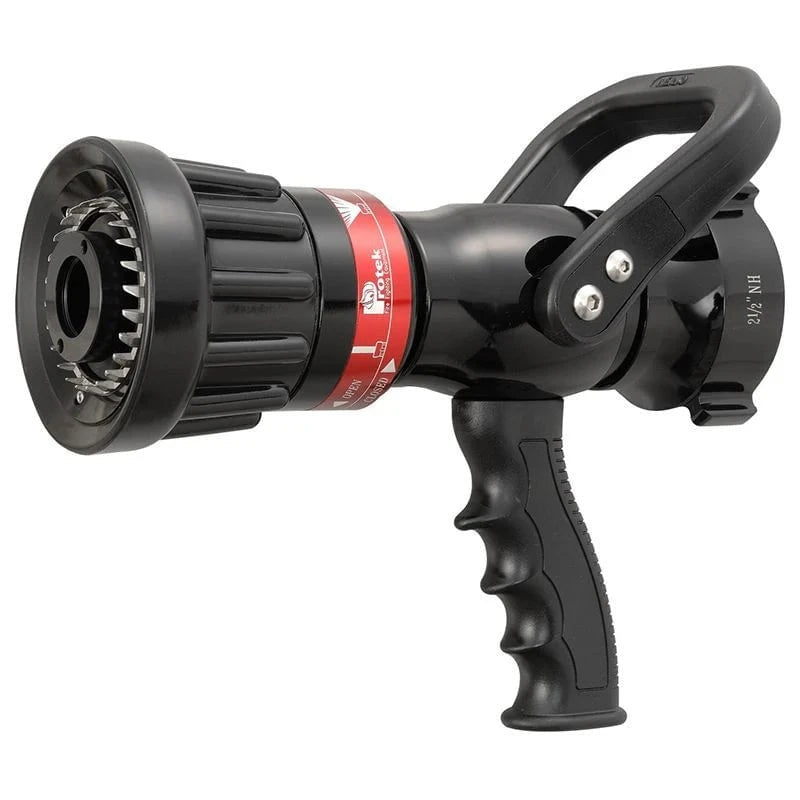

The 1-1/2" Multi-Purpose Nozzle is a lightweight, versatile firefighting nozzle designed to provide exceptional performance across a wide operating pressure range. Capable of operating effectively from 50 PSI to 100 PSI, this nozzle delivers reliable fire attack, exposure protection, and foam application capabilities while remaining compact and easy to handle.
Engineered with a durable shutoff mechanism, stainless steel spinning teeth, and an ergonomic pistol grip, the nozzle offers smooth operation and precise stream control. Its CAFS compatibility, optional solid bore tip configurations, and compliance with NFPA standards make it an excellent choice for municipal, industrial, and specialty firefighting applications. The continuous swivel inlet and rugged construction help ensure dependable operation with minimal maintenance requirements.
Features
• Operates effectively from 50 PSI (3.5 BAR) to 100 PSI (7 BAR)
• Lightweight and compact design for improved maneuverability
• Suitable for use with CAFS (Compressed Air Foam Systems)
• Combination straight stream and adjustable fog pattern operation
• Optional solid bore tips available in 3/4", 7/8", 15/16", and 1" sizes
• Stainless steel spinning teeth produce a dense, adjustable fog pattern
• Heavy-duty chrome-plated metal shutoff ball for smooth operation and long service life
• Flow pattern detents provide positive positioning and smooth adjustment
• Raised pattern identification lug for easy operation with gloves
• Laser-etched anodized label for enhanced durability and visibility
• Ergonomic pistol grip improves handling and nozzle control
• Continuous female swivel inlet with stainless steel strainer
• Robust design and quality materials minimize maintenance requirements
• Conforms to all applicable NFPA requirements
• Compatible with Foam Aeration Tube 1214
Specifications
• Style: 1333
• Product Type: Multi-Purpose Combination Nozzle
• Flow Rate: 136 GPM (510 LPM) at 100 PSI in Fog Pattern
• Operating Pressure: 50 PSI (3.5 BAR) to 100 PSI (7 BAR)
• Waterway Size: 1-3/8"
• Inlet Size: 1-1/2" (38 mm) NH
• Length: 11" (280 mm)
• Weight: 5.8 lbs. (2.6 kg)
• Teeth Type: Stainless Steel Spinning Teeth
• Foam Tube Compatibility: 1214
• Compliance: Conforms to NFPA Standards
