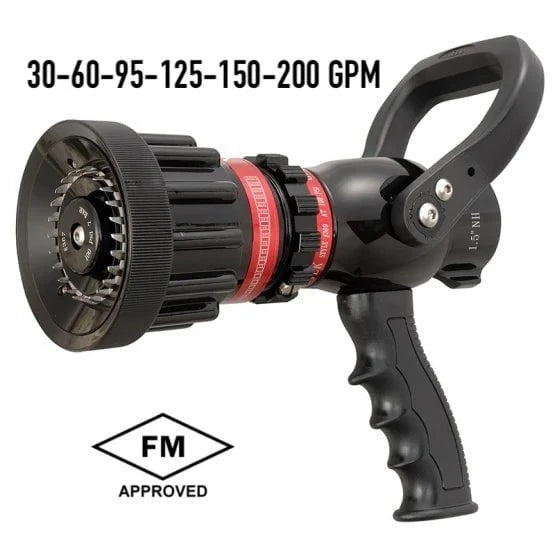

The 1-1/2" Wide-Range Selectable Gallonage Nozzle is a highly versatile combination nozzle designed to provide firefighters with six selectable flow settings for maximum flexibility on the fireground. With flow options ranging from 30 to 200 GPM, this nozzle allows operators to quickly adapt water delivery to changing fire conditions while maintaining excellent stream quality and firefighter protection.
Featuring stainless steel spinning teeth, a wide adjustable fog pattern, and an ergonomic pistol grip, the nozzle delivers exceptional control and performance for fire attack, exposure protection, overhaul, and foam applications. The heavy-duty shutoff mechanism, continuous swivel inlet, and flush capability ensure reliable operation in demanding environments, while FM Approval and NFPA 1964 compliance provide confidence in its performance and durability.
Features
• Selectable flow rates of 30, 60, 95, 125, 150, and 200 GPM
• Combination straight stream and adjustable fog pattern operation
• Wide, dense fog pattern for enhanced firefighter protection
• Stainless steel spinning teeth for superior fog pattern performance
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Flow pattern detents provide positive positioning and smooth adjustment
• Raised lug for easy pattern identification while wearing gloves
• Laser-etched anodized label for enhanced durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip for improved handling and control
• Continuous female swivel inlet with stainless steel strainer
• Precision-machined components require minimal maintenance
• Compatible with Foam Aeration Tube 1215
• Compatible with Medium Expansion Foam Tube 1227

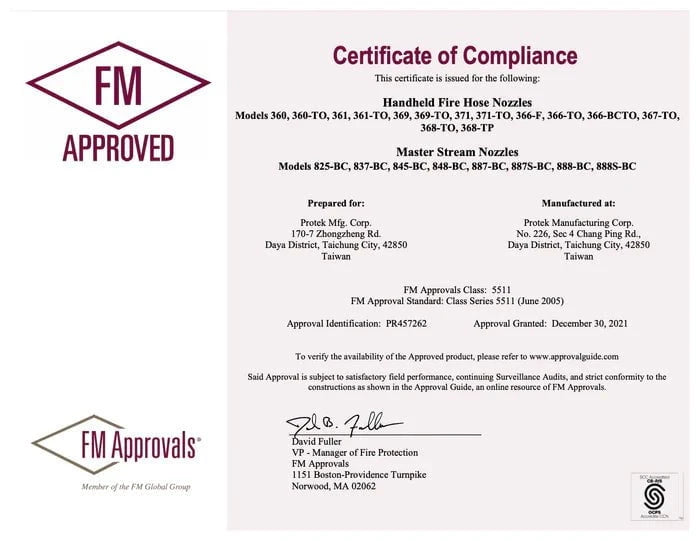

• FM Approved
• NFPA 1964 compliant
Specifications
• Style: 1369
• Product Type: Wide-Range Selectable Gallonage Combination Nozzle
• Flow Rates: 30, 60, 95, 125, 150, and 200 GPM (115, 230, 360, 475, 550, and 750 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Waterway Size: 1-3/8"
• Inlet Size: 1-1/2" (38 mm)
• Length: 10.2" (260 mm)
• Weight: 5.7 lbs. (2.6 kg)
• Teeth Type: Stainless Steel Spinning
• Foam Tube Compatibility: 1215
• Medium Expansion Foam Tube Compatibility: 1227
• Certifications: FM Approved, NFPA 1964 Compliant
