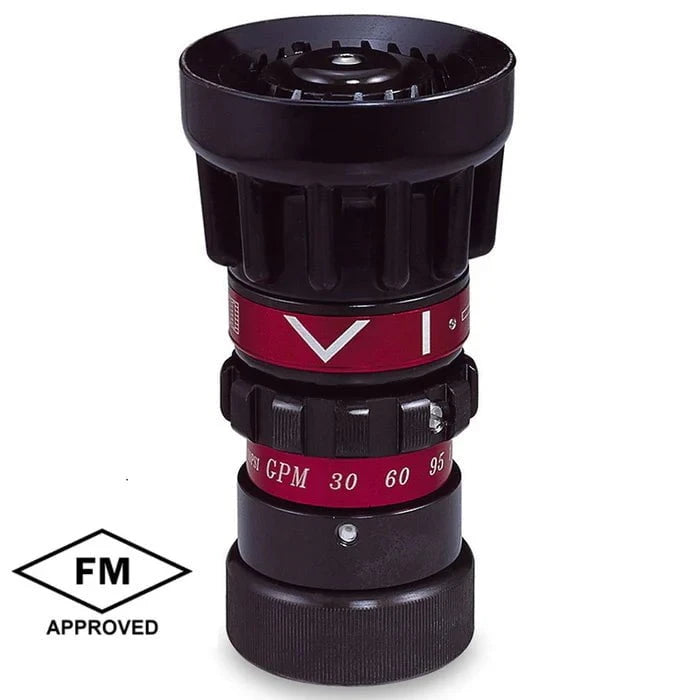

The 1-1/2" Selectable Gallonage Nozzle Tip Only is designed to provide flexible flow control and dependable stream performance when paired with a compatible shutoff body. Featuring four selectable flow settings, this nozzle tip allows firefighters to quickly adjust water delivery to meet changing fireground conditions while maintaining excellent stream quality and firefighter protection.
Equipped with spinning teeth and a combination pattern design, the nozzle tip produces a wide, dense fog pattern for effective fire suppression and exposure protection. Flow pattern detents provide positive positioning during operation, while raised identification lugs and laser-etched markings make adjustments quick and easy. Its durable alloy construction and precision-machined components ensure reliable performance with minimal maintenance requirements.
Features
• Selectable flow rates of 30, 60, 95, and 125 GPM
• Combination straight stream and adjustable fog pattern operation
• Wide, dense fog pattern for enhanced firefighter protection
• Spinning teeth for superior fog pattern performance
• Flow pattern detents provide positive positioning and smooth adjustment
• Raised lug for easy pattern identification while wearing gloves
• Laser-etched anodized label for enhanced durability and visibility
• Precision-machined components for reliable performance
• Low-maintenance construction

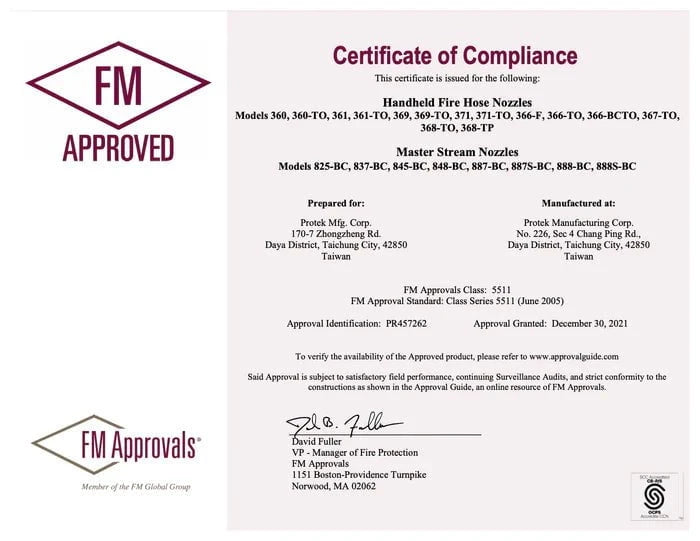

• FM Approved
• NFPA 1964 compliant
Specifications
• Model: 1366TO
• Product Type: Selectable Gallonage Nozzle Tip Only
• Flow Rates: 30, 60, 95, and 125 GPM (115, 230, 360, and 475 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Size: 1-1/2" (38 mm)
• Teeth Type: Spinning
• Material: Alloy
• Length: 6.3" (160 mm)
• Weight: 2.2 lbs. (1.0 kg)
• Certifications: FM Approved, NFPA 1964 Compliant
