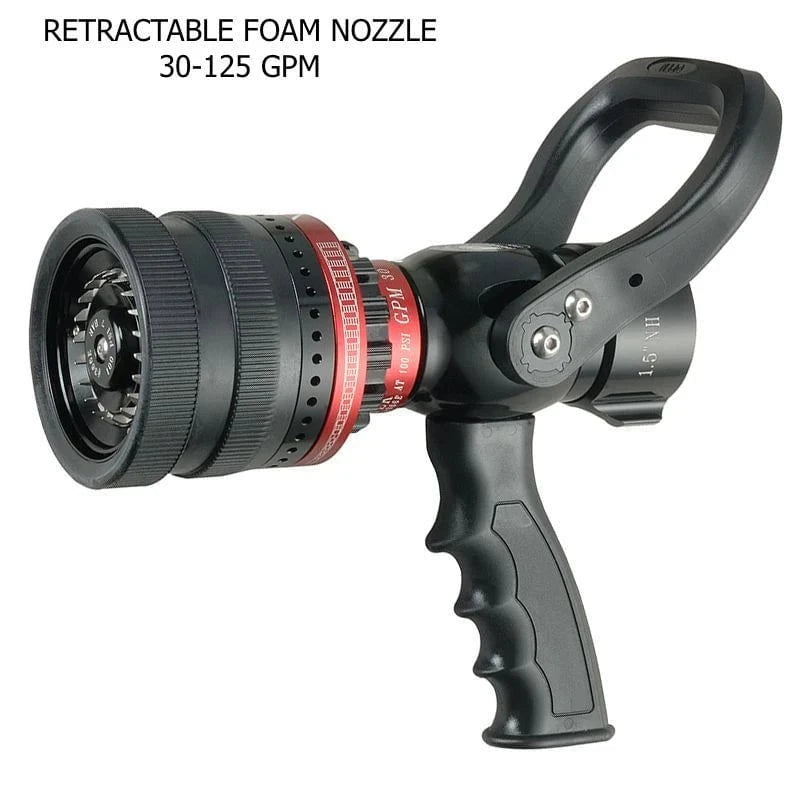

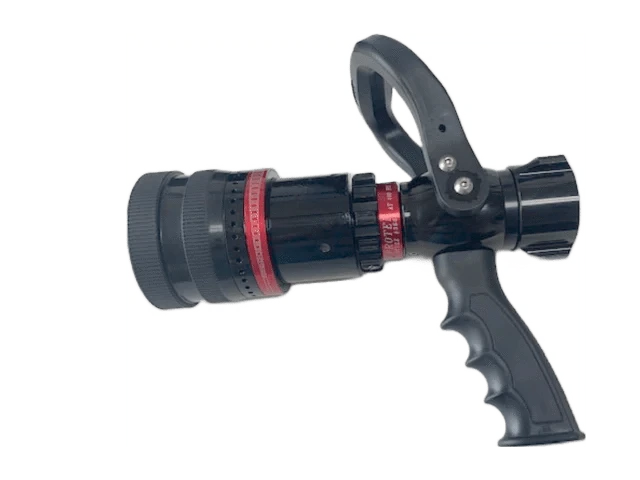

The 1-1/2" Selectable Gallonage Retractable Foam Nozzle is a versatile firefighting nozzle engineered for both water and foam applications. Designed to work with Class A foam, AFFF foam, and a variety of other foam concentrates, this nozzle provides selectable flow rates and a retractable foam aspiration sleeve that allows firefighters to quickly transition between aspirated foam application and standard fog stream operations.
Ideal for use with eductors and onboard foam proportioning systems, the nozzle delivers excellent flexibility for structural, industrial, and flammable liquid firefighting incidents. Its ergonomic pistol grip, heavy-duty shutoff mechanism, and flush capability ensure dependable performance and ease of operation, while the retractable aspiration sleeve allows efficient transformation from foam application to a wide protective fog pattern.
Features
• Designed for water and foam applications
• Compatible with Class A, AFFF, and other foam concentrates
• Selectable flow rates of 30, 60, 95, and 125 GPM
• Dynamic nozzle with retractable foam aspiration sleeve
• Suitable for use with eductors and onboard foam proportioning systems
• Quickly transitions from aspirated foam to wide fog pattern operation
• Combination straight stream and adjustable fog pattern capability
• Laser-etched anodized label for enhanced durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip available in multiple colors
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Stainless steel filter mesh helps prevent debris blockages
• Precision-machined components for dependable performance
Specifications
• Model: 1366E
• Product Type: Selectable Gallonage Retractable Foam Nozzle
• Flow Rates: 30, 60, 95, and 125 GPM (115, 230, 360, and 475 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Size: 1-1/2" (38 mm)
• Material: Alloy
• Length: 10"–12.5" (256–316 mm)
• Weight: 4.6 lbs. (2.1 kg)
• Foam Compatibility: Class A, AFFF, and Other Foam Concentrates
