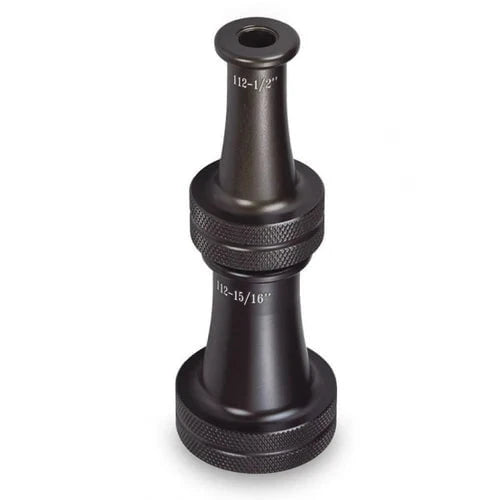

The 1-1/2" Smooth Bore Double Stacked Tip – 15/16" Outlet is designed to provide maximum stream reach, penetration, and versatility for firefighting operations. Featuring a double stacked tip configuration, this nozzle allows firefighters to select between two smooth bore orifice sizes, providing greater flexibility for varying flow requirements and fireground conditions.
Constructed from lightweight hardcoat anodized aluminum, the tip offers excellent durability and corrosion resistance while minimizing hose line weight. Compatible with ball shutoffs, the precision-machined smooth bore design produces a concentrated water stream with minimal turbulence for efficient water delivery and superior stream performance. Laser-engraved markings allow for quick identification of discharge sizes in the field.
Features
• Produces a concentrated water stream for maximum reach and penetration
• Double stacked tip design provides two selectable smooth bore orifices
• Standard 15/16" x 1/2" (23 mm x 13 mm) orifice configuration
• Compatible with ball shutoffs
• Lightweight hardcoat anodized aluminum construction
• Corrosion-resistant and durable design
• Precision-machined smooth bore for superior stream quality
• Laser-engraved discharge size markings for easy identification
• Ideal for structural firefighting and handline operations
Specifications
• Style: 1112
• Product Type: Smooth Bore Double Stacked Tip
• Inlet Size: 1-1/2" (38 mm)
• Outlet Size: 15/16" Primary Orifice
• Secondary Orifice: 1/2" (13 mm)
• Material: Hardcoat Anodized Alloy
• Length: 6.5" (165 mm)
• Weight: 0.7 lbs. (0.3 kg)
• Application: Handline Firefighting and Water Delivery Operations
