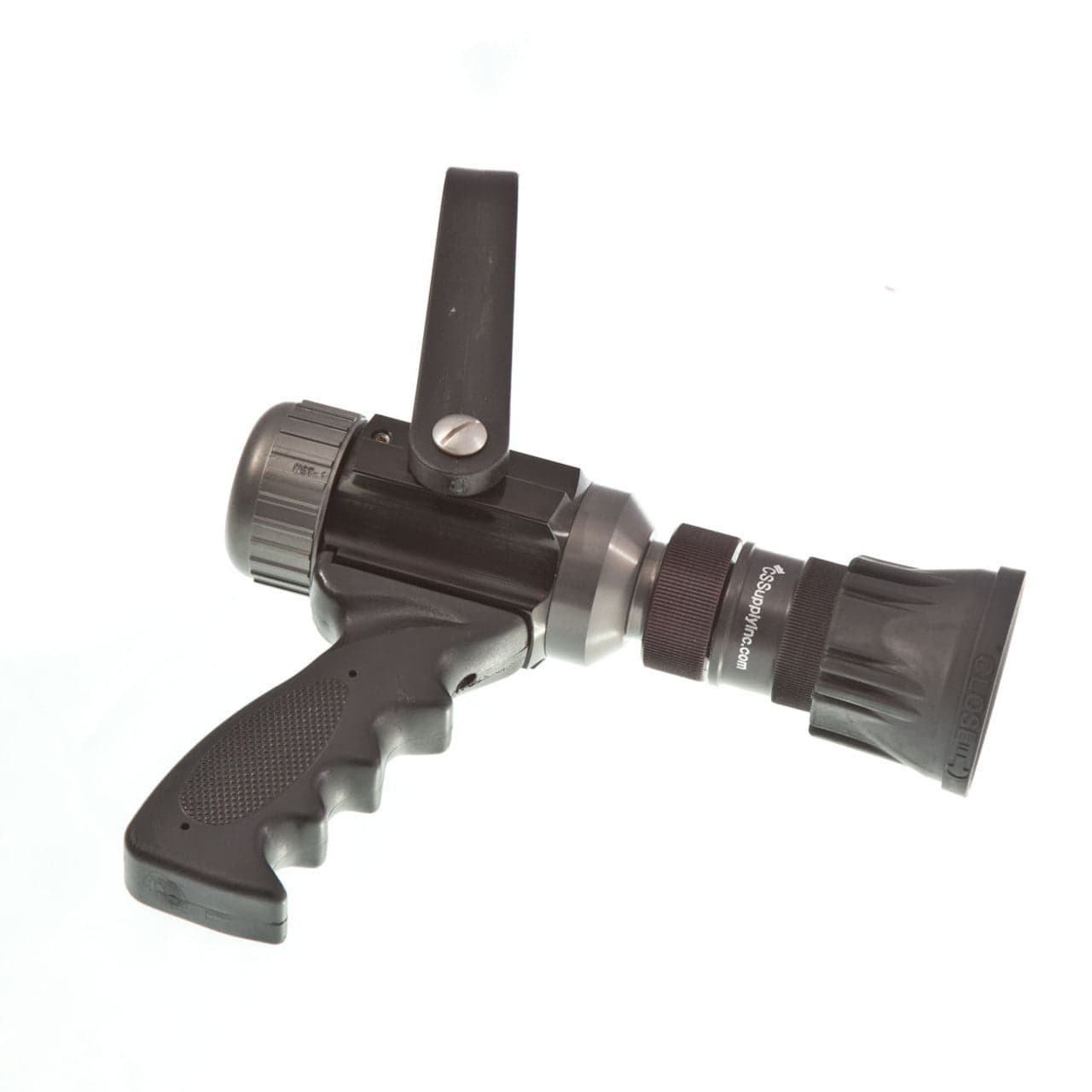

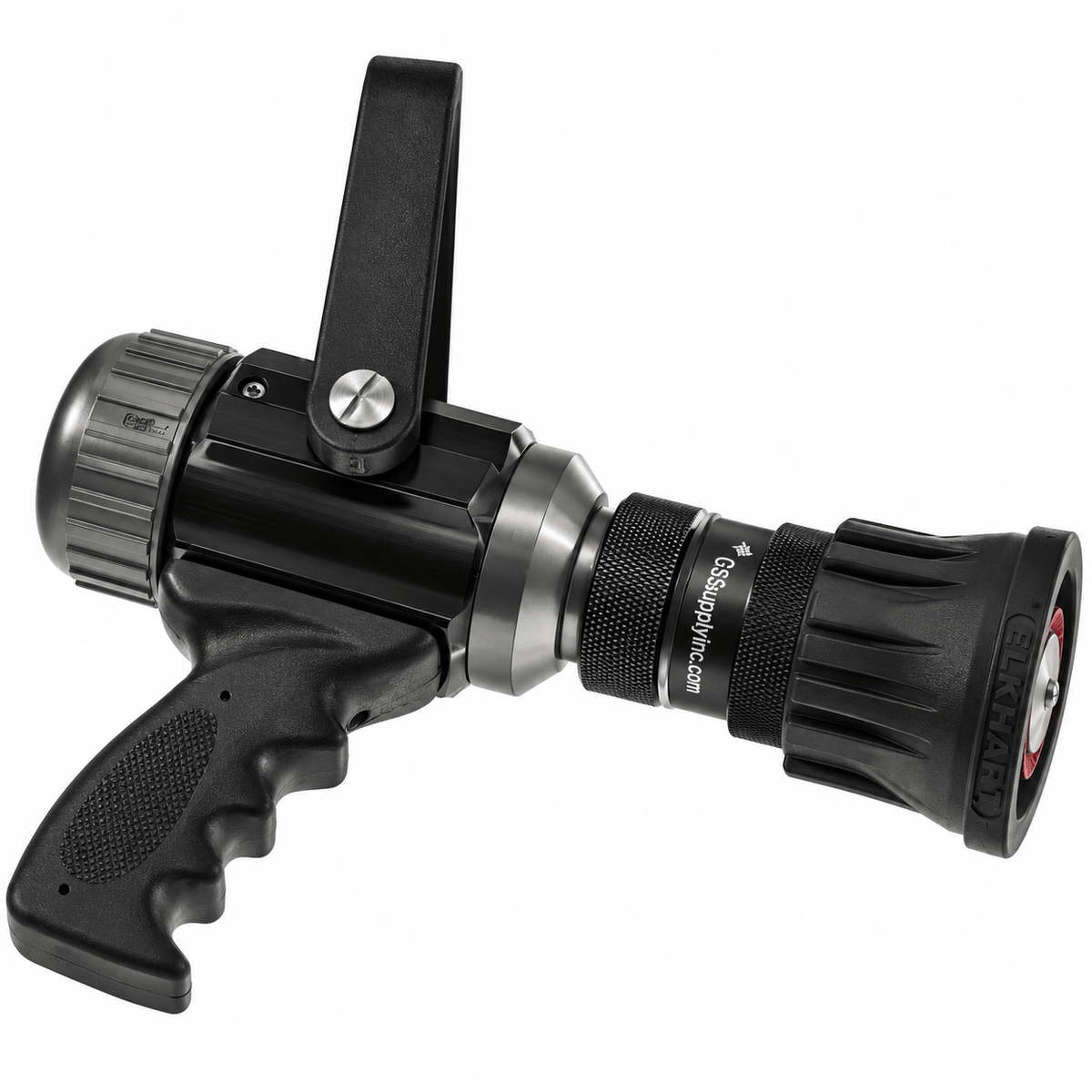

The C&S Supply 1" Constant Flow Industrial Nozzle – 30 GPM is designed to provide reliable water delivery, excellent stream performance, and simple operation for industrial, forestry, and wildland firefighting applications. Delivering a constant flow rate of 30 GPM at 100 PSI, this nozzle maintains consistent performance while allowing operators to quickly transition between fog, straight stream, and shutoff positions. Available with either 1" NST (NH) or 1" NPSH threads, it offers versatile compatibility with a wide range of hose and water delivery systems.
Constructed from lightweight E-LITE aluminum, the ST1530-PV combines durability, low maintenance requirements, and ease of operation in a compact package. Full-time swivels and spinning teeth provide smooth stream pattern adjustment, while the protective rubber bumper allows operators to move from fog to straight stream and then to shutoff with a simple twist. The removable pistol grip enhances control and flexibility, and the nozzle can be used as a break-apart assembly when needed. Individually tested for safety and reliability, this nozzle is built to perform in demanding firefighting environments.
Features
• Constant 30 GPM flow rate at 100 PSI
• Available with 1" NST (NH) or 1" NPSH threads
• Adjustable from fog to straight stream with integrated shutoff
• Turn-past-straight-stream shutoff operated through the protective bumper
• Can be used as a break-apart nozzle assembly
• Lightweight E-LITE aluminum construction
• Full-time swivels and spinning teeth for smooth stream control
• Ergonomically designed for easy operation and handling
• Removable pistol grip for operational flexibility
• Compact, lightweight, and low-maintenance design
• Individually tested for safety and reliability
• Ideal for industrial, forestry, and wildland firefighting applications
Specifications
• Manufacturer: C&S Supply
• Model: ST1530-PV
• Product Type: Constant Flow Industrial Nozzle
• Rated Flow: 30 GPM @ 100 PSI
• Inlet Connection: 1" NST (NH) or NPSH
• Operating Pressure: 100 PSI
• Construction Material: E-LITE Aluminum
• Stream Patterns: Fog, Straight Stream, and Shutoff
• Effective Straight Stream Reach: 85 ft @ 100 PSI
• Effective Fog Reach: 21 ft @ 100 PSI (45° Fog Pattern)
• Pistol Grip: Removable
• Break-Apart Capability: Yes (NST Models Only)
• Weight: 3.00 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Industrial Firefighting, Forestry Operations, Wildland Firefighting, Equipment Washdown, and Water Delivery Applications
