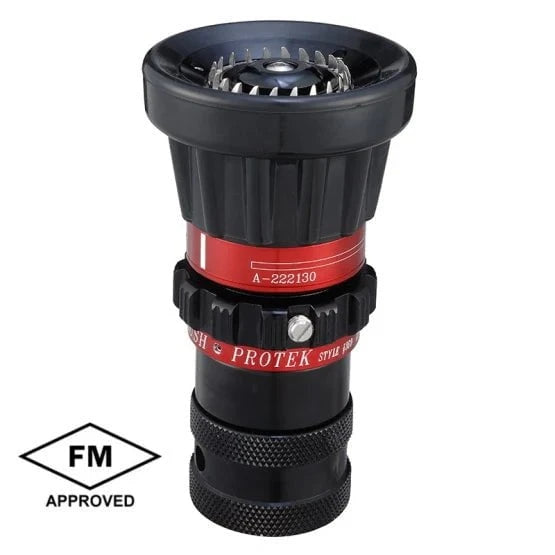

The 1" Selectable Gallonage Nozzle Tip Only is designed to provide flexible flow control and dependable stream performance when paired with a compatible shutoff body. Featuring four selectable flow settings ranging from 5 to 40 GPM, this nozzle tip is ideal for forestry, wildland, booster line, and low-flow firefighting applications where precise water delivery is critical.
Equipped with spinning teeth and a combination pattern design, the nozzle tip produces a wide, dense fog pattern for effective cooling and firefighter protection while also providing adjustable straight stream performance. Flow pattern detents ensure positive positioning during operation, while raised identification lugs and laser-etched markings allow for quick and easy adjustments in the field. Its lightweight alloy construction and precision-machined components deliver reliable performance with minimal maintenance requirements.
Features
• Selectable flow rates of 5, 10, 24, and 40 GPM
• Combination straight stream and adjustable fog pattern operation
• Wide, dense fog pattern for enhanced firefighter protection
• Spinning teeth for superior fog pattern performance
• Flow pattern detents provide positive positioning and smooth adjustment
• Raised lug for easy pattern identification while wearing gloves
• Laser-etched anodized label for enhanced durability and visibility
• Precision-machined components for reliable performance
• Low-maintenance construction
• FM Approved
• NFPA 1964 compliant
Specifications
• Model: 1360TO
• Product Type: Selectable Gallonage Nozzle Tip Only
• Flow Rates: 5, 10, 24, and 40 GPM (19, 37, 90, and 150 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Inlet Size: 1" (25 mm)
• Teeth Type: Spinning
• Material: Alloy
• Length: 5.5" (140 mm)
• Weight: 1.6 lbs. (0.7 kg)
• Certifications: FM Approved, NFPA 1964 Compliant
