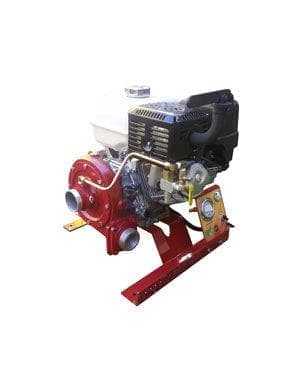

The CET 11 HP Skid Mounted High Volume Pump - Electric Start is a powerful, lightweight firefighting pump designed to deliver exceptional water flow in a compact skid-mounted configuration. Powered by a reliable Honda GX340 engine, this pump provides some of the highest flow performance available in its class, making it ideal for tanker filling, water transfer, relay pumping, wildland firefighting, and emergency water supply operations. Mounted on a durable skid frame, this unit is easily installed on trucks, trailers, UTVs, and custom firefighting apparatus. The pump is also available in a portable version for applications requiring maximum mobility.
Built around a direct-drive C.E.T. single-stage centrifugal pump, this unit features a corrosion-resistant aluminum alloy pump body, bronze impeller, and mechanical shaft seal for dependable long-term performance. The electric start system is backed up by a recoil starter for added reliability, while the exhaust priming system provides dependable priming capability with lifts up to 20 feet. Complete with a pressure gauge, low oil alert system, and quick-connect 12-volt battery connection, this pump is engineered to provide reliable high-volume water delivery wherever it is needed.
Features
• Honda GX340 air-cooled gasoline engine
• Single-cylinder, 4-stroke engine design
• 12V electric start with recoil start backup
• Compact skid-mounted configuration for vehicle and trailer installations
• Direct-drive C.E.T. single-stage centrifugal pump
• Corrosion-resistant aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 2-1/2" NPT-M discharge outlet flange
• One 2-1/2" suction inlet
• Pressure gauge included
• Low oil alert protection system
• Quick-connect for 12-volt battery
• Ideal for firefighting, tanker filling, relay pumping, and water transfer operations
• Also available in a portable version
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: Skid Mounted High Volume Pump
• Model: SM-PFP-11HPHND-EM
• Engine: Honda GX340
• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Gasoline
• Starting System: 12V Electric Start with Recoil Backup
• Fuel Tank Capacity: 1.6 Gallons (6.1 L)
• Pump Type: Direct-Drive C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 2-1/2" NPT-M Flange
• Dimensions: 20-1/4" L x 26" W x 23-1/4" H
• Wet Weight: 132 lbs.
• Warranty: 3-Year Limited Warranty
Performance
• 290 GPM @ 10 PSI
• 190 GPM @ 50 PSI
• 120 GPM @ 75 PSI
• 80 GPM @ 100 PSI
