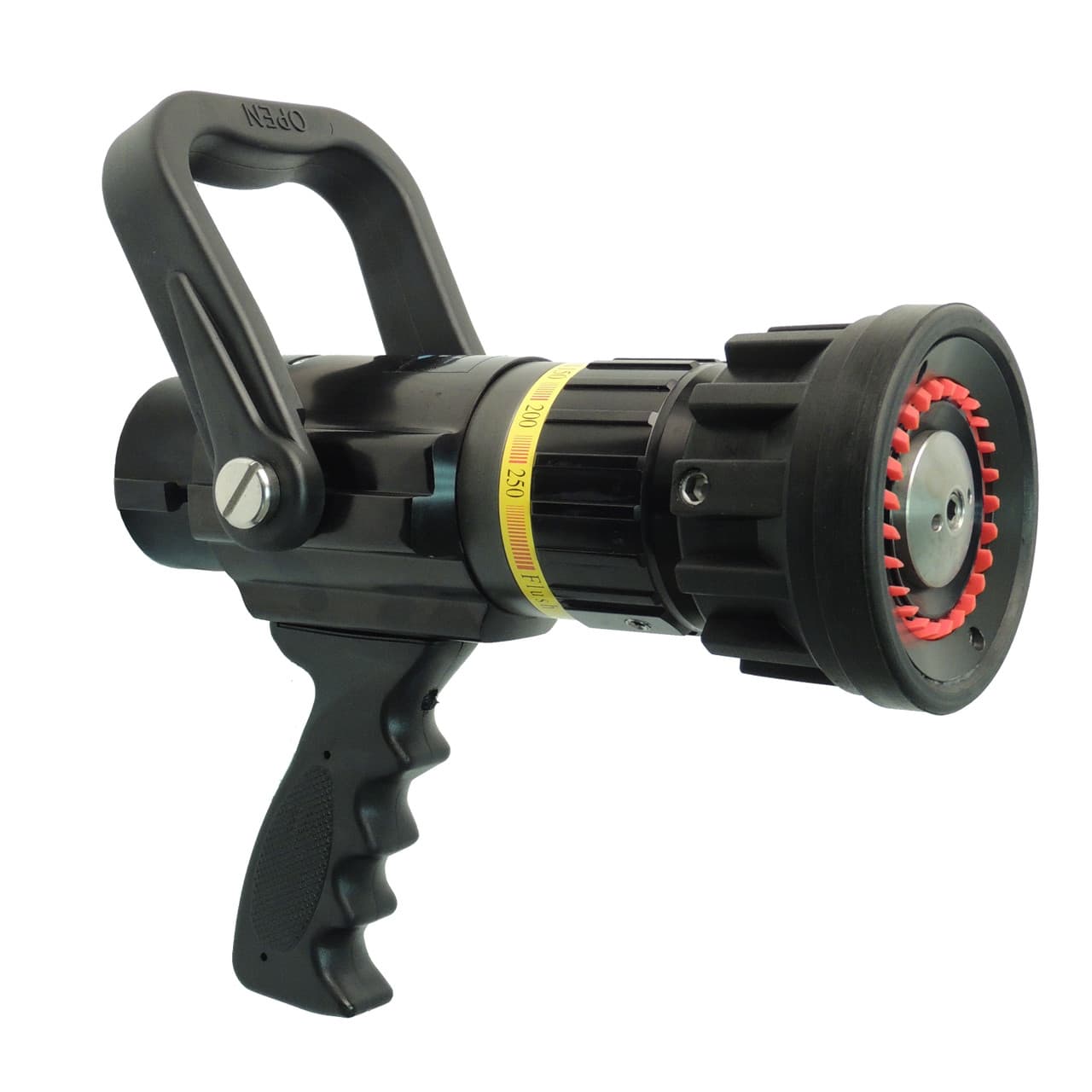

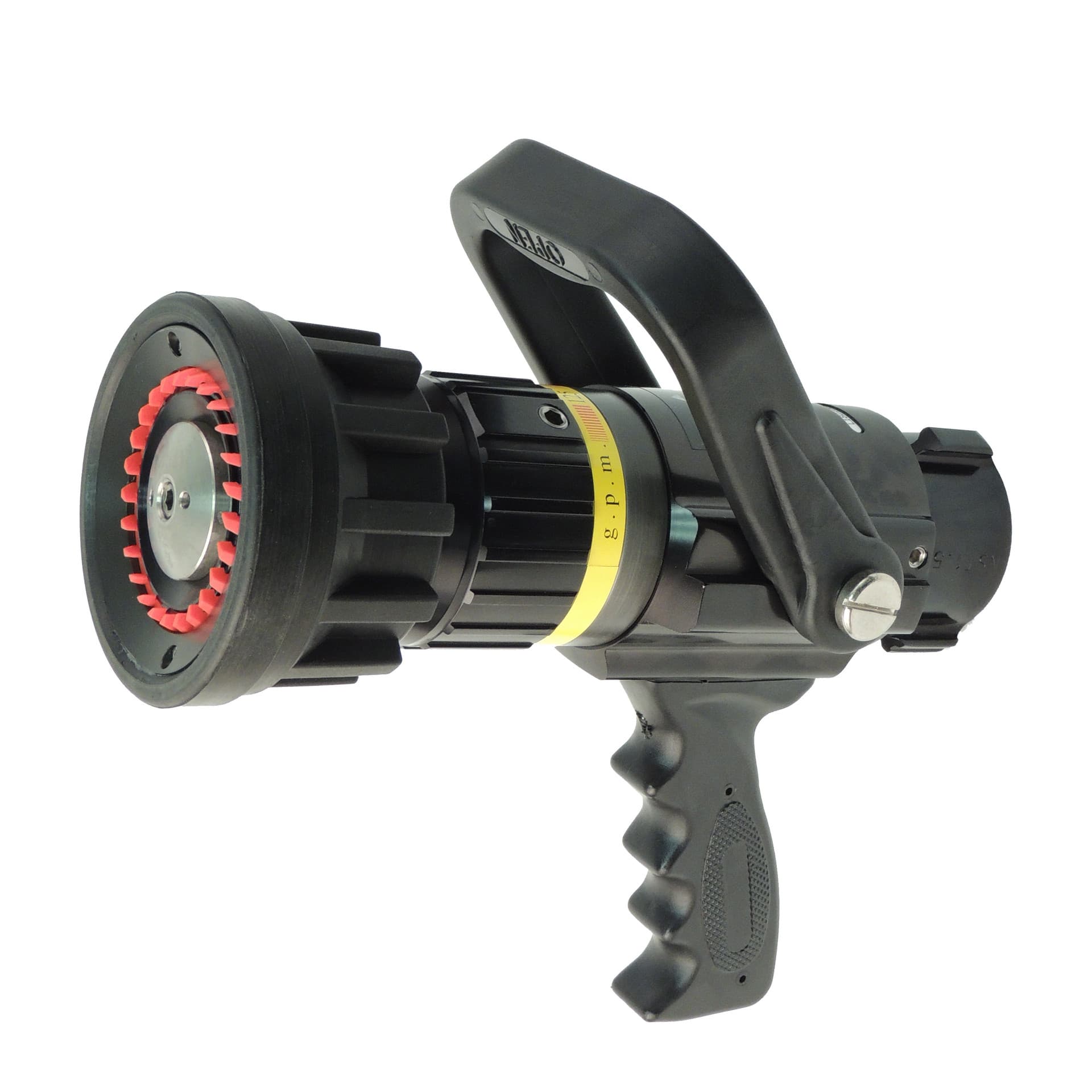

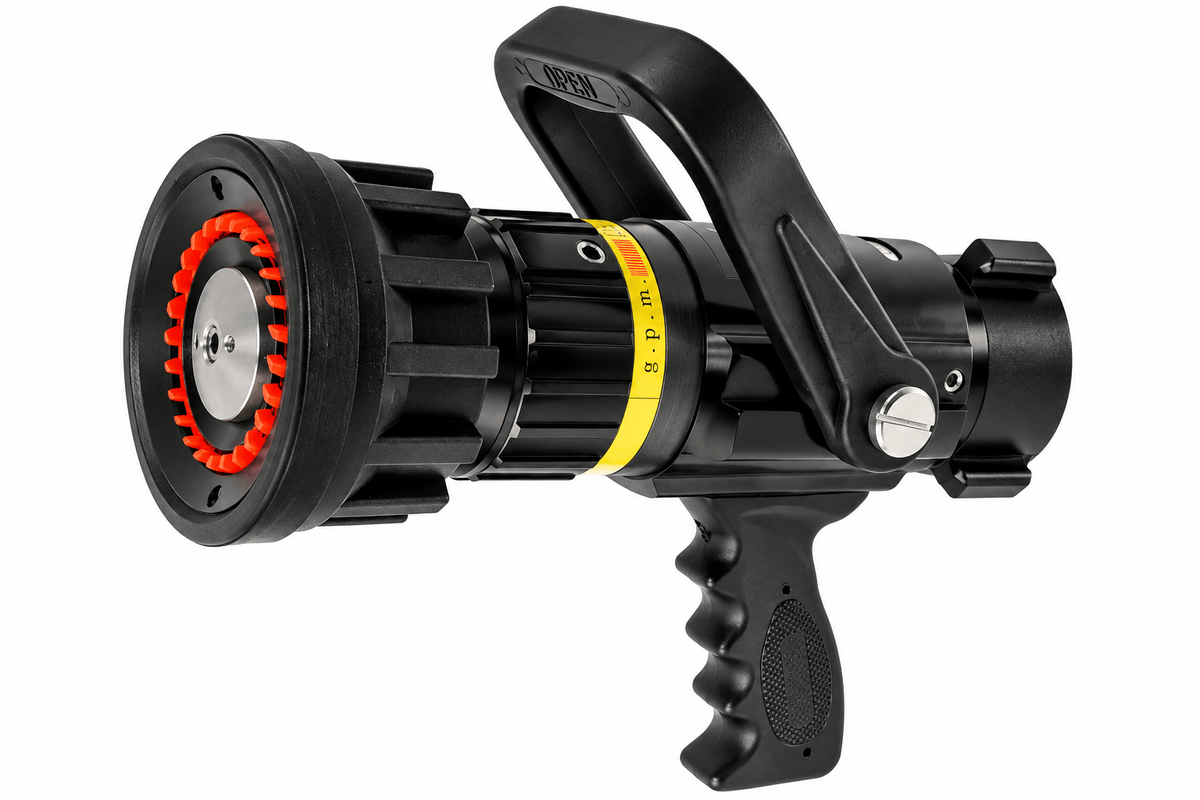

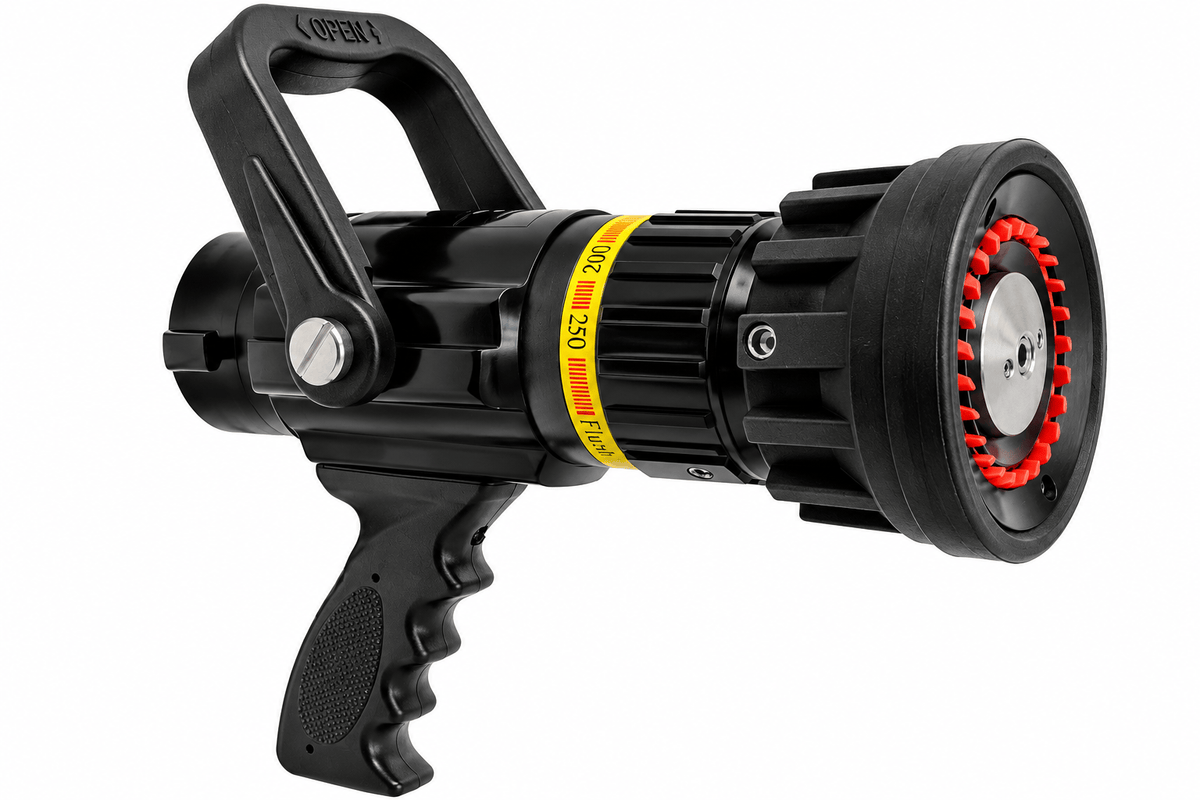

The C&S Supply 125–250 GPM 1-1/2" Select Gallonage Nozzle is designed to provide exceptional versatility, dependable stream performance, and operator-controlled flow selection for structural, industrial, and municipal firefighting applications. Featuring four selectable flow settings of 125, 150, 200, and 250 GPM, firefighters can quickly adjust flow rates without changing stream pattern, allowing the nozzle to adapt to changing fire conditions while maintaining effective water application. We offer this nozzle with either 1-1/2" NST (NH) or 1-1/2" NPSH threads and a choice of either a black composite bail handle or a metal bail handle.
Constructed from lightweight E-LITE aluminum with durable brass internal components, the SG12250 combines rugged durability with low-maintenance operation. The BIMATIC flush system allows debris to be cleared without shutting down water flow, while spinning teeth provide a wide, protective fog pattern and smooth transitions from fog to straight stream. The removable pistol grip enhances handling and control, and the nozzle is individually tested to ensure reliable performance in demanding firefighting environments. Operating pressures of both 75 PSI and 100 PSI are available to meet departmental preferences and application requirements.
Features
• Four selectable flow settings: 125, 150, 200, and 250 GPM
• Flow can be adjusted without changing stream pattern
• Available with 1-1/2" NST (NH) or 1-1/2" NPSH threads
• Available with black composite or metal bail handle
• BIMATIC flush system allows debris removal without shutting down
• Constant flow performance throughout fog and straight stream patterns
• Lightweight E-LITE aluminum construction
• Durable brass internal components
• Spinning teeth provide a wide, complete fog pattern
• Ergonomically designed for easy operation and handling
• Removable pistol grip for operational flexibility
• Compact, lightweight, and low-maintenance design
• Individually tested for safety and reliability
• Available in 75 PSI and 100 PSI operating pressure configurations
Specifications
• Manufacturer: C&S Supply
• Model: SG12250
• Product Type: Select Gallonage Fire Nozzle
• Flow Settings: 125, 150, 200, and 250 GPM
• Operating Pressure Options: 75 PSI or 100 PSI
• Inlet Connection: 1-1/2" NST (NH) or 1-1/2" NPSH
• Construction Material: E-LITE Aluminum with Brass Internal Components
• Stream Patterns: Fog to Straight Stream
• Flush Capability: BIMATIC Flush System
• Pistol Grip: Removable
• Bail Handle Options: Black Composite or Metal
• Weight: 6.60 lbs
• Dimensions: 9" W x 12" H x 6" D
• Effective Straight Stream Reach: Up to 157 ft at 250 GPM and 100 PSI
• Application: Structural Firefighting, Municipal Fire Service, Industrial Fire Protection, Foam Operations, and General Fire Suppression Applications
