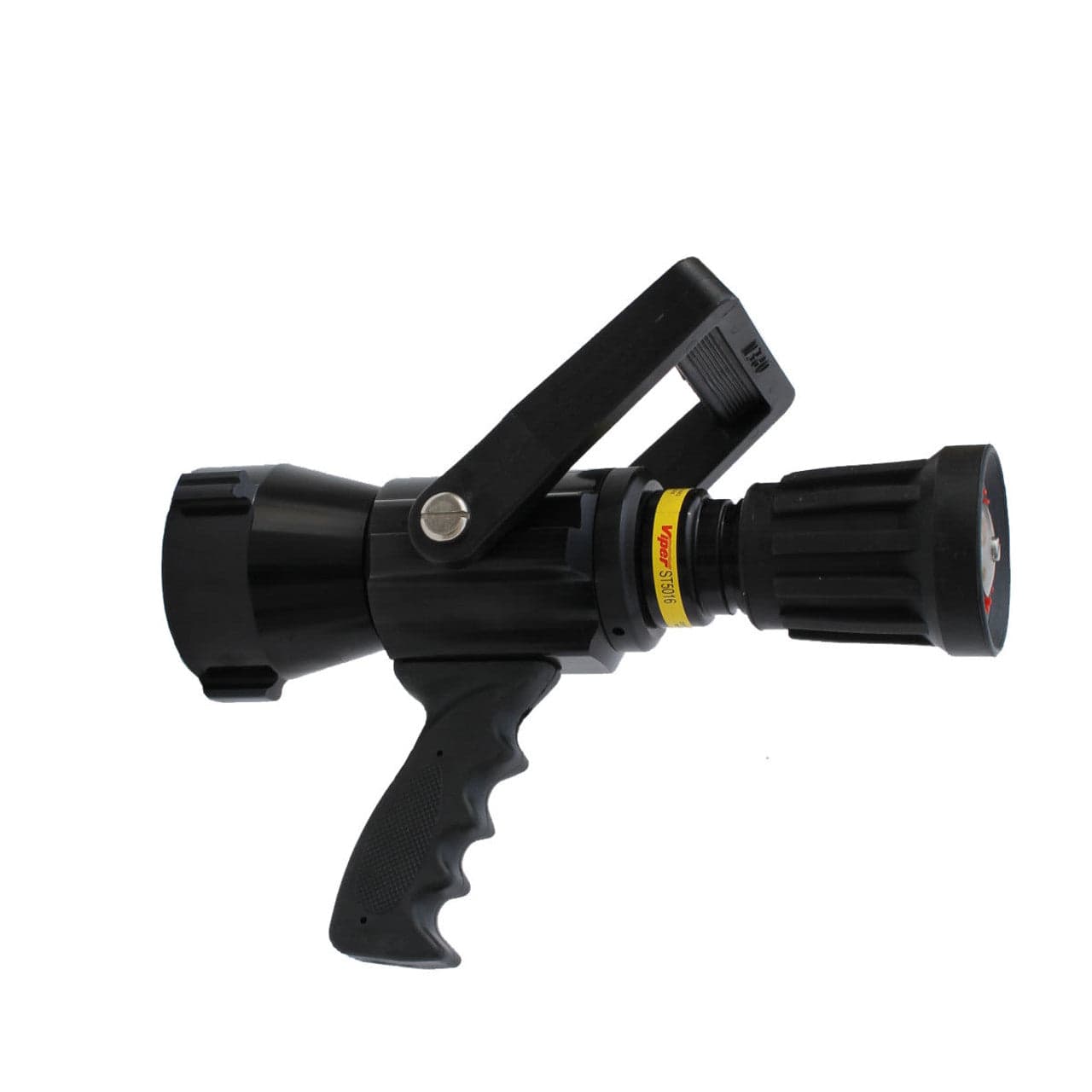

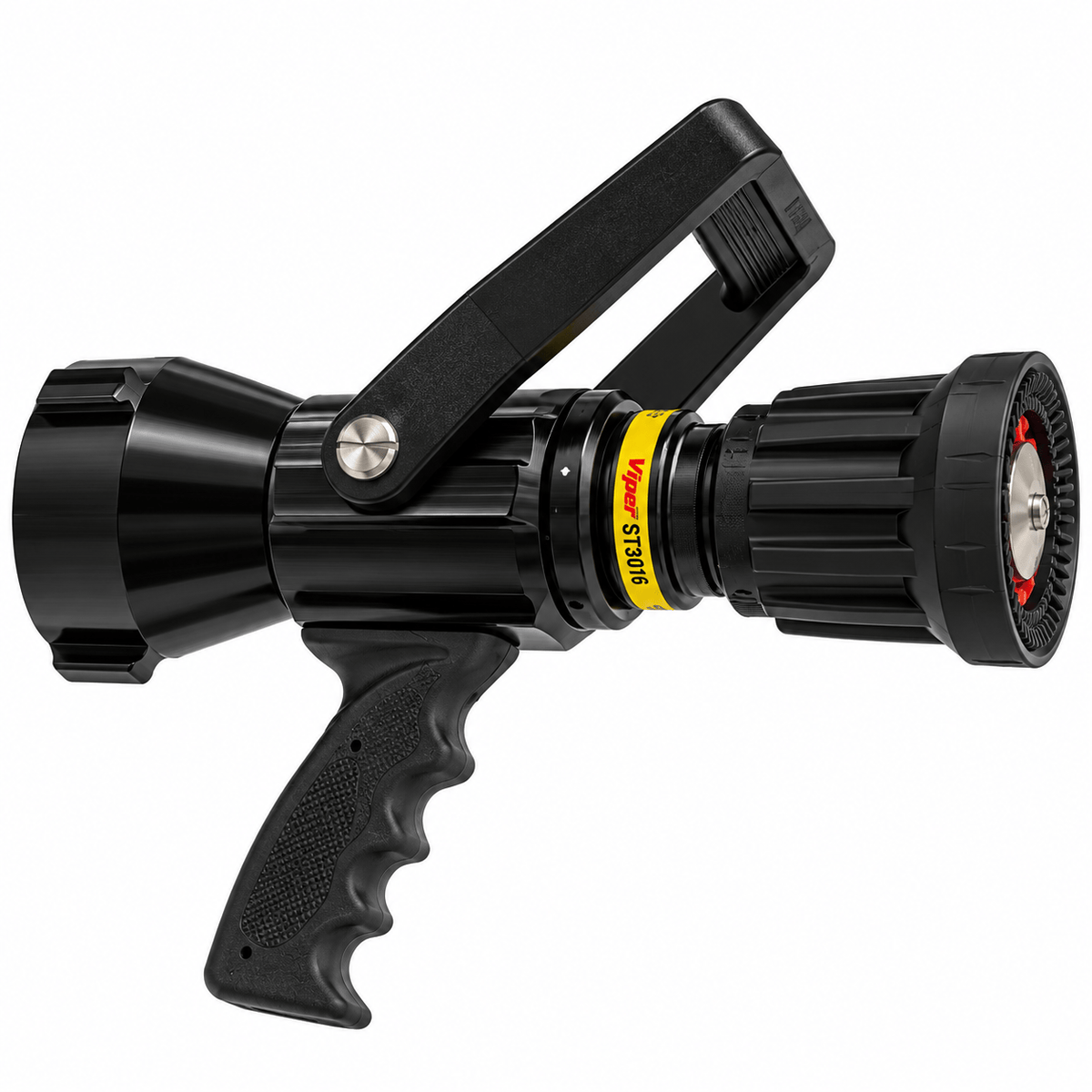

The 125 GPM 2-1/2" Constant Flow Industrial Nozzle is engineered to deliver reliable, consistent flow performance for industrial firefighting, municipal fire service, and specialized suppression applications. Designed with a fixed 125 GPM flow rate at 100 PSI, this nozzle provides dependable stream quality while offering smooth transitions between fog, straight stream, and shutoff positions for maximum operational versatility. Available with either 2-1/2" NST (NH) or 2-1/2" NPSH threads, it provides flexible compatibility for a variety of hose and apparatus configurations.
Constructed from lightweight E-LITE aluminum with durable brass internal components, this nozzle combines rugged performance with low maintenance requirements. The BIMATIC flush system allows debris to be cleared without shutting down the nozzle, helping maintain uninterrupted operations. Featuring full-time swivels, spinning teeth, and a removable pistol grip, the nozzle is designed for comfortable handling and long-term durability. Available with color-coded bail handles to match pre-connect lines, this nozzle is individually tested to ensure dependable fireground performance.
Features
• Fixed 125 GPM flow rate at 100 PSI operating pressure
• Available with 2-1/2" NST (NH) or 2-1/2" NPSH inlet connections
• BIMATIC flush system allows debris removal without shutting down
• Adjustable from fog to straight stream with integrated shutoff
• Turn-past-straight-stream shutoff operated through the protective bumper
• Can be used as a break-apart nozzle assembly
• Lightweight E-LITE aluminum construction
• Durable brass internal components
• Full-time swivels and spinning teeth for superior stream control
• Ergonomic design for easy operation and handling
• Removable pistol grip for application flexibility
• Individually tested for safety and reliability
• Low-maintenance design for long service life
• Compact and lightweight industrial nozzle design
Specifications
• Manufacturer: C & S Supply
• Model: ST5016 2-1/2-PV
• Product Type: Constant Flow Industrial Nozzle
• Rated Flow: 125 GPM
• Inlet Connection: 2-1/2" NST (NH) or 2-1/2" NPSH
• Operating Pressure: 100 PSI
• Maximum Operating Pressure: 600 PSI
• Maximum Test Pressure: 1200 PSI
• Construction Material: E-LITE Aluminum with Brass Internal Components
• Stream Patterns: Fog, Straight Stream, and Shutoff
• Flush Capability: BIMATIC Flush System
• Pistol Grip: Removable
• Weight: 6.20 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Industrial Firefighting, Municipal Fire Service, Foam Operations, and General Fire Suppression Applications
