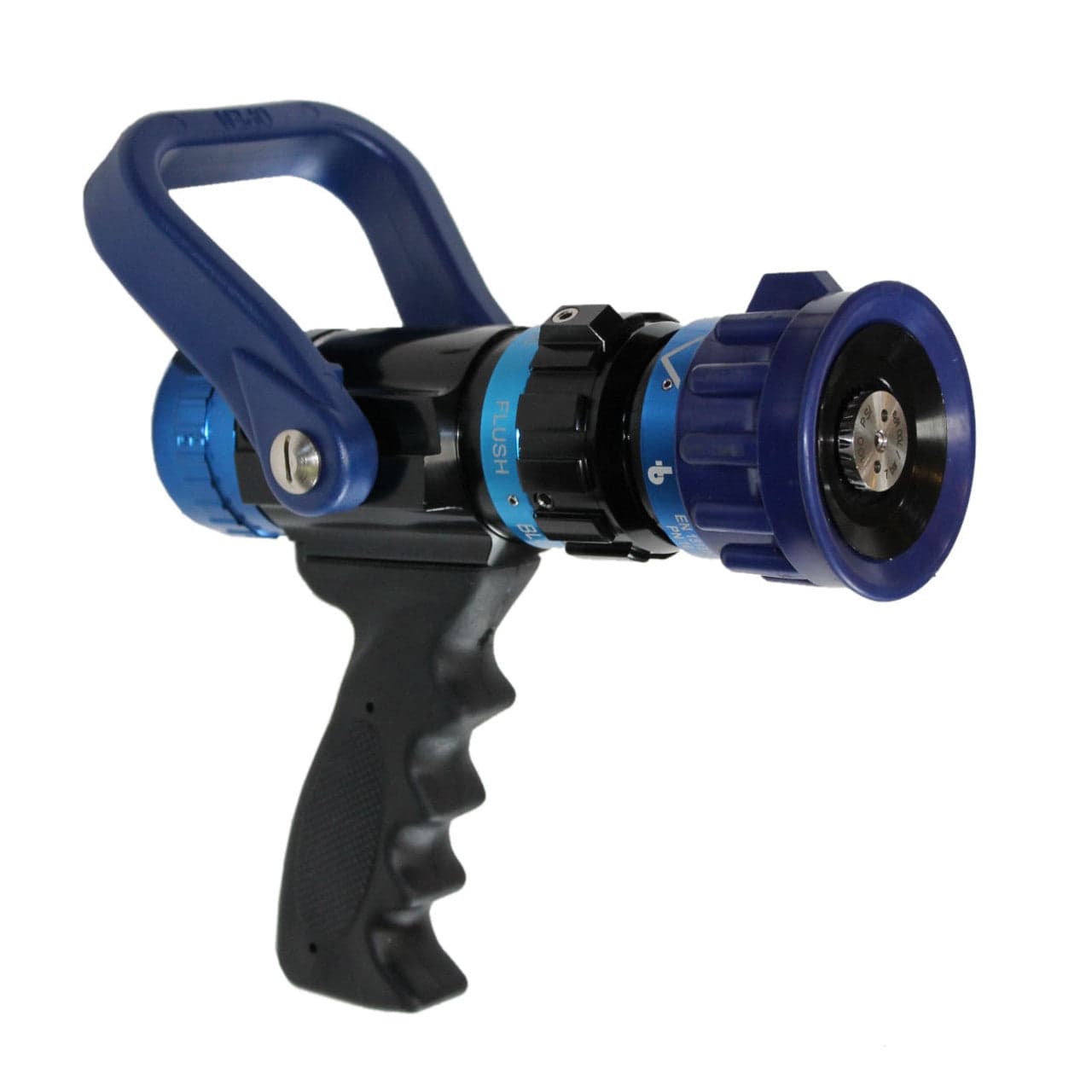

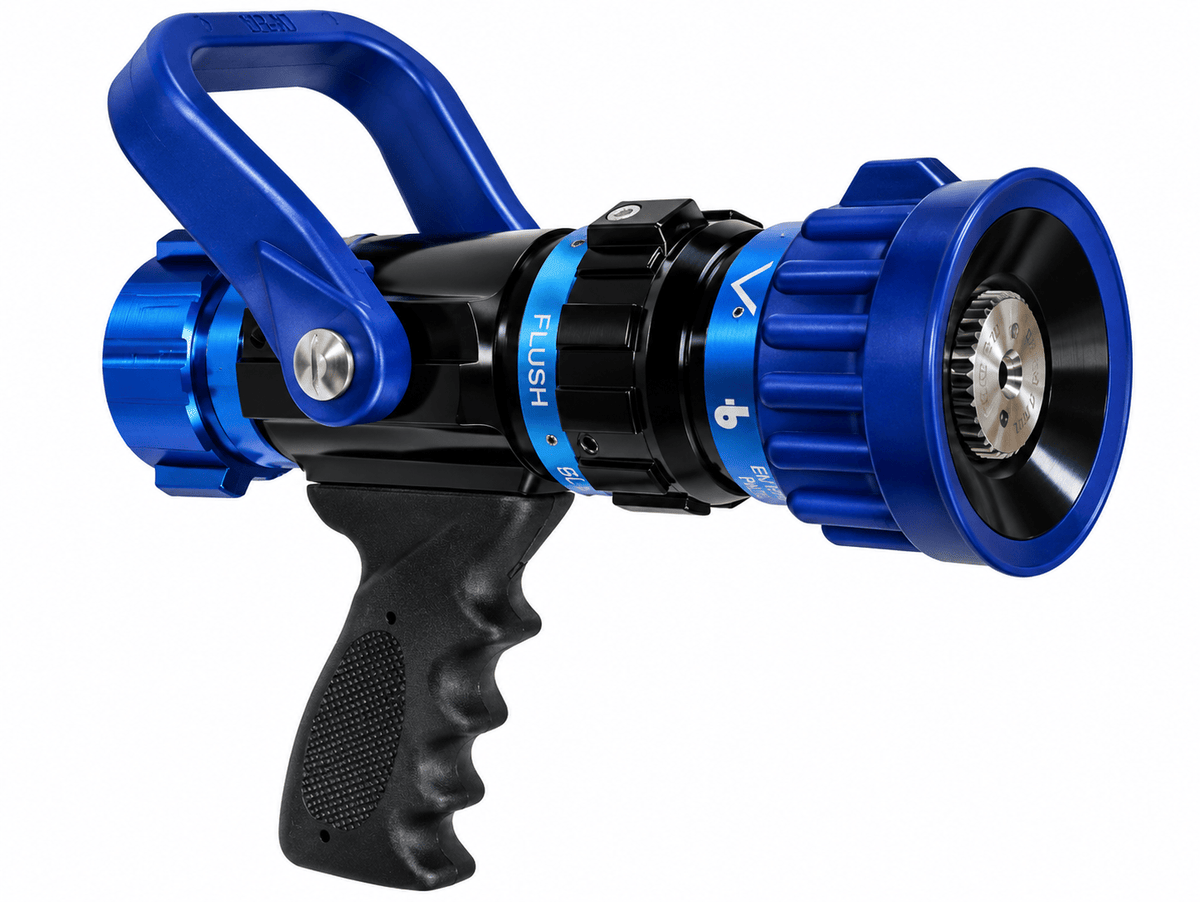

The VIPER 2.0 Blue Devil 15–60 GPM 1" Select Gallonage Nozzle is engineered to deliver exceptional flow flexibility, superior stream performance, and dependable operation for wildland, forestry, industrial, and municipal firefighting applications. Featuring four selectable flow settings of 15, 30, 50, and 60 GPM, the Blue Devil allows firefighters to quickly adjust flow rates without changing stream pattern, providing maximum versatility while conserving water when needed. We offer this nozzle in four configurations: NST with a composite bail handle, NST with a metal bail handle, NPSH with a composite bail handle, and NPSH with a metal bail handle.

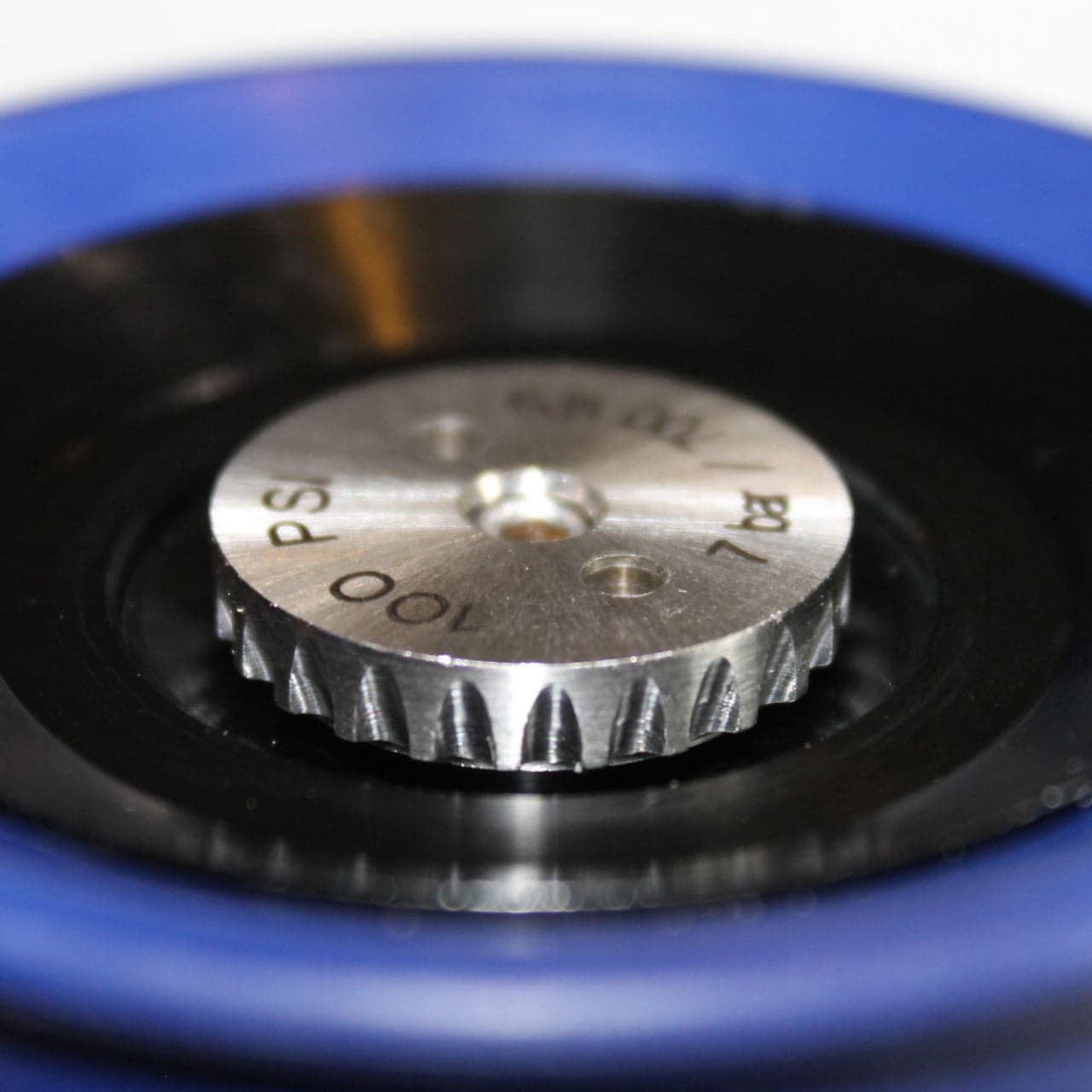

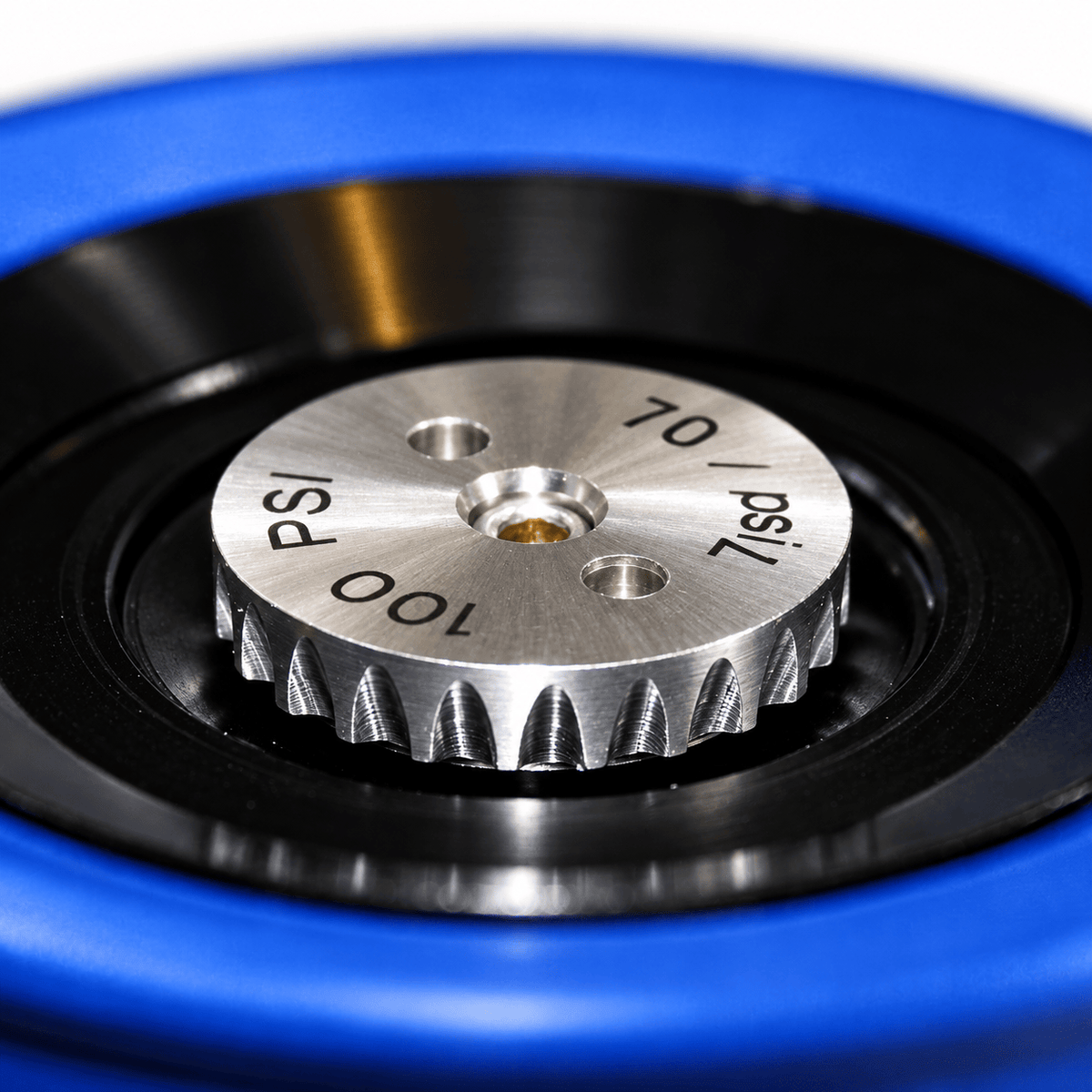

Built around the innovative Blue Devil platform, this nozzle utilizes advanced Rylostatic teeth that are integrated directly into the nozzle head, eliminating exposed spinning or fixed teeth while producing superior fog patterns and reducing maintenance requirements. The durable metal ball valve assembly is designed to operate at pressures up to 580 PSI, while deeper selector ring ribs provide excellent grip when wearing firefighting gloves. The flush feature allows debris to be removed without shutting down water flow, and the lightweight E-LITE aluminum construction with brass internal components provides reliable performance while reducing firefighter fatigue. NFPA 1964 compliant and EN 15182-4 Type 3 certified, the Blue Devil nozzle is built to perform in demanding firefighting environments.
Features
• Four selectable flow settings: 15, 30, 50, and 60 GPM
• Flow selection without changing stream pattern
• Available with NST or NPSH threads
• Available with composite or metal bail handles
• Available in four configurations:
• NST with Composite Bail Handle
• NST with Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Metal Bail Handle
• NFPA 1964 compliant
• EN 15182-4 Type 3 certified
• Flush capability allows debris removal without shutting down

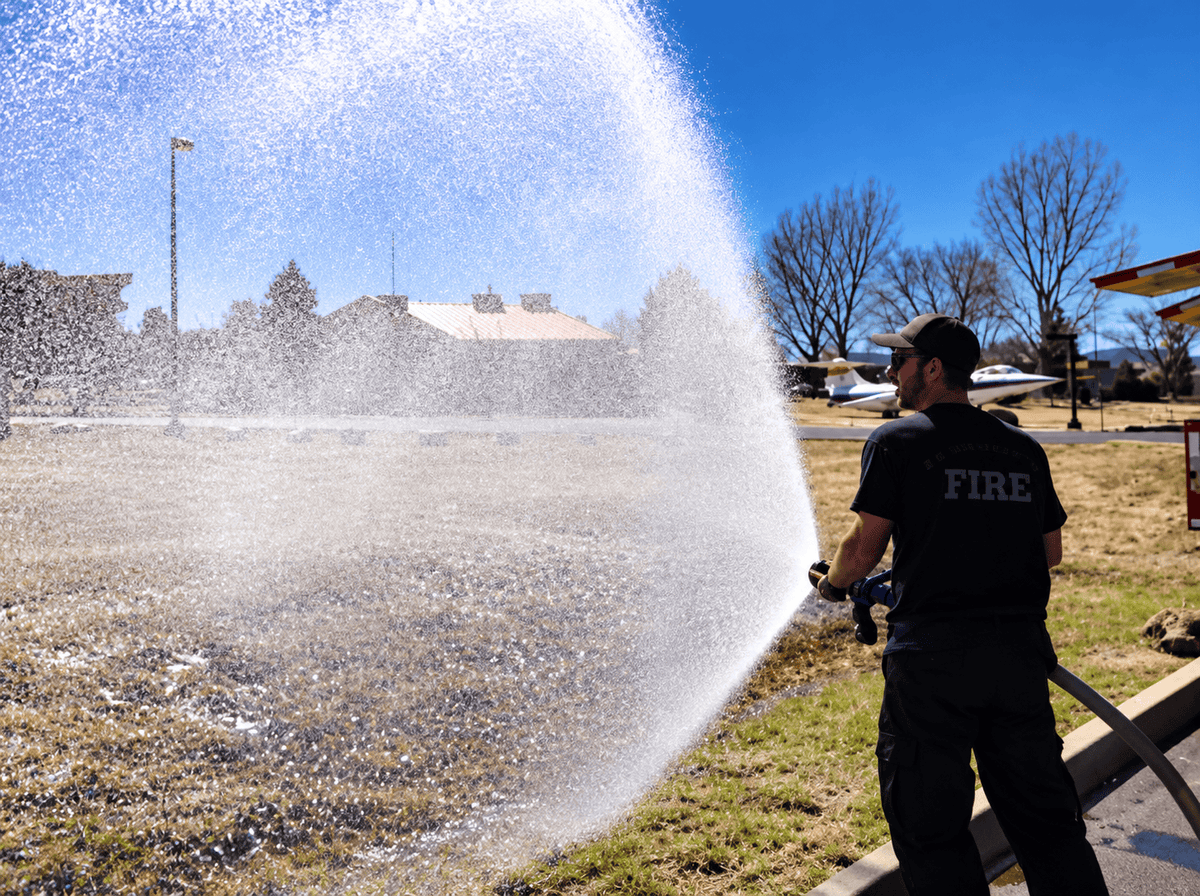

• Constant flow performance through fog and straight stream patterns
• Advanced Rylostatic teeth improve fog patterns and reduce maintenance
• Metal ball valve with front and rear seals for high-pressure operation
• Rated for operating pressures up to 580 PSI
• Deeper selector ring ribs for improved grip with gloved hands
• Lightweight E-LITE aluminum construction
• Durable brass internal components
• Ergonomically designed for easy operation and handling
• Removable pistol grip for operational flexibility
• Raised lug indicators for quick pattern and flow identification
• Individually tested for safety and reliability
Specifications
• Manufacturer: C & S Supply
• Model: BD1560
• Product Type: Select Gallonage Fire Nozzle
• Flow Settings: 15, 30, 50, and 60 GPM @ 100 PSI
• Standard Operating Pressure: 100 PSI
• Low Pressure Options: 50 PSI and 75 PSI available on select models
• Maximum Operating Pressure: 580 PSI
• Thread Options: NST (NH) or NPSH

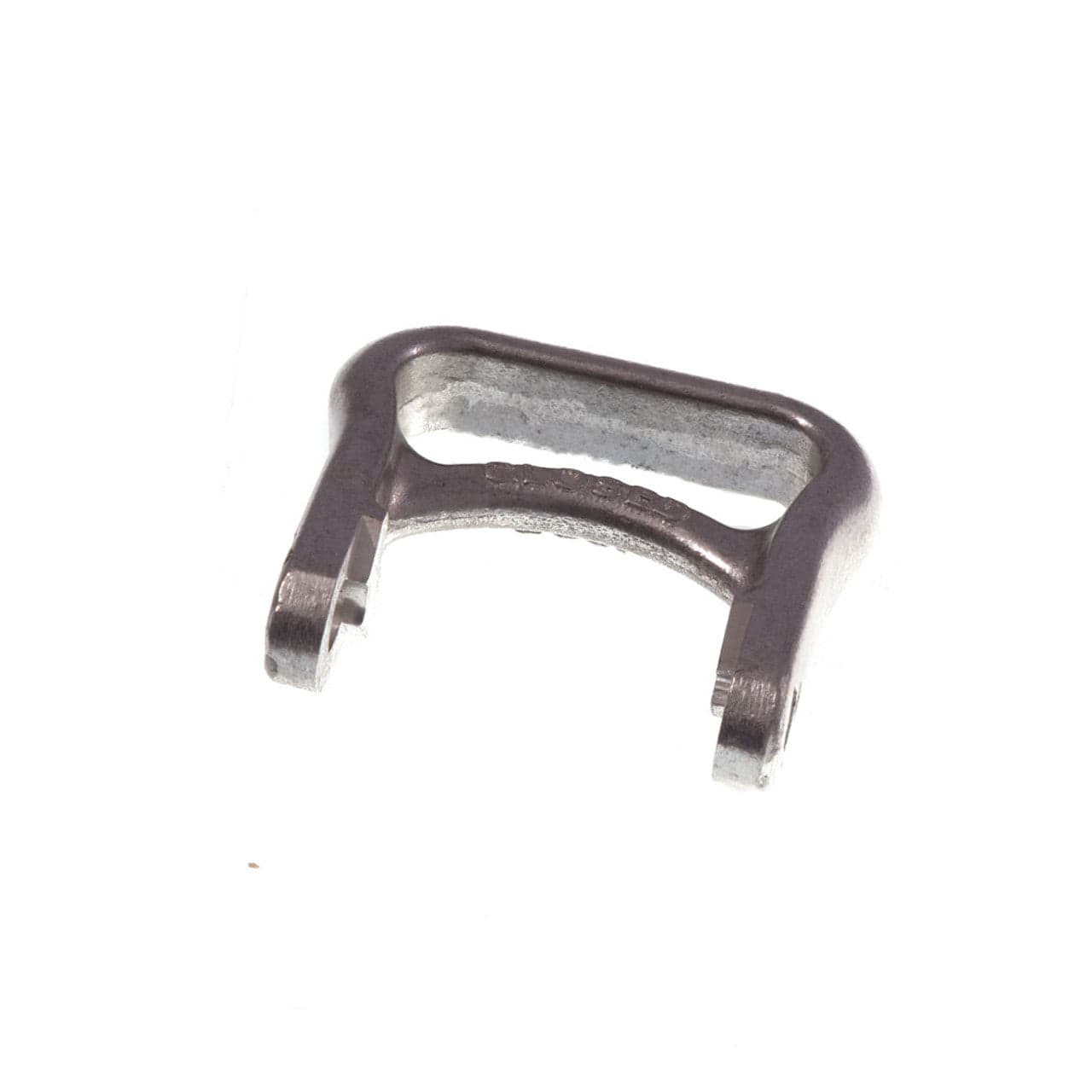

• Bail Handle Options: Composite or Metal
• Available Configurations:
• NST with Composite Bail Handle
• NST with Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Metal Bail Handle
• Construction Material: E-LITE Aluminum with Brass Internal Components
• Stream Patterns: Fog to Straight Stream
• Teeth Type: Integrated Rylostatic Teeth
• Flush Capability: Yes
• Pistol Grip: Removable
• Weight: 3.60 lbs
• Dimensions: 8" W x 8.5" H x 5" D
• Length: 8.5"
• Compliance: NFPA 1964, EN 15182-4 Type 3
• Application: Wildland Firefighting, Forestry Operations, Municipal Fire Service, Industrial Fire Protection, Gas Cooling, Mop-Up Operations, and General Fire Suppression Applications
