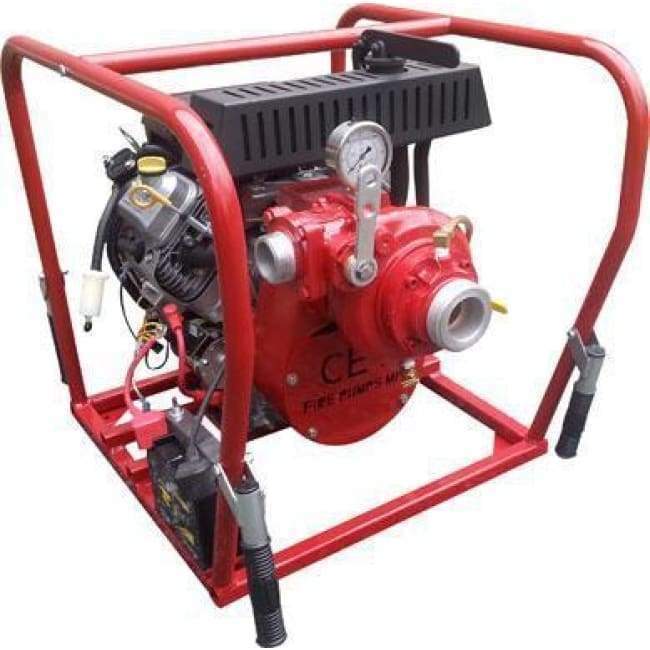

ENGINE SPECIFICATIONS
Vanguard. model 3564, air cooled engine
2-cylinder, 4-stroke gasoline engine
Electric start with recoil start as backup
6 gallon (22 l) detachable fuel tank
INCLUDED ACCESSORIES
16 Amps alternator
12-V Battery
Pressure gauge
PUMP UNIT SPECIFICATIONS
Transmission drive C.E.T. single stage centrifugal pump
Belt drive transmission
Pump body made from high resistant aluminum alloy
Bronze impeller
Mechanical shaft seal
Stainless steel pump shaft
Exhaust priming system, guaranteed up to 20' (6 meter lift)
One 1-1/2'' (38mm) delivery outlet with Fire Type swing-out valve
One 2-1/2'' (65 mm) suction inlet
Dimensions: Length: 27.5'' (700 mm); Width: 22'' (559 mm); Height: 24'' (610 mm)
Weight: 162 lbs (74 kg)
PERFORMANCE
- 115 GPM @ 50 PSI
- 100 GPM @ 100 PSI
- 70 GPM @ 150 PSI
- 45 GPM @ 200 PSI
- 20 GPM @ 250 PSI
