The CET 18 HP Portable High Pressure Pump - Electric Start is a powerful firefighting pump engineered for applications requiring exceptional pressure performance and dependable operation in the field. Powered by a Briggs & Stratton Vanguard V-Twin engine, this pump delivers pressures up to 300 PSI, making it ideal for wildland firefighting, long hose lays, relay pumping, remote water supply, structure protection, and other high-pressure firefighting operations. The engine and pump are mounted within a rugged steel protective frame featuring shock-absorbing mounts and folding handles for enhanced durability and portability in demanding environments. The pump is also available in skid-mounted configurations for specialized applications.
Built around a transmission-driven C.E.T. single-stage centrifugal pump, this unit features a high-strength aluminum alloy pump body, bronze impeller, stainless steel pump shaft, and mechanical shaft seal for long-lasting reliability. The belt-driven transmission maximizes efficiency while the exhaust priming system provides dependable priming capability with lifts up to 20 feet. Complete with a 16-amp alternator, 12-volt battery, and pressure gauge, this pump is designed to deliver reliable high-pressure performance wherever water must be moved over long distances or difficult terrain.
Features
• Briggs & Stratton Vanguard 3564 air-cooled gasoline engine
• V-Twin, 2-cylinder, 4-stroke engine design
• 12V electric start with recoil start backup
• Heavy-duty steel protective frame with shock-absorbing mounts and folding handles
• Transmission-driven C.E.T. single-stage centrifugal pump
• Belt-drive transmission for efficient power transfer
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Stainless steel pump shaft
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 1-1/2" discharge outlet with Fire Type swing-out valve
• One 2-1/2" suction inlet
• Includes 16-amp alternator and 12-volt battery
• Pressure gauge included
• Ideal for high-pressure firefighting, relay pumping, and long hose lay applications
• Available with NST/NH or NPSH threaded connections
• Available in skid-mounted configurations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: Portable High Pressure Pump
• Model: PFP-18HPVGD-HP
• Engine: Briggs & Stratton Vanguard 3564
• Engine Type: Air-Cooled, V-Twin, 4-Stroke Gasoline
• Starting System: 12V Electric Start with Recoil Backup
• Fuel Tank Capacity: 6 Gallons (22 L)
• Pump Type: Transmission-Driven C.E.T. Single-Stage Centrifugal Pump
• Drive Type: Belt Drive Transmission
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Pump Shaft Material: Stainless Steel
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 1-1/2" with Fire Type Swing-Out Valve
• Thread Options:
-
Variant 1: NST/NH Threads
-
Variant 2: NPSH Threads
• Alternator Output: 16 Amps
• Battery: 12-Volt Included
• Dimensions: 27-1/2" L x 22" W x 24" H
• Weight: 162 lbs.
• Maximum Pressure: 300 PSI
• Warranty: 3-Year Limited Warranty

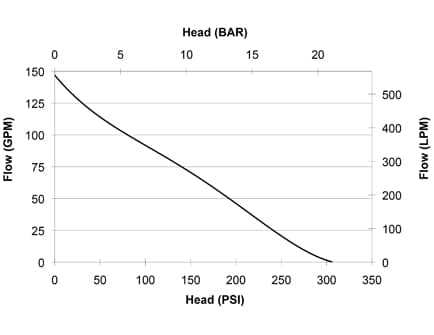

Performance
• 115 GPM @ 50 PSI
• 100 GPM @ 100 PSI
• 70 GPM @ 150 PSI
• 45 GPM @ 200 PSI
• 20 GPM @ 250 PSI
• Maximum Pressure: 300 PSI
