Description

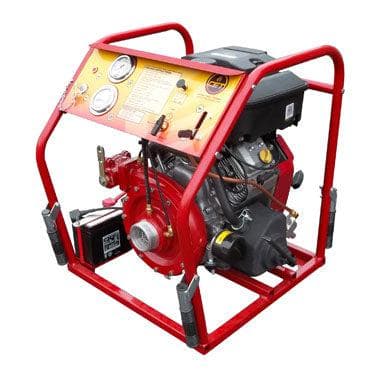

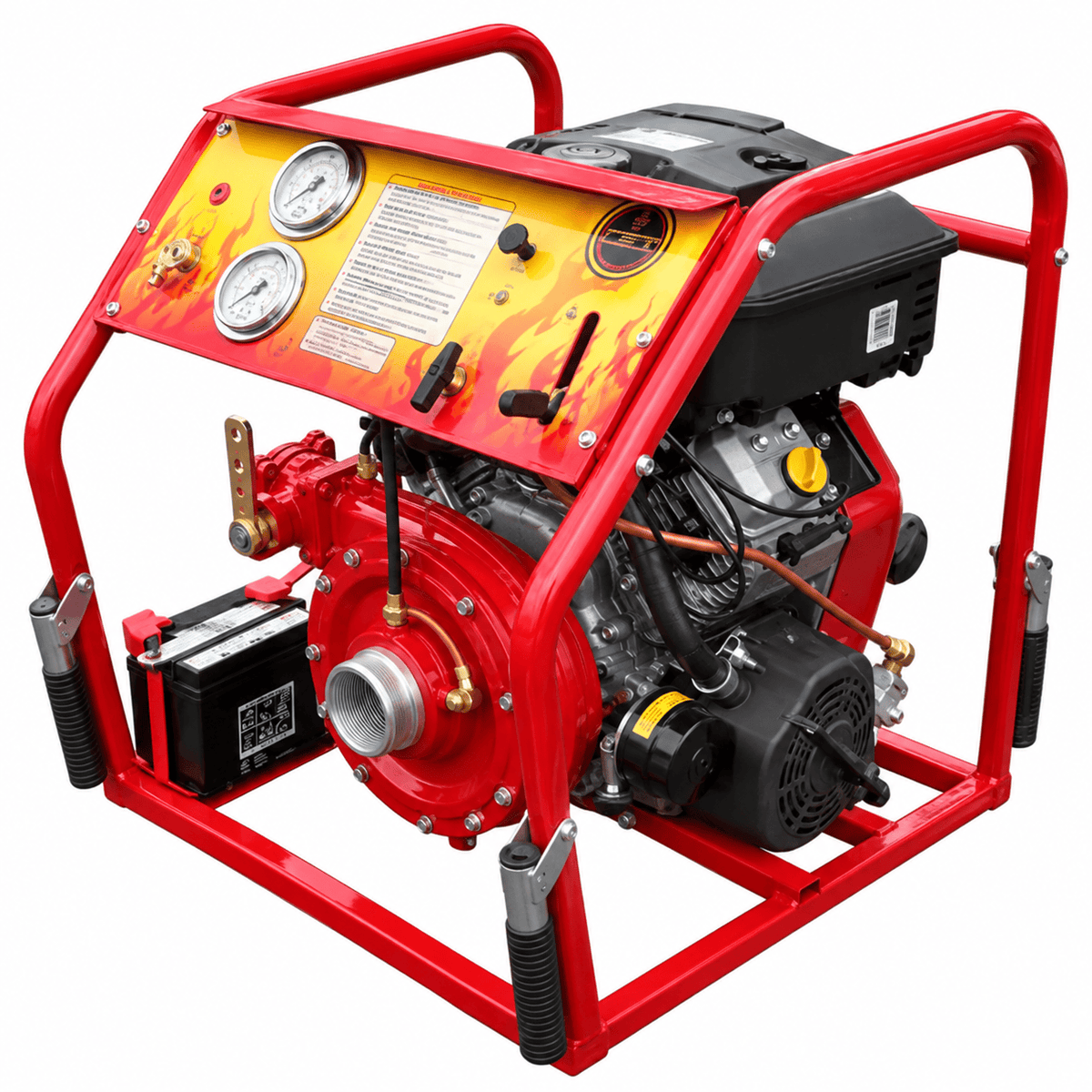

This 18 hp Portable High Volume Pump - Electric Start & 1 Discharge Line is the most suitable for drop-in units. The engine and pump are mounted on a steel protective frame with folding handles.
ENGINE SPECIFICATIONS
- Vanguard, model 350000, air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- Electric start with recoil start as backup
- 2.25 Gallons (8.5 l) integrated fuel tank
PERFORMANCE
- 390 GPM @ 25 PSI
- 310 GPM @ 50 PSI
- 200 GPM @ 75 PSI
- 130 GPM @ 100 PSI
- 45 GPM @ 125 PSI
PUMP UNIT SPECIFICATIONS
- C.E.T. single stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- One 2 1 ⁄2” (65 mm) delivery outlet with Fire Type swing-out valve
- One 4” (100 mm) suction inlet.
- Dimensions: Length: 23.5” (575 mm);
Width: 22” (539 mm); Height: 25.5” (625 mm) - Weight: 175 lbs (79 kg)
