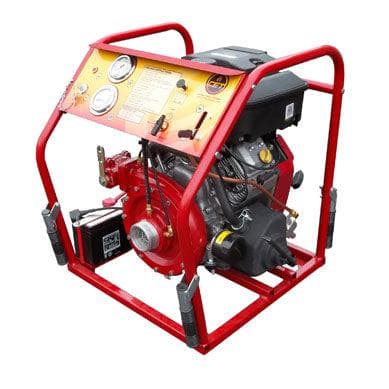

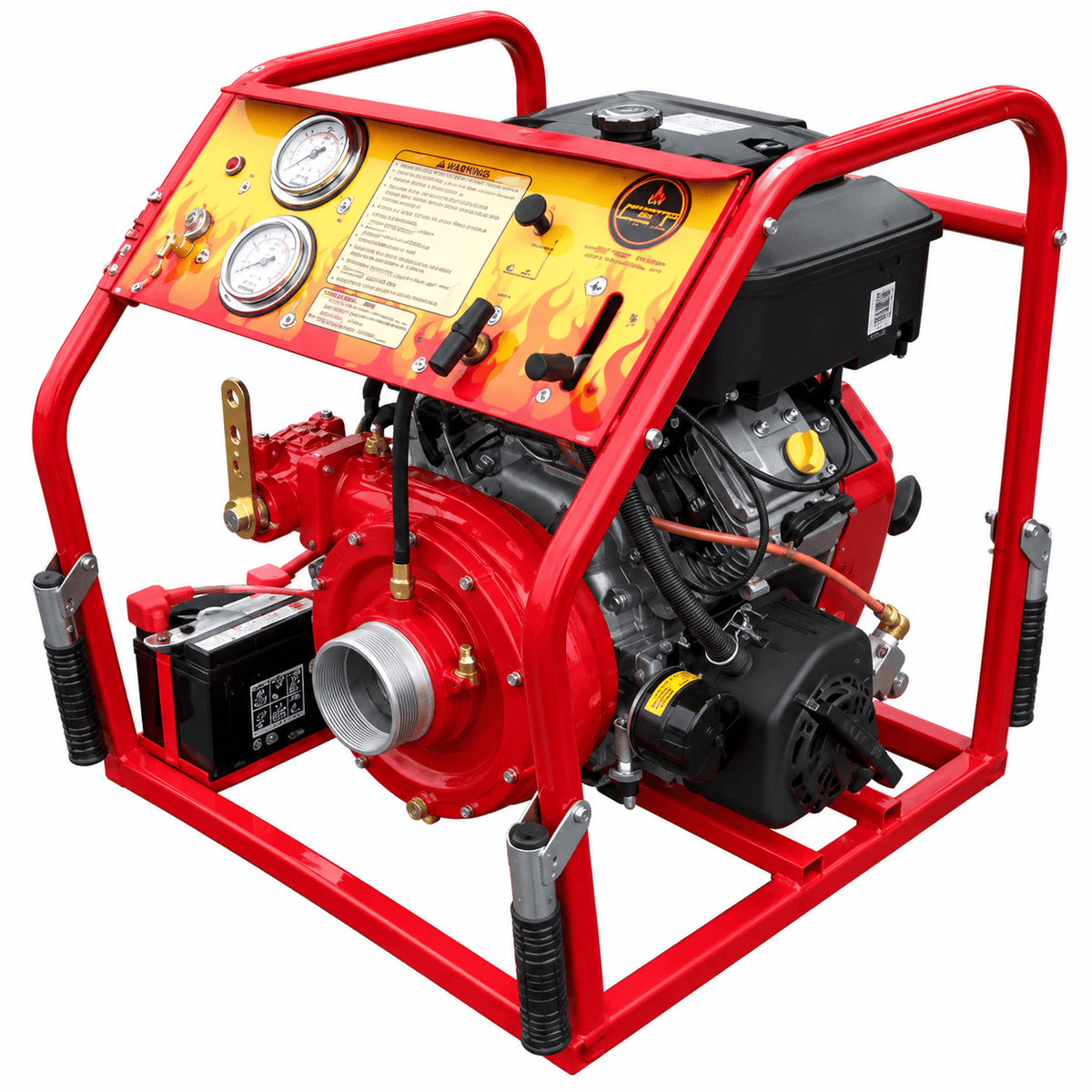

This 18 hp Portable Mid Range Pump - Electric Start is the most suitable for drop-in units. The engine and pump are mounted on a steel protective frame with folding handles.
ENGINE SPECIFICATIONS
350000 Vanguard air cooled engine
V-Twin cylinder, 4-stroke gasoline engine
Electric start with recoil start as backup
2.25 Gallons (8.5 l) integrated fuel tank
PERFORMANCE
255 GPM @ 25 PSI
220 GPM @ 50 PSI
140 GPM @ 100 PSI
75 GPM @ 150 PSI
30 GPM @ 175 PSI
PUMP UNIT SPECIFICATIONS
C.E.T. single stage centrifugal pump
Pump body made from high resistance aluminum alloy
Bronze impeller
Mechanical shaft seal
Exhaust priming system, guaranteed up to 20’ (6 meter) lift
One 1 1⁄2" (38mm) delivery outlet with Fire Type swing-out valve
