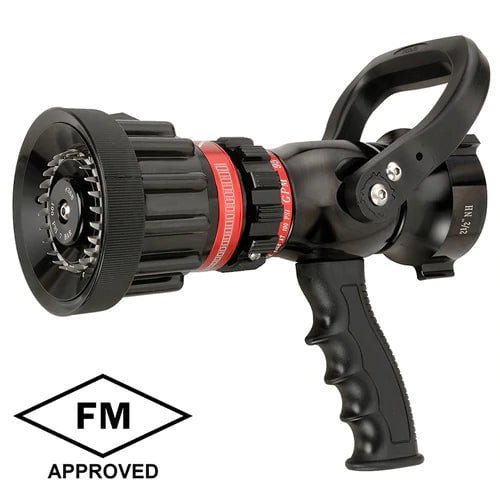

The 2-1/2" High-Range Selectable Gallonage Nozzle is a versatile combination nozzle designed to provide firefighters with multiple flow options for demanding fire attack and exposure protection operations. Featuring five selectable flow settings ranging from 95 to 250 GPM, this nozzle allows operators to quickly adapt water delivery to changing fireground conditions while maintaining excellent stream performance and firefighter protection.
Built with durable, precision-machined components, the nozzle features stainless steel spinning teeth that produce a wide, dense fog pattern for effective cooling and suppression. The ergonomic pistol grip, heavy-duty chrome-plated shutoff ball, and continuous swivel inlet provide superior handling and dependable operation. With FM Approval and NFPA 1964 compliance, this nozzle is engineered to deliver reliable performance in municipal, industrial, and specialty firefighting applications.
Features
• Selectable flow rates of 95, 125, 150, 200, and 250 GPM
• Combination straight stream and adjustable fog pattern operation
• Wide, dense fog pattern for enhanced firefighter protection
• Stainless steel spinning teeth for superior fog pattern performance
• Heavy-duty chrome-plated shutoff ball for smooth operation and long service life
• Flow pattern detents provide positive positioning and smooth adjustment
• Raised lug for easy pattern identification while wearing gloves
• Laser-etched anodized label for enhanced durability and visibility
• Flushes debris without changing pattern or shutting down flow
• Ergonomic pistol grip for improved handling and control
• Continuous female swivel inlet with stainless steel strainer
• Precision-machined components require minimal maintenance
• FM Approved
• NFPA 1964 compliant
Specifications
• Style: 1368
• Product Type: High-Range Selectable Gallonage Combination Nozzle
• Flow Rates: 95, 125, 150, 200, and 250 GPM (360, 475, 550, 750, and 950 LPM)
• Operating Pressure: 100 PSI (7 BAR)
• Waterway Size: 1-3/8"
• Inlet Size: 2-1/2" (65 mm) NH or NPSH
• Teeth Type: Stainless Steel Spinning
• Length: 11.0" (260 mm)
• Weight: 6.3 lbs. (2.8 kg)
• Certifications: FM Approved, NFPA 1964 Compliant
