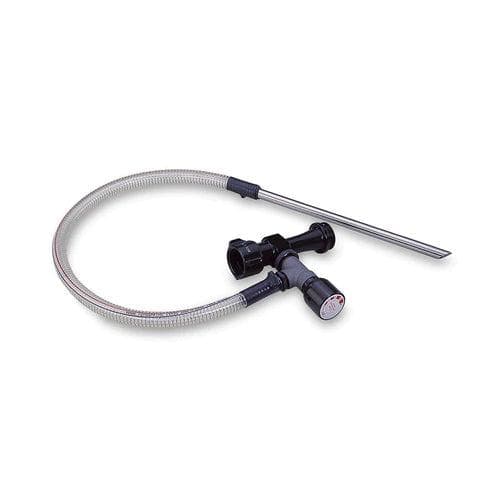

2-1/2" In-Line Foam Eductor 250 GPM

• Eductors are rated for optimum flow at 200 psi (14 bar) inlet pressure
• Works well with nozzles rated at 75 psi (5 bar) and 100 psi (7 bar)
• Ball check valve prevents back flow into foam concentrate
• Supplied with clear foam 9' pickup hose and 15" stainless steel tube
• Pickup rate may be set at any position between 0% to 6% with detentes at 1/4, 1/2, 1, 3, and 6%

Specifications

• Model: 5205-250
• Flow Rate:    250 GPM (950 LPM)

• Operating Pressure:  75 psi (5 bar), 100 psi (7 bar), 200 psi (14 bar)
• Inlet: 2-1/2" (65 mm) NH

• Outlet:  2-1/2" (65 mm)NH
• Foam Proportioning: 1/4%, 1/2%, 1%, 3%, 6%
• Material: Alloy
• Length:  12" (305 mm)
• Weight: 8 lbs (3.6 kg)
