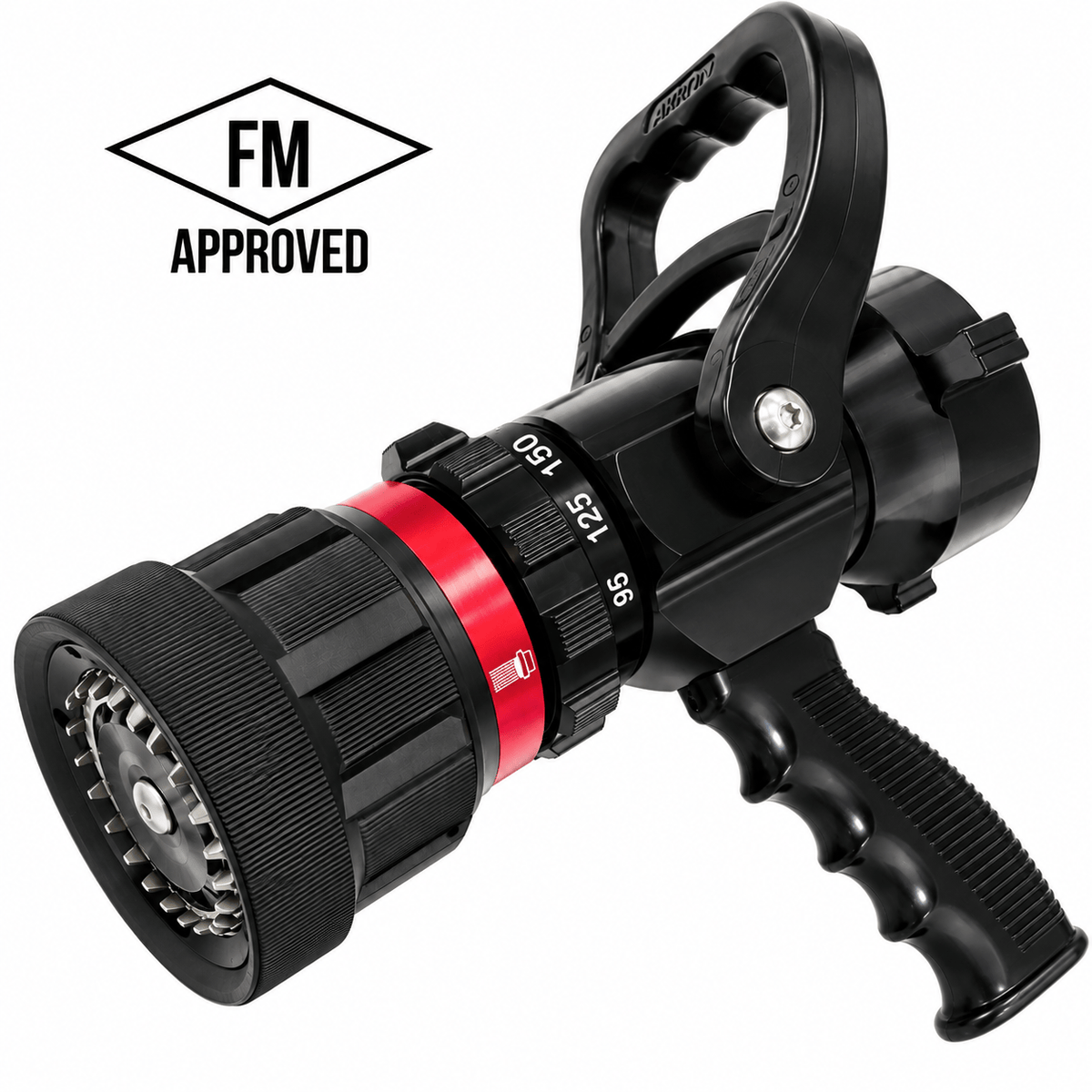

The 2.5" NH Selectable Gallonage Nozzle with Pistol Grip (60-200 GPM) is a versatile, FM-approved firefighting nozzle designed to provide dependable stream performance across a wide range of firefighting applications. Featuring five selectable flow settings from 60 to 200 GPM, this nozzle allows operators to quickly adjust water delivery while maintaining a constant flow rate regardless of stream pattern.
Constructed from lightweight hard-coat anodized aluminum with durable stainless steel components, this nozzle is engineered for long service life in demanding firefighting environments. The integrated pistol grip improves handling and control, while stainless steel spinning teeth create a wide protective fog pattern for firefighter safety. A simple quarter-turn adjustment transitions quickly from straight stream to fog, making this nozzle ideal for municipal, industrial, marine, and emergency response operations.
Features
• Five selectable flow settings: 60, 95, 125, 150, and 200 GPM at 100 PSI
• Constant gallonage design maintains selected flow rate throughout all stream patterns
• Integrated pistol grip for improved nozzle control and handling
• Combination fog and straight stream capabilities
• Quarter-turn operation from straight stream to fog pattern
• Stainless steel spinning teeth produce a wide protective fog pattern
• Flushes debris without shutting down nozzle operation
• Positive detent flow selector for quick and accurate flow adjustments
• Smooth ball shutoff for dependable flow control
• Durable stainless steel components and metal selector ring
• Protective front bumper helps prevent damage during use
• Lightweight hard-coat anodized aluminum construction
• FM Approved and compliant with NFPA 1964 standards
Specifications
• Flow Control Style: Selectable gallonage, constant flow design
• Flow Settings @ 100 PSI (7 Bar): 60, 95, 125, 150, and 200 GPM (230, 360, 475, 550, and 750 LPM)
• Coupling Size: 2.5 in. NH
• Material: Lightweight hard-coat anodized aluminum with stainless steel components
• Length: 272 mm (10.7 in.)
• Weight: 3.1 kg (6.8 lbs.)
• Shutoff Type: Ball shutoff
• Certification: FM Approved
• Compliance: NFPA 1964
