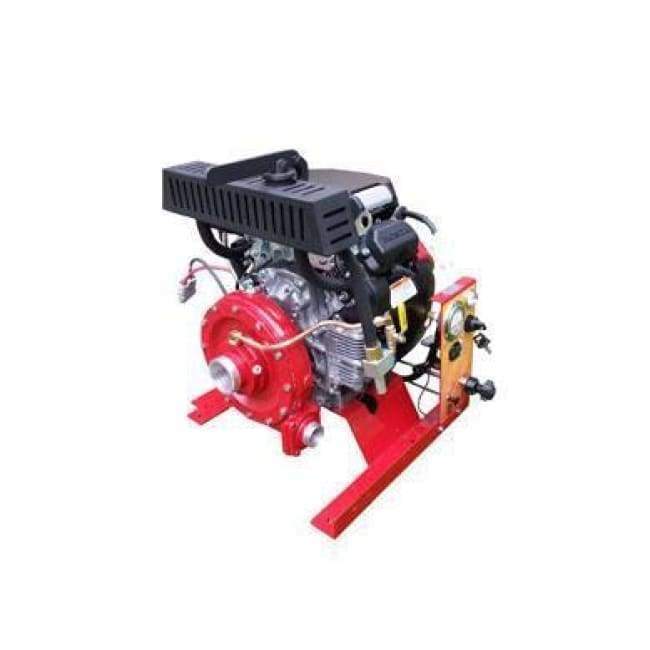

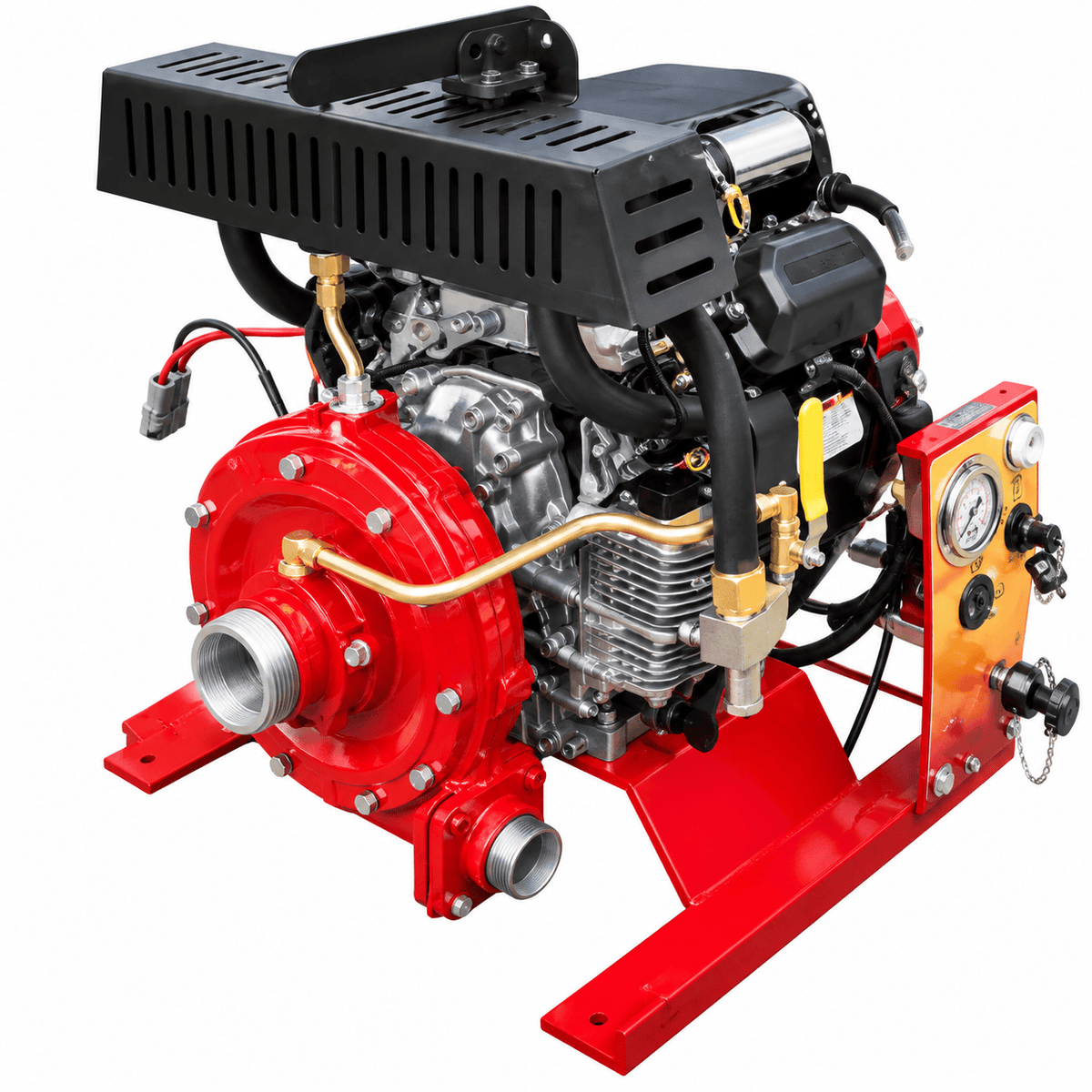

The CET 20 HP Skid Mounted Mid Range Honda Pump - Electric Start is a powerful pressure and volume firefighting pump designed to deliver an exceptional balance of flow and pressure in a compact skid-mounted configuration. Powered by a reliable Honda GX630 V-Twin engine, this pump is ideal for drop-in units, tanker support, relay pumping, wildland firefighting, and emergency water supply operations. Mounted on a durable skid frame, the pump can be easily installed on trucks, trailers, UTVs, and custom firefighting apparatus. The skid-mounted design provides a space-efficient solution while maintaining the performance required for demanding fire suppression and water transfer applications. The pump is also available in a portable version.
Built around a C.E.T. single-stage centrifugal pump, this unit features a high-strength aluminum alloy pump body, bronze impeller, and mechanical shaft seal for dependable long-term performance. The exhaust priming system provides reliable priming capability with lifts up to 20 feet, while the electric start system and 17-amp charging system ensure dependable operation in the field. Complete with a pressure gauge, low oil alert system, and quick-connect battery connection, this pump is engineered to provide reliable performance across a wide range of firefighting and water movement applications. Available with either NST/NH or NPSH threaded connections to match existing equipment requirements.
Features
• Honda GX630 air-cooled gasoline engine
• V-Twin cylinder, 4-stroke engine design
• Electric start system
• Compact skid-mounted configuration for vehicle and trailer installations
• C.E.T. single-stage centrifugal pump
• High-resistance aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 1-1/2" discharge outlet
• One 2-1/2" suction inlet
• Pressure gauge included
• Low oil alert protection system
• Quick-connect for 12-volt battery
• Charge coil 12V-17A charging system
• Ideal for drop-in units, firefighting, relay pumping, and water transfer applications
• Available with NST/NH or NPSH threaded connections
• Also available in a portable version
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: Skid Mounted Mid Range Honda Pump
• Model: SM-PFP-20HPHND-MR
• Engine: Honda GX630
• Engine Type: Air-Cooled, V-Twin, 4-Stroke Gasoline
• Starting System: Electric Start
• Charging System: Charge Coil 12V-17A
• Pump Type: C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: High-Resistance Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 1-1/2"
• Thread Options:
-
Variant 1: NST/NH Threads
-
Variant 2: NPSH Threads
• Dimensions: 19-3/4" L x 24-1/4" W x 24-3/4" H
• Weight: 147.4 lbs.
• Maximum Flow: 300 GPM
• Maximum Pressure: 205 PSI
• Warranty: 3-Year Limited Warranty
Performance
• Maximum Flow: 300 GPM
• Maximum Pressure: 205 PSI
• 240 GPM @ 50 PSI
• 180 GPM @ 100 PSI
• 125 GPM @ 150 PSI
• 60 GPM @ 200 PSI
