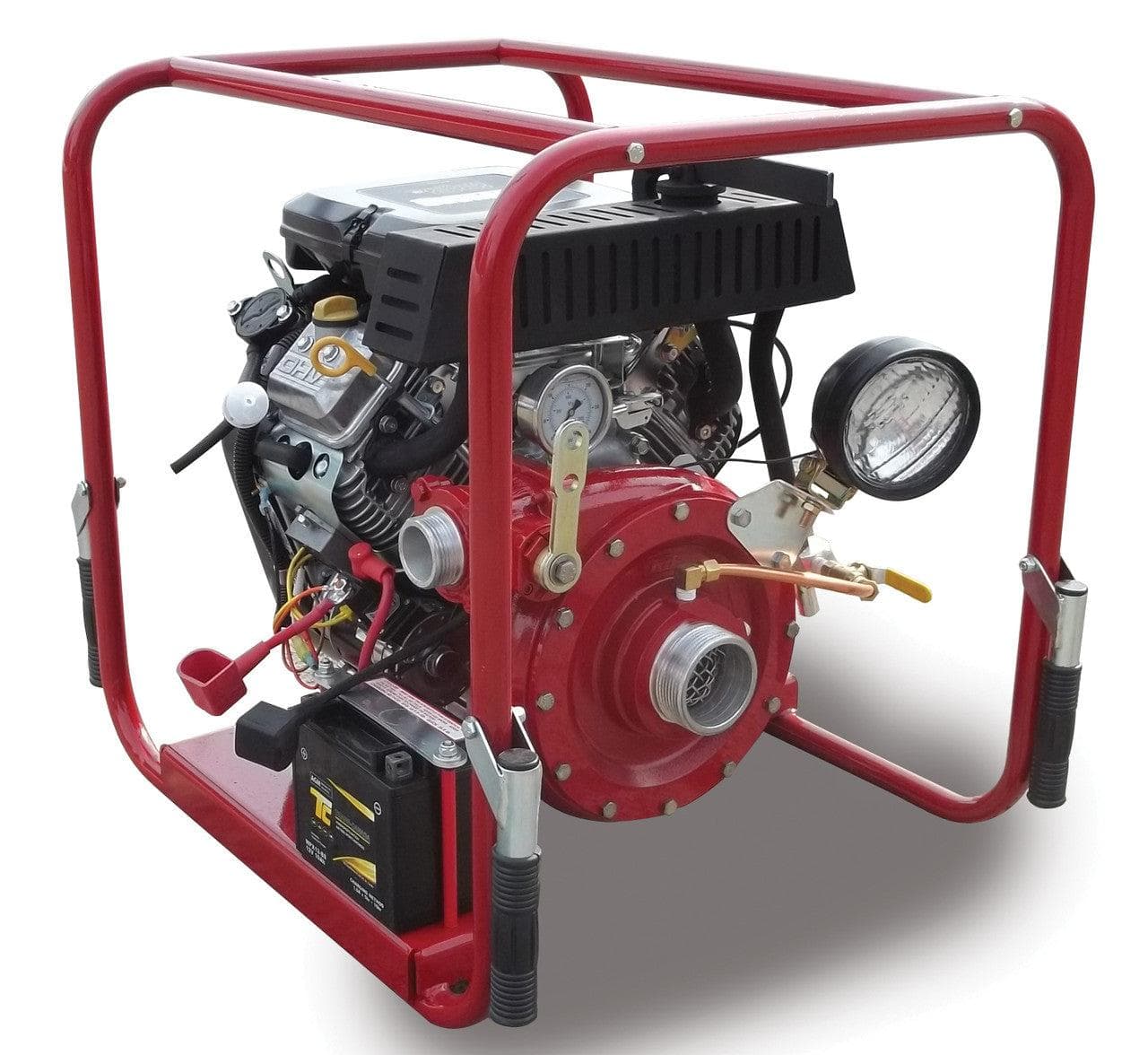

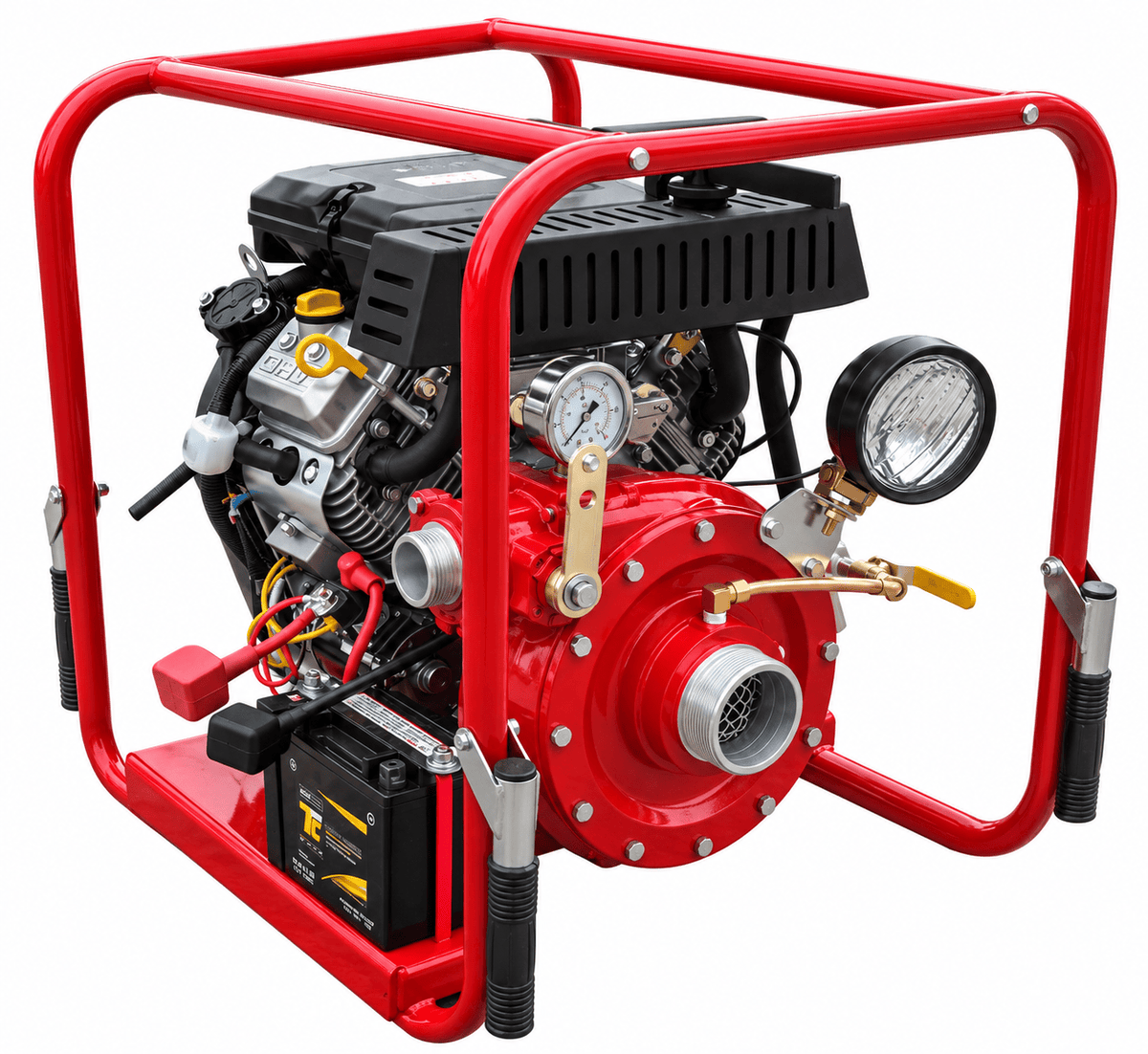

23 hp Portable Mid Range Pump - Electric Start

This 23 hp Portable Mid Range Pump - Electric Start is the most suitable for drop-in units. The engine and pump are mounted on a steel protective frame with folding handles.

ENGINE SPECIFICATIONS

• Vanguard, model 380000, air cooled engine
• V-Twin cylinder, 4-stroke gasoline engine
• Electric start with recoil start as backup
• 6 gallon (22 l) detachable fuel tank

PERFORMANCE

• MAX FLOW: 300 GPM
• MAX PRESSURE: 250 PSI
• 265 GPM @ 50 PSI
• 195 GPM @ 100 PSI
• 150 GPM @ 150 PSI
• 80 GPM @ 200 PSI

PUMP UNIT SPECIFICATIONS

• C.E.T. single stage centrifugal pump
• Pump body made from high resistance aluminum alloy
• Bronze impeller
• Mechanical shaft seal
• Exhaust priming system, guaranteed up to 20’ (6 meter) lift
• One 1 1/2" (38mm) delivery outlet with Fire Type swing-out valve
• One 2 1/2" (65mm) suction inlet
• Dimensions: Length: 21 1/4” (540 mm); Width: 26 1/2” (673 mm); Height: 24” (610 mm)
• Weight: 165.2 lbs (75 kg)
