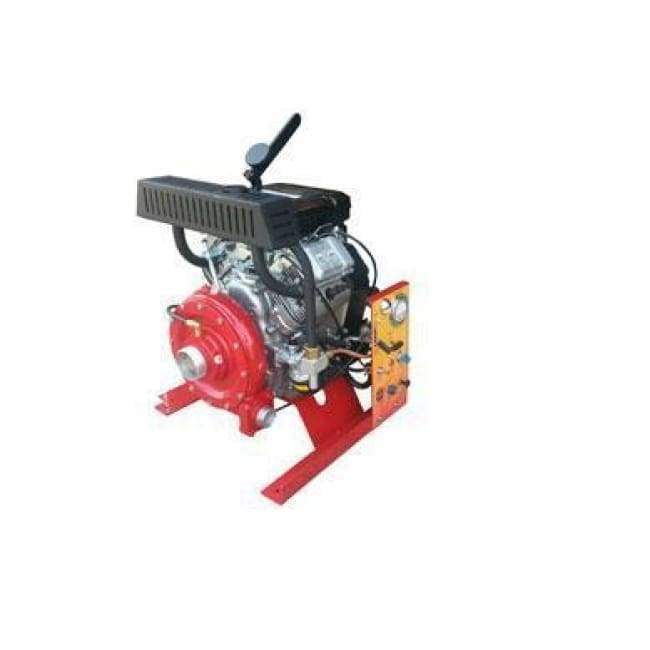

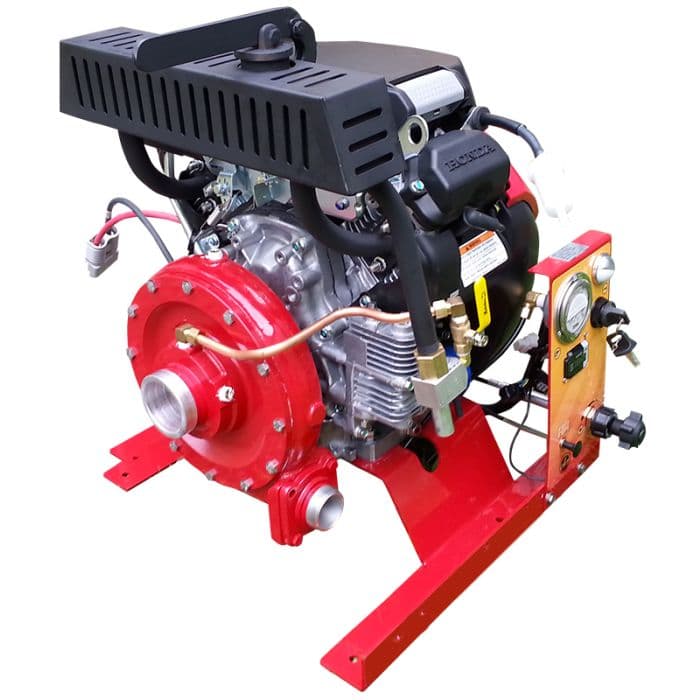

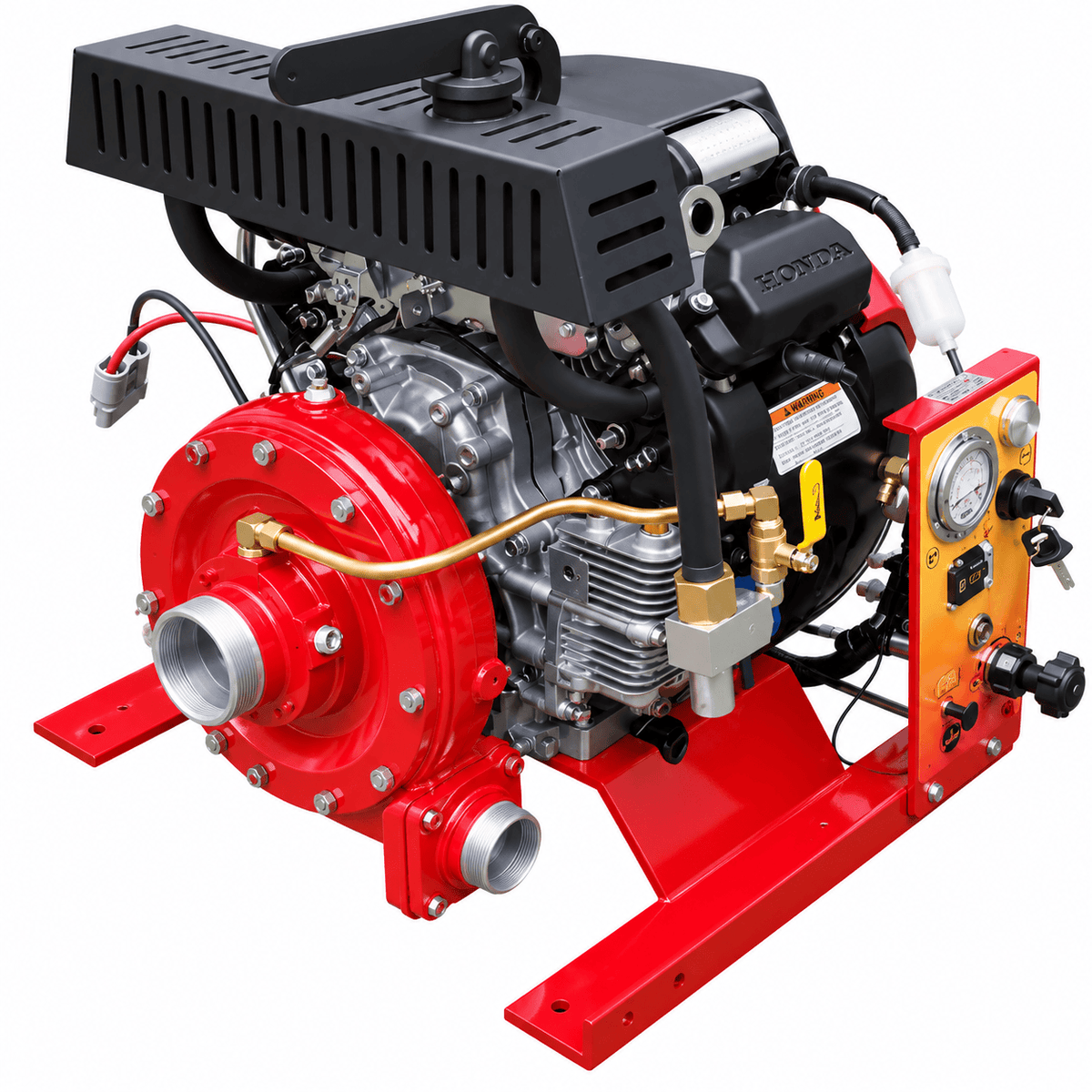

ENGINE SPECIFICATIONS
Vanguard, model 380000, air cooled engine
V-Twin cylinder, 4-stroke gasoline engine
Electric start with recoil start as backup
INCLUDED ACCESSORIES
20 Amps alternator
Pressure gauge
Low oil alert
Quick connect for 12-V battery
PUMP UNIT SPECIFICATIONS
C.E.T. single stage centrifugal pump
Pump body made from high resistance aluminum alloy
Bronze impeller
Mechanical shaft seal
Exhaust priming system, guaranteed up to 20' (6 meter) lift
One 1 1/2" (38mm) NPT-M delivery outlet flange
One 2 1/2" (65mm) suction inlet
Dimensions: Length: 19 1/2" (500 mm); Width: 22 1/2" (570 mm); Height: 25 1/2" (650 mm)
Weight: 147.4 lbs (67 kg)
MAX FLOW : 300 GPM
MAX PRESSURE : 225 PSI
265 GPM @ 50 PSI
150 GPM @ 150 PSI
80 GPM @ 200 PSI
