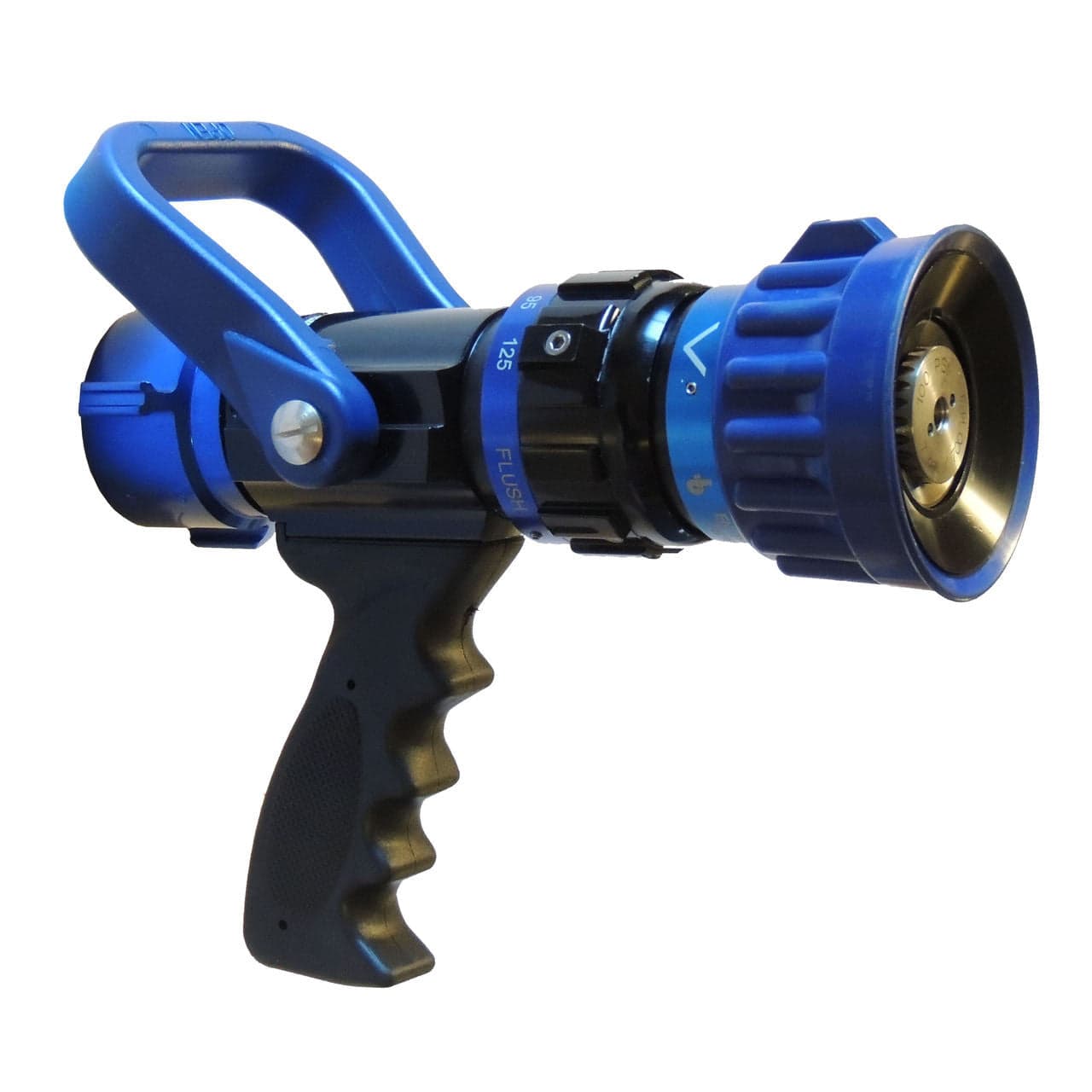

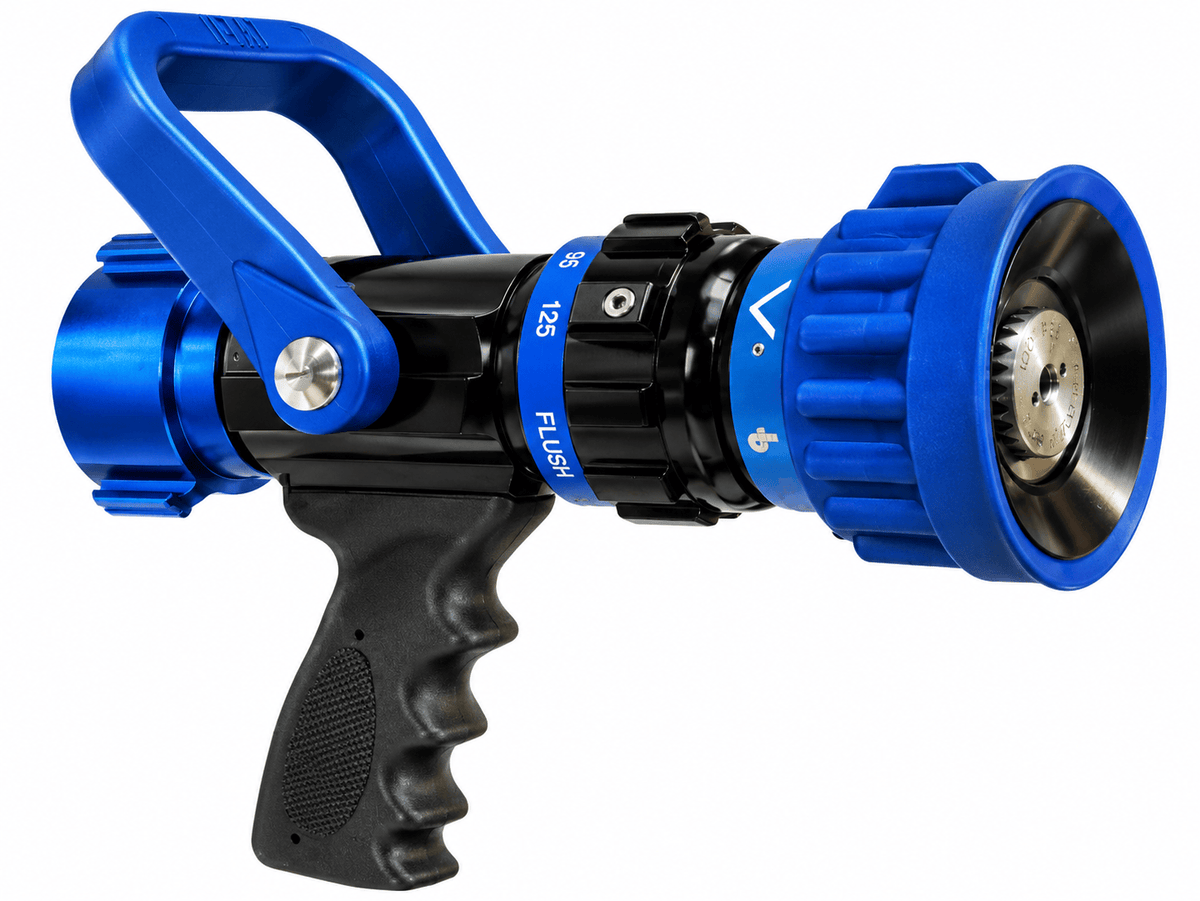

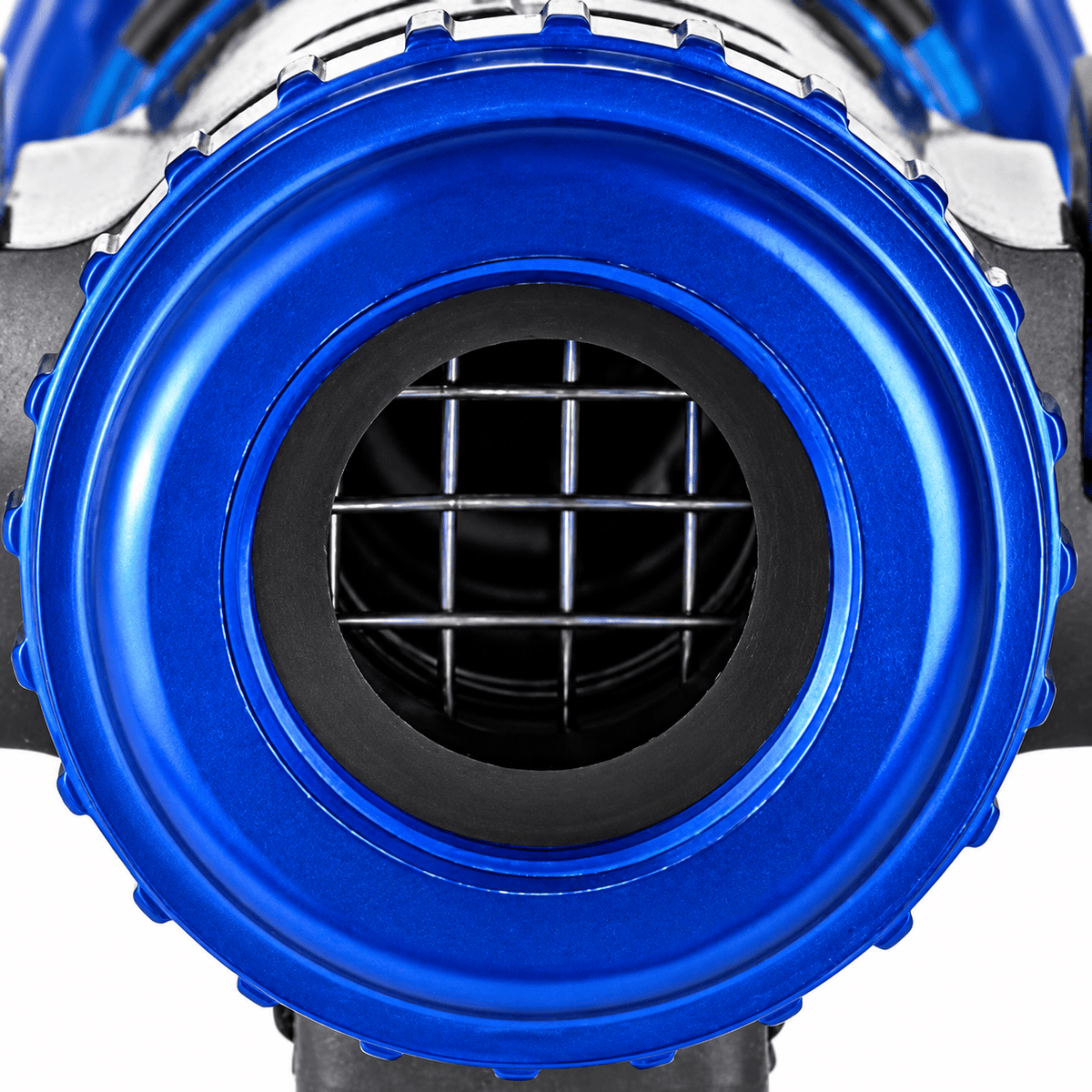

The C&S Supply Blue Devil 30–125 GPM 1-1/2" Select Gallonage Nozzle is a high-performance selectable gallonage nozzle designed to provide exceptional versatility, reliable stream performance, and precise flow control for structural, industrial, municipal, and wildland firefighting applications. Featuring four selectable flow settings of 30, 60, 95, and 125 GPM, firefighters can quickly adjust flow rates without changing stream pattern, allowing for greater flexibility when conditions change on the fireground. We offer this nozzle in four configurations: NST with a composite bail handle, NST with a metal bail handle, NPSH with a composite bail handle, and NPSH with a metal bail handle.
Built around the innovative Blue Devil platform, this nozzle utilizes advanced Rylostatic teeth that are integrated directly into the nozzle head, eliminating exposed spinning or fixed teeth while improving fog pattern performance and reducing maintenance requirements. The durable metal ball valve assembly is designed to operate at pressures up to 580 PSI, while deeper selector ring ribs provide superior grip when wearing firefighting gloves. The flush feature allows debris to be removed without shutting down water flow, and the lightweight E-LITE aluminum construction with brass internal components delivers dependable performance with reduced firefighter fatigue. NFPA 1964 compliant and individually tested, the Blue Devil nozzle is engineered to perform in demanding firefighting environments.
Features
• Four selectable flow settings: 30, 60, 95, and 125 GPM
• Flow selection without changing stream pattern
• Available in four configurations:
• NST with Composite Bail Handle
• NST with Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Metal Bail Handle
• Flush capability allows debris removal without shutting down
• Constant flow performance through fog and straight stream patterns

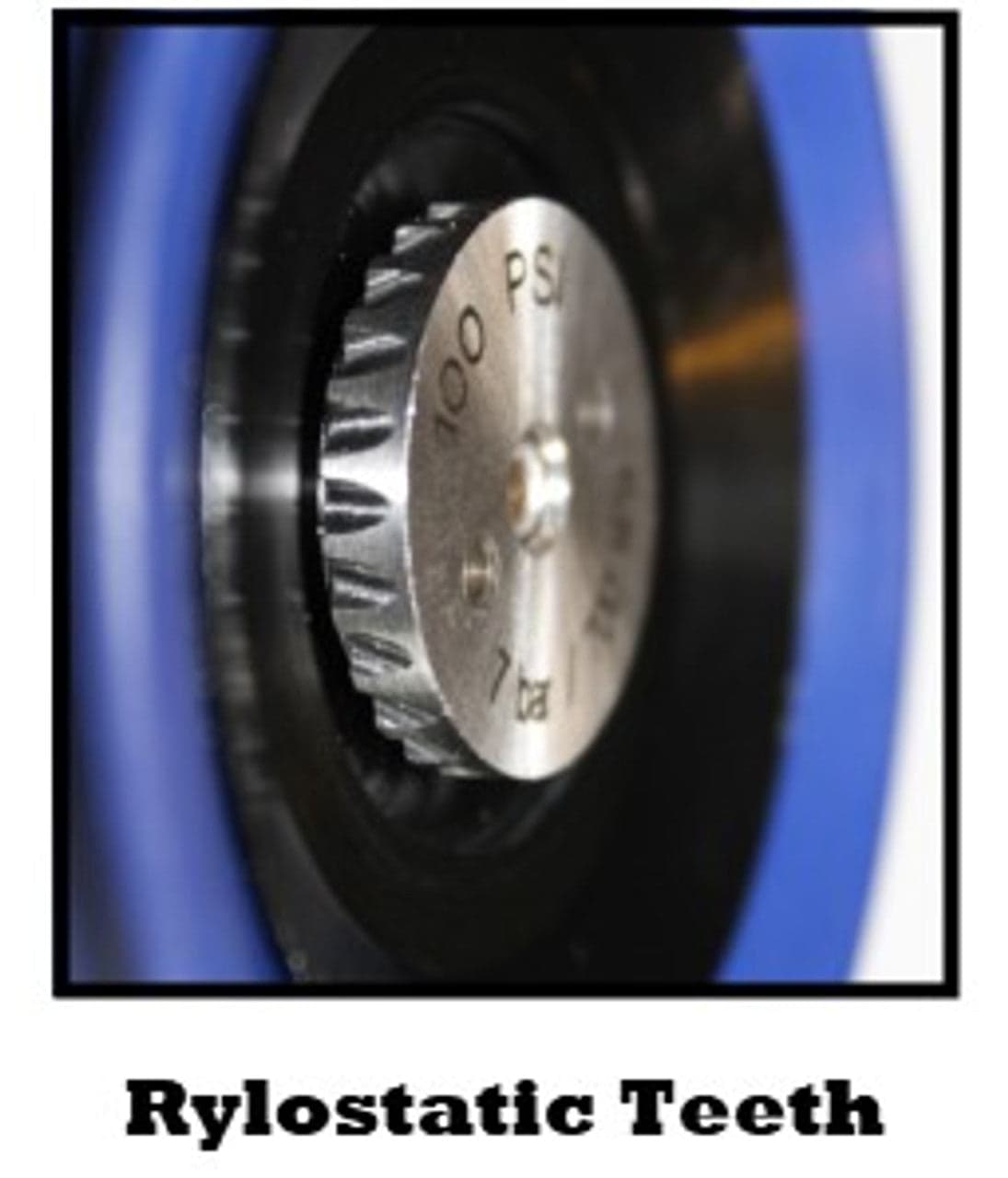

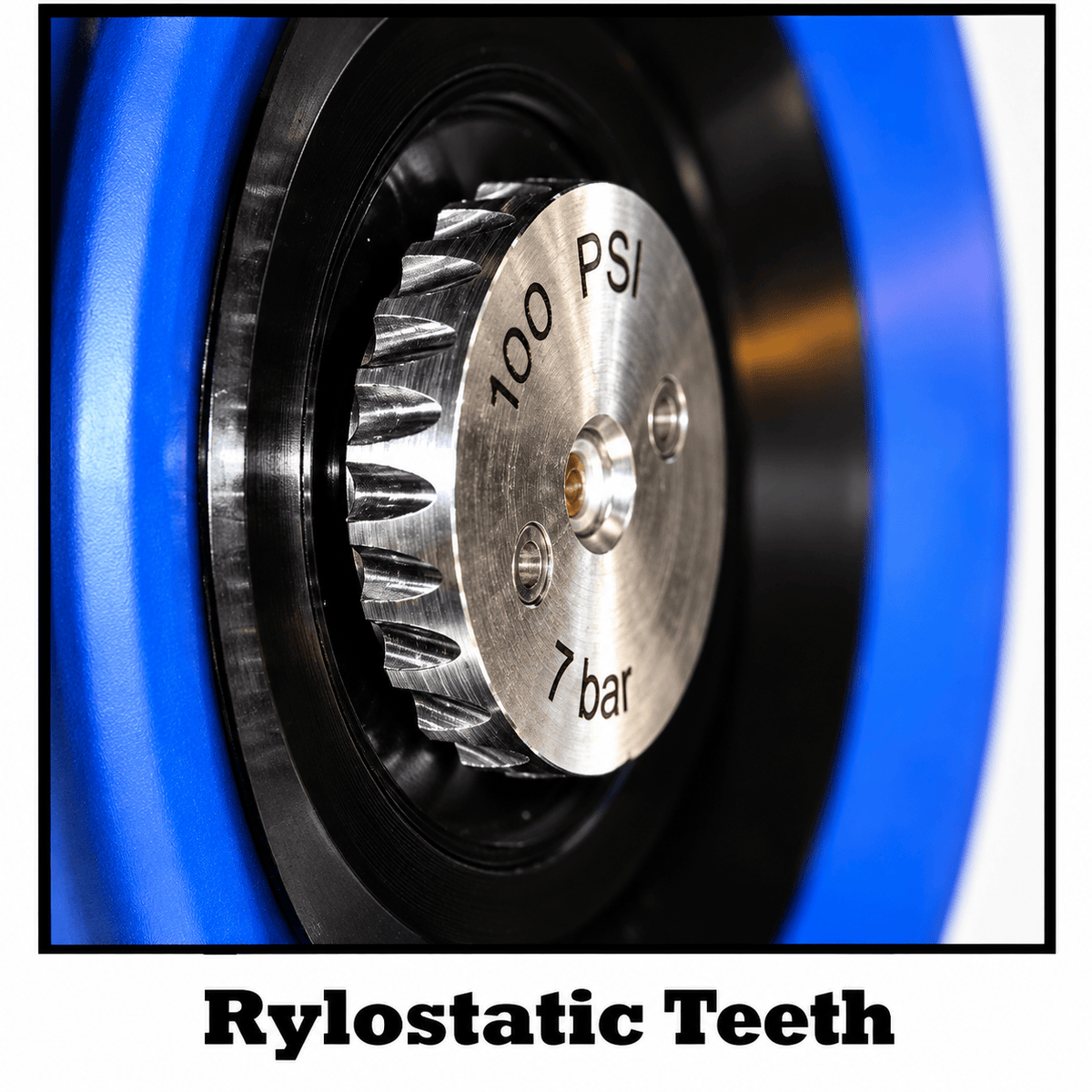

• Advanced Rylostatic teeth improve fog patterns and reduce maintenance
• Metal ball valve with front and rear seals for high-pressure operation
• Rated for operating pressures up to 580 PSI
• Deeper selector ring ribs for improved grip with gloved hands
• Lightweight E-LITE aluminum construction
• Durable brass internal components
• Ergonomically designed for easy operation and handling
• Removable pistol grip for operational flexibility
• 90-degree rotation from 30-degree fog to straight stream
• Raised lug indicators for quick pattern and flow identification
• Individually tested for safety and reliability
• NFPA 1964 compliant
Specifications
• Manufacturer: C&S Supply
• Model: BD3012
• Product Type: Select Gallonage Fire Nozzle
• Flow Settings: 30, 60, 95, and 125 GPM @ 100 PSI
• Standard Operating Pressure: 100 PSI
• Low Pressure Options: 50 PSI and 75 PSI available on select models
• Maximum Operating Pressure: 580 PSI
• Thread Options:
• 1-1/2" NST (NH)
• 1-1/2" NPSH
• Bail Handle Options:

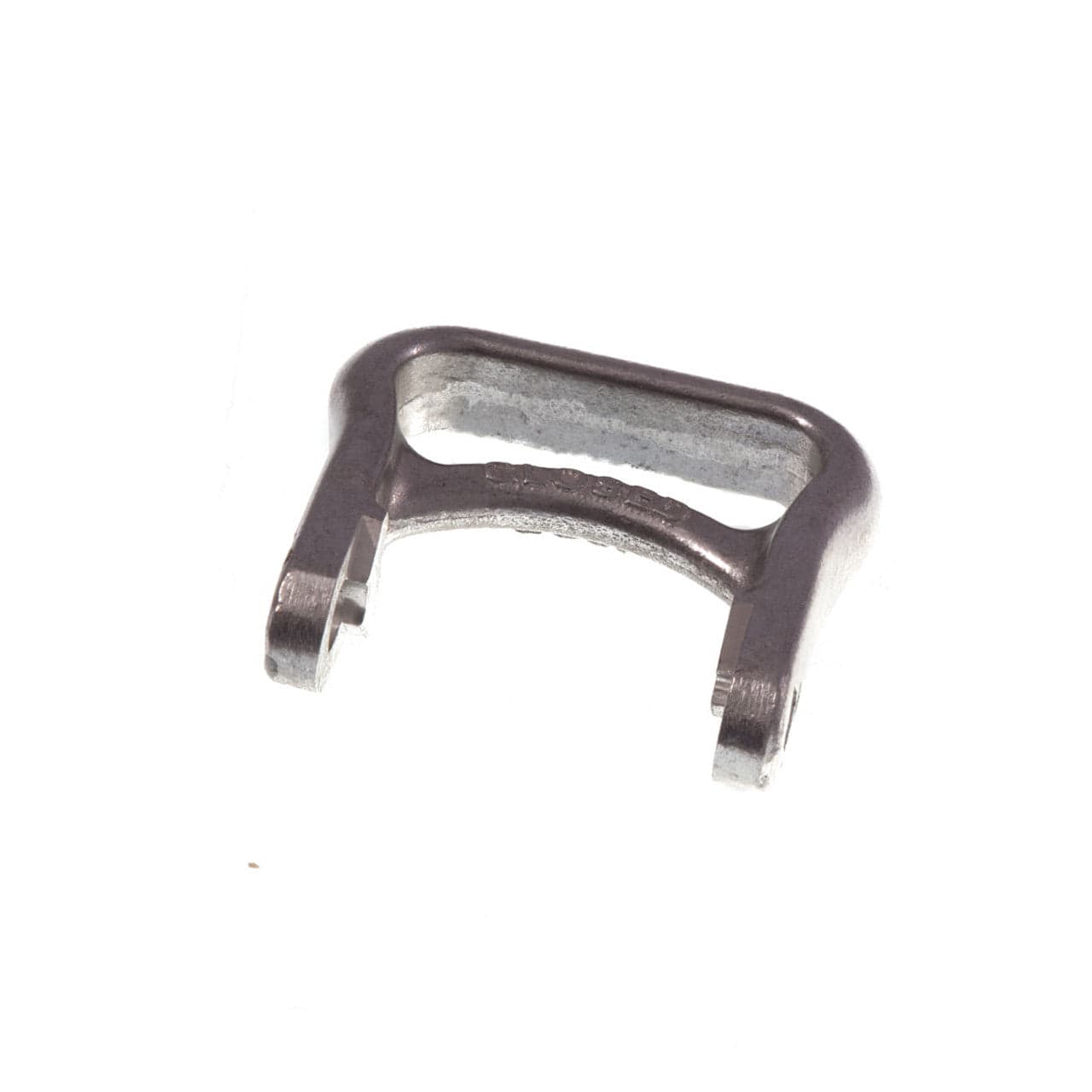

• Composite Bail Handle
• Metal Bail Handle
• Available Configurations:
• NST with Composite Bail Handle
• NST with Metal Bail Handle
• NPSH with Composite Bail Handle
• NPSH with Metal Bail Handle
• Construction Material: E-LITE Aluminum with Brass Internal Components
• Stream Patterns: 30° Fog to Straight Stream
• Teeth Type: Integrated Rylostatic Teeth
• Flush Capability: Yes
• Pistol Grip: Removable
• Weight: 4.20 lbs
• Dimensions: 8" W x 10" H x 5" D
• Compliance: NFPA 1964
• Application: Structural Firefighting, Municipal Fire Service, Industrial Fire Protection, Wildland Firefighting, Forestry Operations, and General Fire Suppression Applications
