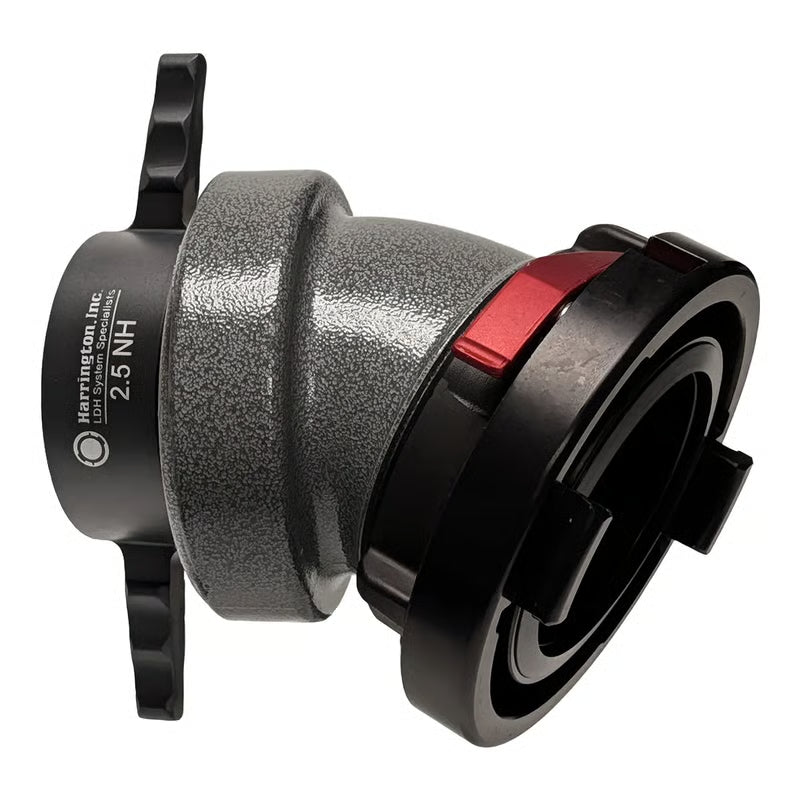

The 30° Elbow Storz Full Time Swivel x NH Female Swivel Long Handle Adapter is designed to provide a reliable connection between Storz-equipped fire department connections and NH-threaded fire service equipment. The 30-degree elbow configuration helps improve hose alignment and reduce stress on connected equipment, making it an excellent choice for FDC building connections and water supply operations.
Constructed from hard coat anodized aluminum and finished with a durable powder coating, these adapters are built to withstand demanding fire service environments. Forged Storz heads provide superior strength and eliminate the hidden imperfections commonly found in cast components. The female swivel connection utilizes stainless steel ball bearings or aluminum roller bearings for smooth operation and long-term durability without the use of plastic components. All adapters are rated for a working pressure of 250 PSI.
Features
• 30° elbow design improves hose alignment and connection angles
• Full Time Swivel Storz connection for flexible installation and operation
• Long handle NH female swivel connection for easy coupling and uncoupling
• Rated for 250 PSI working pressure
• Hard coat anodized aluminum construction to Military Specification Type III
• Durable powder-coated finish for corrosion resistance and long service life
• Forged Storz heads provide maximum strength and reliability
• Female swivel utilizes stainless steel ball bearings or aluminum roller bearings
• No plastic bearing components
• All-metal NFPA-compliant Storz-Lok included on 4" and larger Storz heads
• Ideal for fire department connections (FDC) and water supply systems
Specifications
• Manufacturer: Harrington
• Product Type: 30° Elbow Adapter
• Configuration: Storz Full Time Swivel x NH Female Swivel Long Handle
• Material: Hard Coat Anodized Aluminum
• Anodizing: Military Specification Type III
• Finish: Powder Coated
• Working Pressure: 250 PSI
• Bearing Type: Stainless Steel Ball Bearings or Aluminum Roller Bearings
• Thread Standard: NH (National Hose)
• Application: Fire Department Connections (FDC), Apparatus, and Water Supply Systems
Available Models
• H30E-50-25NHLH/FTS — 5" Storz-Lok Full Time Swivel x 2.5" NH Female Swivel Long Handle
• H30E-50-30NHLH/FTS — 5" Storz-Lok Full Time Swivel x 3" NH Female Swivel Long Handle
• H30E-50-35NHLH/FTS — 5" Storz-Lok Full Time Swivel x 3.5" NH Female Swivel Long Handle
• H30E-50-40NHLH/FTS — 5" Storz-Lok Full Time Swivel x 4" NH Female Swivel Long Handle
• H30E-50-45NHLH/FTS — 5" Storz-Lok Full Time Swivel x 4.5" NH Female Swivel Long Handle
• H30E-50-50NHLH/FTS — 5" Storz-Lok Full Time Swivel x 5" NH Female Swivel Long Handle
• H30E-50-60NHLH/FTS — 5" Storz-Lok Full Time Swivel x 6" NH Female Swivel Long Handle
Add a compatible Storz cap to complete and protect your connection when not in use.
