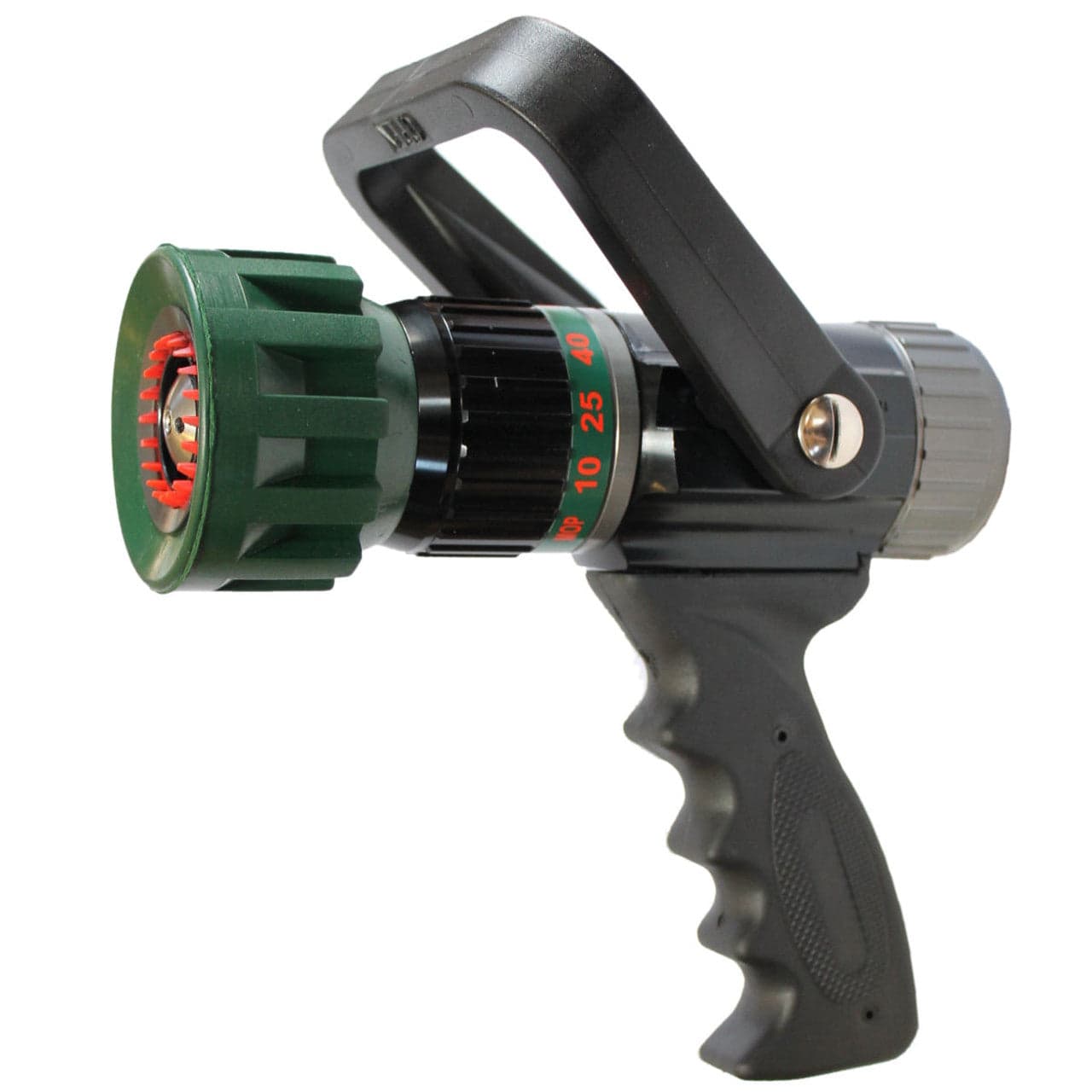

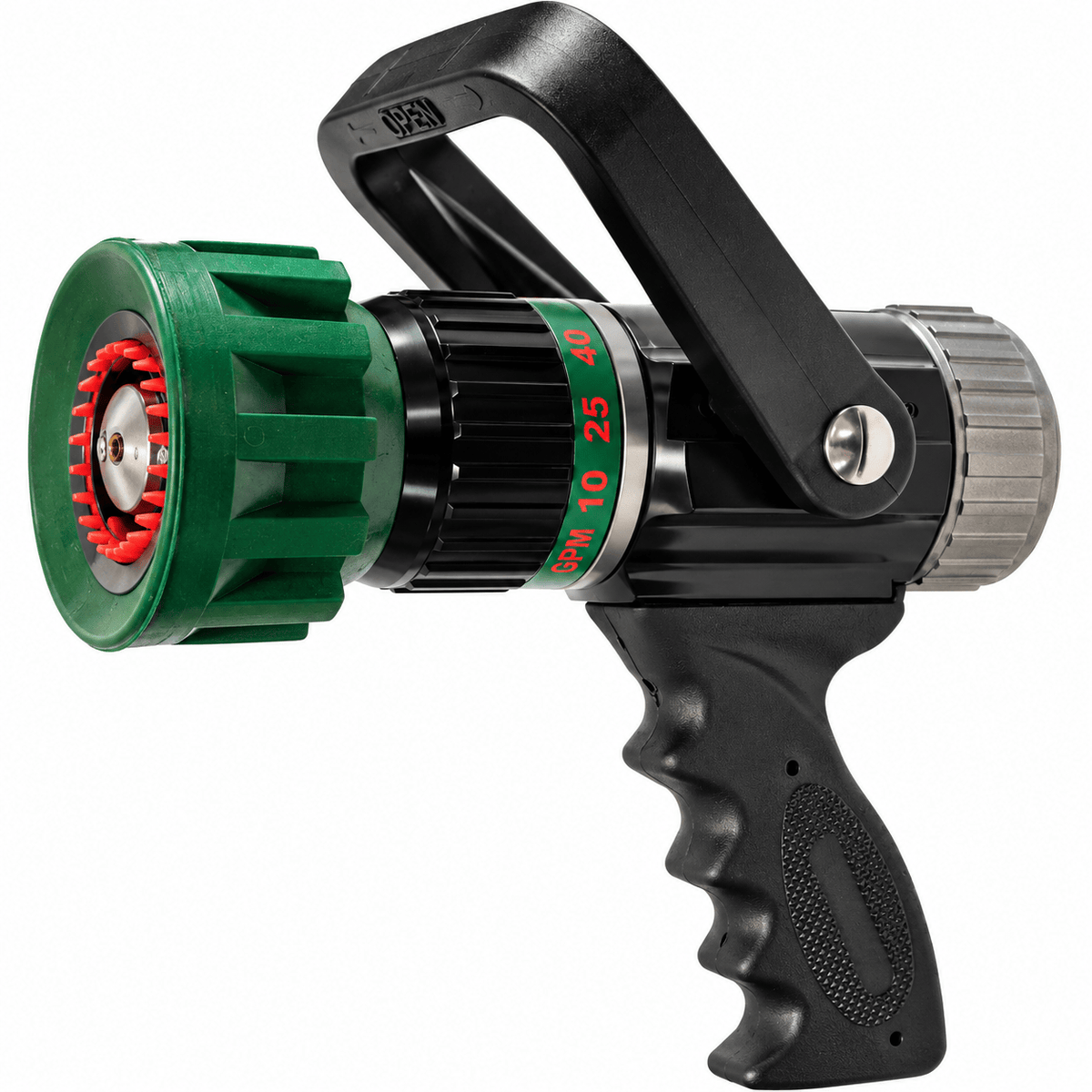

The C&S Supply 5–40 GPM Low Flow 1" Select Gallonage Nozzle is designed to provide exceptional low-flow versatility, dependable stream performance, and operator-controlled flow selection for wildland, forestry, industrial, and specialized firefighting applications. Featuring four selectable flow settings of 5, 10, 25, and 40 GPM, firefighters can quickly adjust flow rates without changing stream pattern, allowing precise water application while conserving water resources. We offer this nozzle in four configurations: 1" NST (NH) with a black composite bail handle, 1" NST (NH) with a black metal bail handle, 1" NPSH with a black composite bail handle, and 1" NPSH with a black metal bail handle.
Constructed from lightweight E-LITE aluminum with durable brass internal components, the SG540 combines rugged durability with low-maintenance operation. The BIMATIC flush system allows debris to be cleared without shutting down water flow, while full-time swivels and spinning teeth provide smooth transitions from fog to straight stream with a simple turn of the bumper. The removable pistol grip enhances handling and control, and each nozzle is individually tested to ensure reliable performance in demanding firefighting environments. The low-flow design makes this nozzle particularly well-suited for mop-up operations, wildland firefighting, gas cooling, and situations where controlled water application is critical.
Features
• Four selectable flow settings: 5, 10, 25, and 40 GPM
• Low-flow design ideal for water conservation and precise application
• Flow can be adjusted without changing stream pattern
• Available with 1" NST (NH) or 1" NPSH threads
• Available with black composite or black metal bail handle
• BIMATIC flush system allows debris removal without shutting down
• Constant flow performance throughout fog and straight stream patterns
• Lightweight E-LITE aluminum construction
• Durable brass internal components
• Full-time swivels and spinning teeth for superior stream control
• Ergonomically designed for easy operation and handling
• Removable pistol grip for operational flexibility
• Compact, lightweight, and low-maintenance design
• Individually tested for safety and reliability
Specifications
• Manufacturer: C&S Supply
• Model: SG540
• Product Type: Low Flow Select Gallonage Fire Nozzle
• Flow Settings: 5, 10, 25, and 40 GPM
• Operating Pressure: 100 PSI
• Inlet Connection Options: 1" NST (NH) or 1" NPSH
• Bail Handle Options: Black Composite or Metal
• Construction Material: E-LITE Aluminum with Brass Internal Components
• Stream Patterns: Fog to Straight Stream
• Flush Capability: BIMATIC Flush System
• Pistol Grip: Removable
• Weight: 3.60 lbs
• Dimensions: 5" W x 10" H x 4" D
• Application: Wildland Firefighting, Forestry Operations, Mop-Up Activities, Gas Cooling, Industrial Fire Protection, and General Water Delivery Applications
