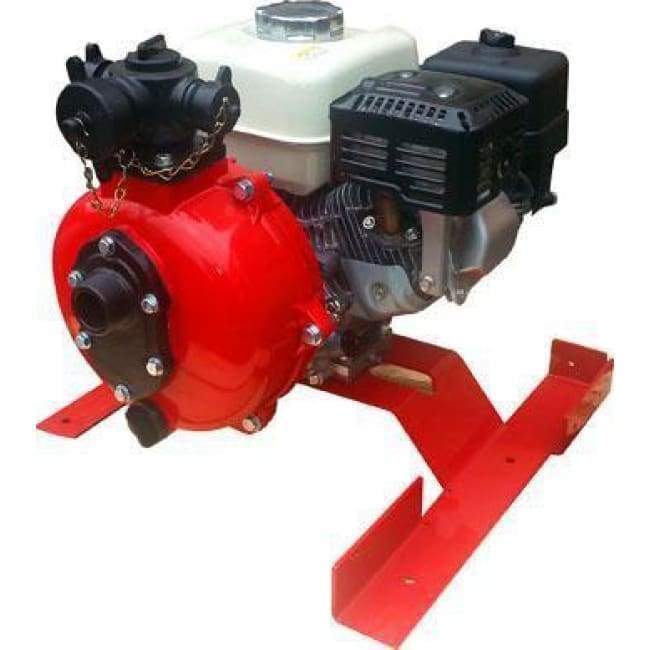

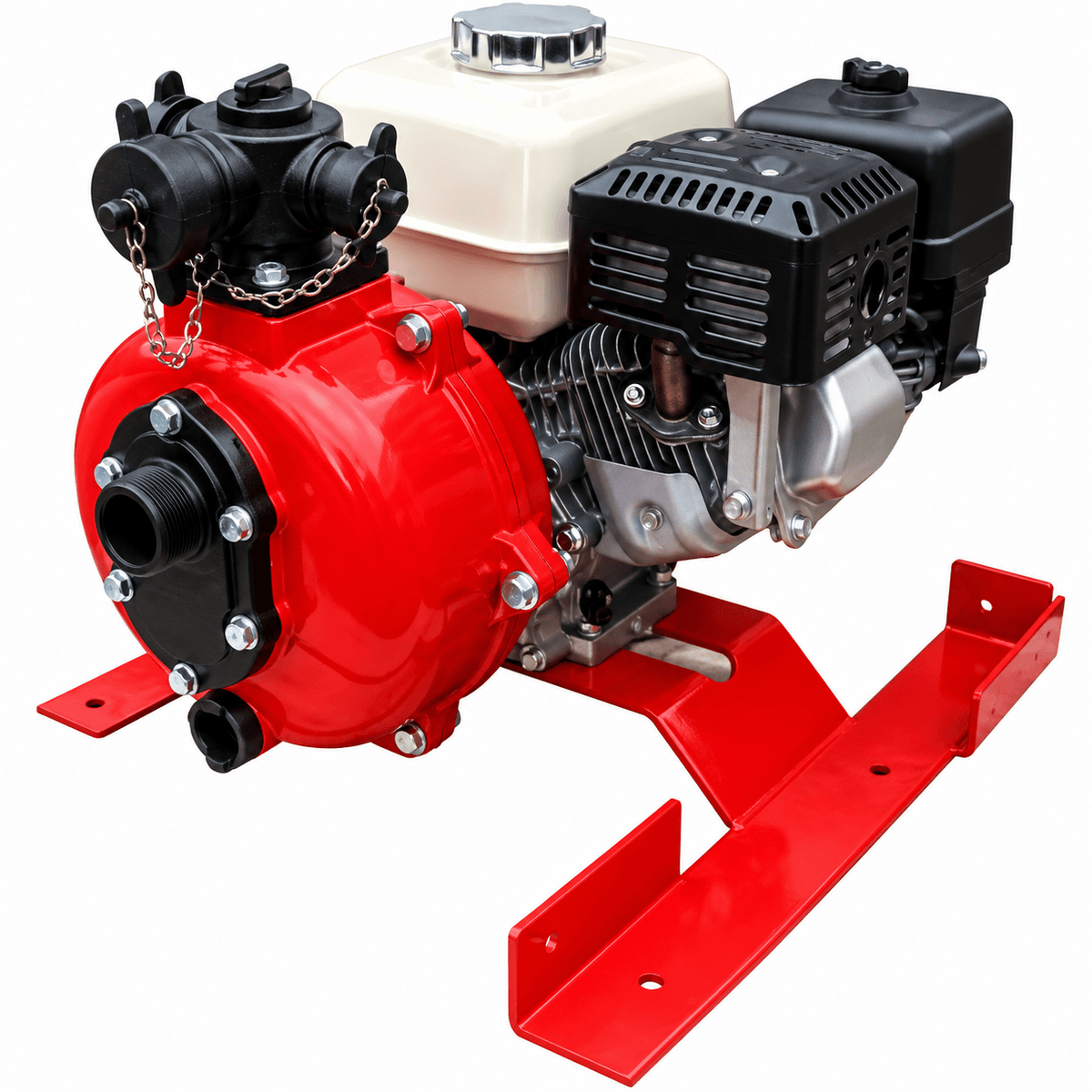

6 hp Skid Mounted High Pressure Pump - Pull Start

SPECIFICATIONS:

• GX200 Honda air cooled engine
• Single cylinder, 4-stroke gasoline engine
• Manual recoil start
• 0.8 gallon (3.1 l) integrated fuel tank
• Low oil alert
• C.E.T. dual stage centrifugal pump
• Pump body made from aluminum
• Aluminum impeller
• Mechanical shaft seal
• Self priming system
• (2) 1"(25 mm) delivery outlets and (1) 1.5"(38 mm) NPSH delivery outlet
• (1) 1.5"(38 mm) NPSH suction inlet
• Length: 19'' (483 mm); Width: 20'' (508 mm); Height: 17 1/2'' (445 mm)
  Wet weight: 79 lbs (36 kg)

PERFORMANCE

• MAX FLOW: 75 GPM
• MAX PRESSURE: 140 PSI
• 70 GPM @ 10 PSI
• 65 GPM @ 50 PSI
• 45 GPM @ 100 PSI
• 35 GPM @ 125 PSI
