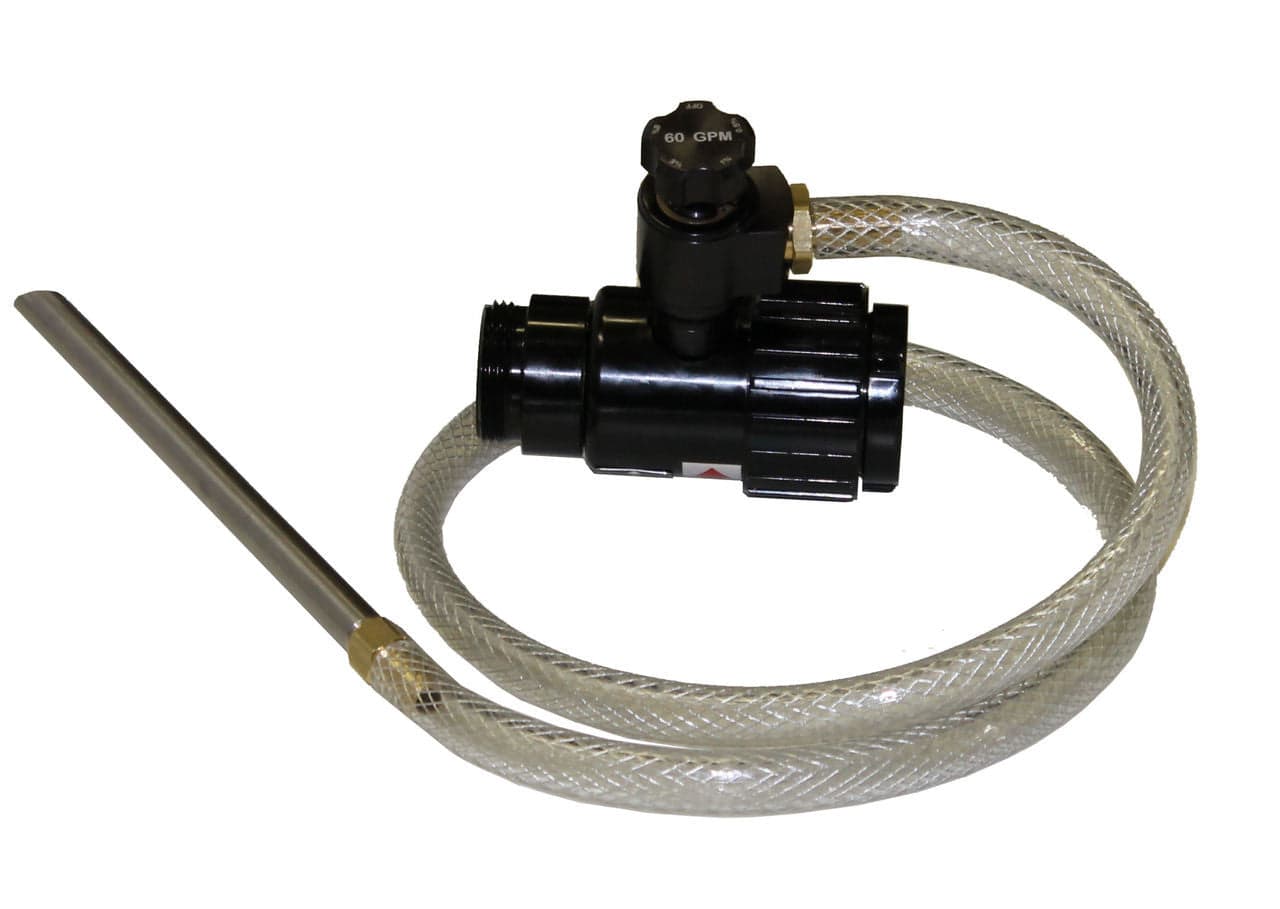

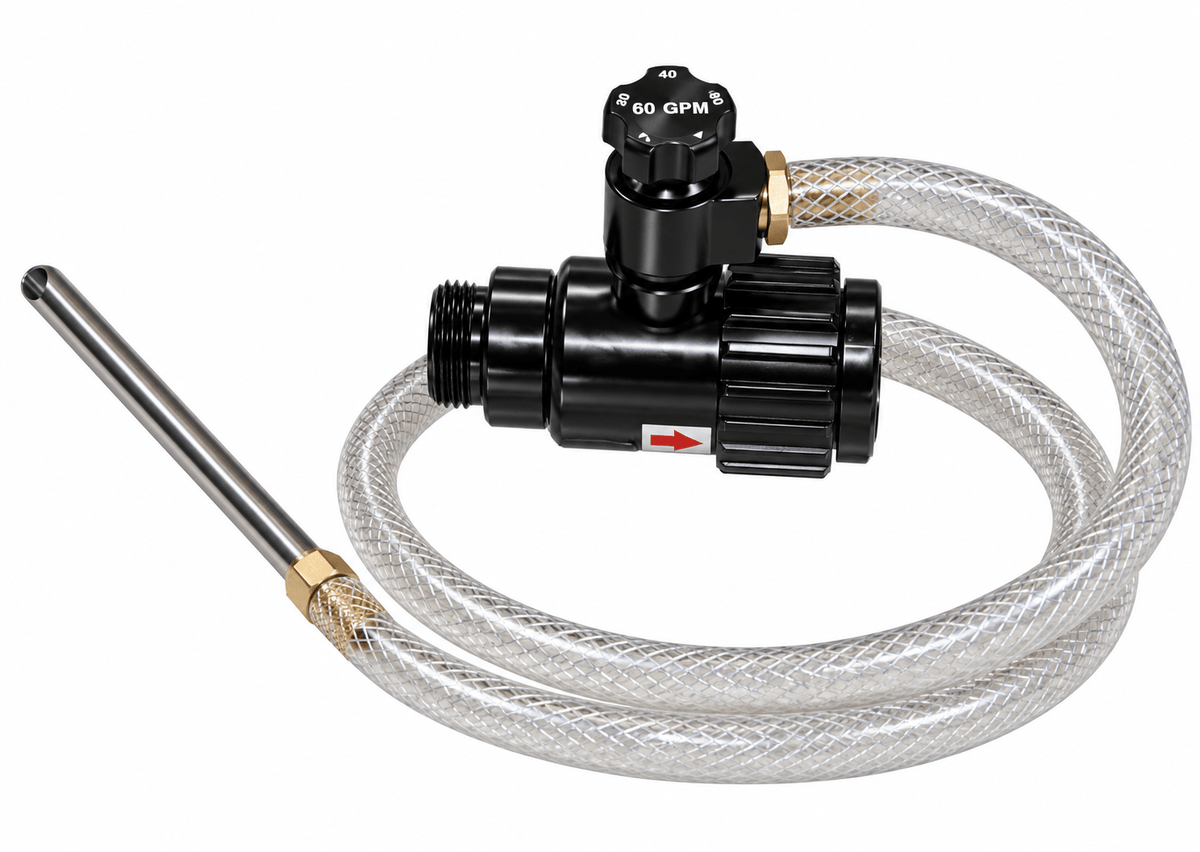

The C&S Supply 60 GPM Foam Eductor with Metering Dial and 1-1/2" Rigid Base is designed to provide accurate foam proportioning and dependable performance for structural, industrial, and wildland firefighting operations. Utilizing the Venturi principle, this VIPER bypass eductor delivers a rated flow of 60 GPM while allowing operators to quickly select foam concentrate percentages using the integrated metering dial. The dial provides convenient OFF, 0.5%, 1%, 3%, and 6% settings, making the eductor compatible with both Class A and Class B foam concentrates.
Constructed from hard-coat anodized E-Lite aluminum for durability and corrosion resistance, the BYPP3012-DIAL includes a 48" clear pickup hose and stainless steel pickup tube to simplify foam operations and reduce operator fatigue. The integrated bypass switch allows firefighters to instantly switch between foam and water operations without removing the eductor from the hose line. Designed for easy operation while wearing gloves, this eductor helps reduce pump pressure requirements and provides reliable foam delivery when conditions demand it most.
Features
• Rated for 60 GPM foam proportioning operations
• 1-1/2" NH (NST) rigid inlet connection
• Integrated metering dial with OFF, 0.5%, 1%, 3%, and 6% settings
• Compatible with Class A and Class B foam concentrates
• Integrated bypass switch for quick transition between foam and water flow
• Includes 48" clear pickup hose and stainless steel pickup tube
• Hard-coat anodized E-Lite aluminum construction
• Lightweight, corrosion-resistant design
• Designed for easy operation with gloved hands
• Uses approximately 15% less pump pressure than many competing eductors
• Individually tested for dependable performance
• Ideal for structural, industrial, and wildland firefighting applications
Specifications
• Manufacturer: C&S Supply
• Model: BYPP3012-DIAL
• Product Type: Bypass Foam Eductor
• Rated Flow: 60 GPM
• Inlet Connection: 1-1/2" NH (NST)
• Foam Settings: OFF, 0.5%, 1%, 3%, 6%
• Pickup Hose Length: 48"
• Pickup Tube Material: Stainless Steel
• Construction Material: Hard-Coat Anodized E-Lite Aluminum
• Operating Principle: Venturi Foam Proportioning
• Recommended Inlet Pressure: 200 PSI
• Pressure Loss: 33% (Foam Mode), 14% (Bypass Mode)
• Length: 6.00"
• Height: 5.75" (with dial)
• Weight: 3.20 lbs
• Dimensions: 9" W x 12" H x 6" D
• Application: Class A and Class B Foam Operations, Structural Firefighting, Industrial Fire Protection, and Wildland Firefighting
