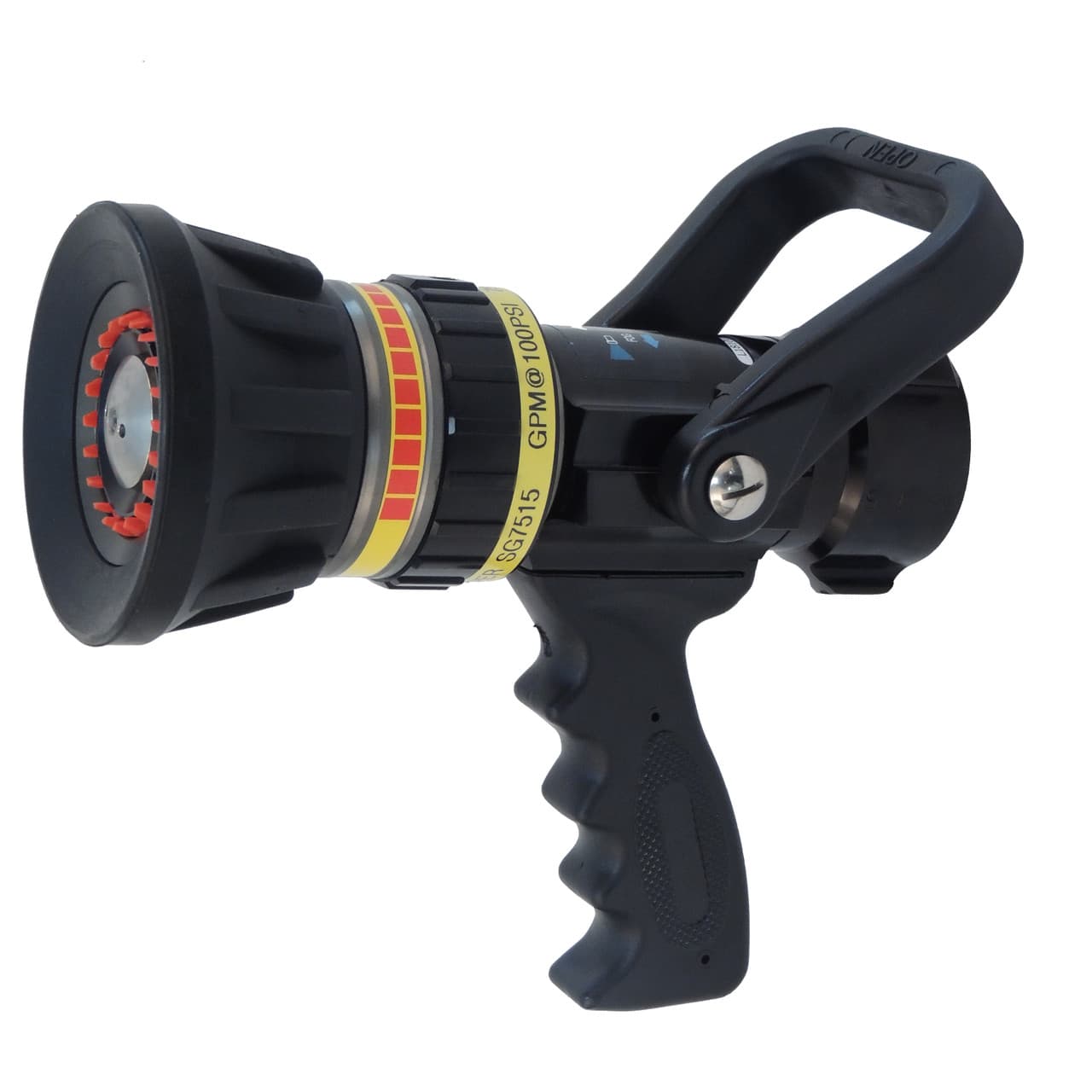

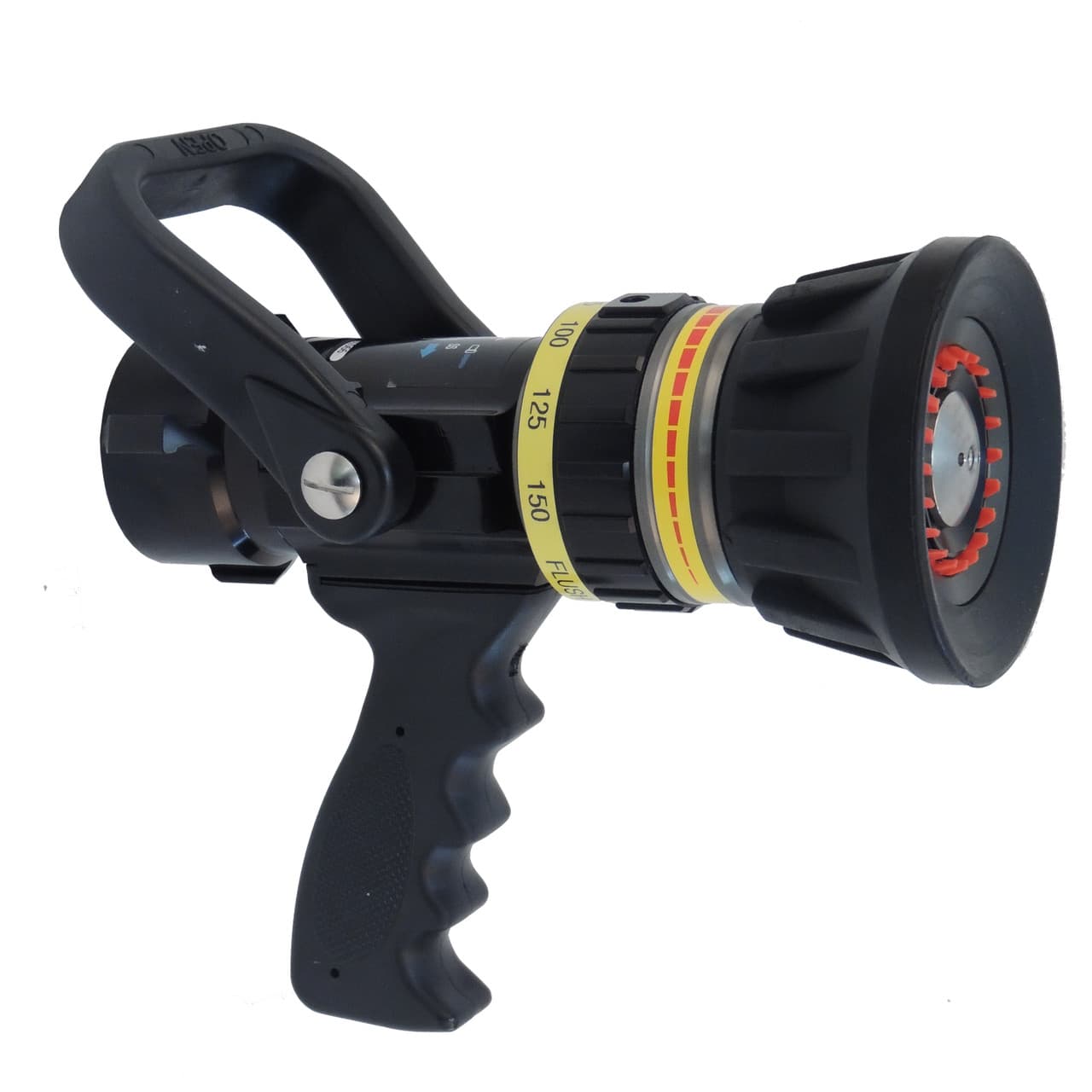

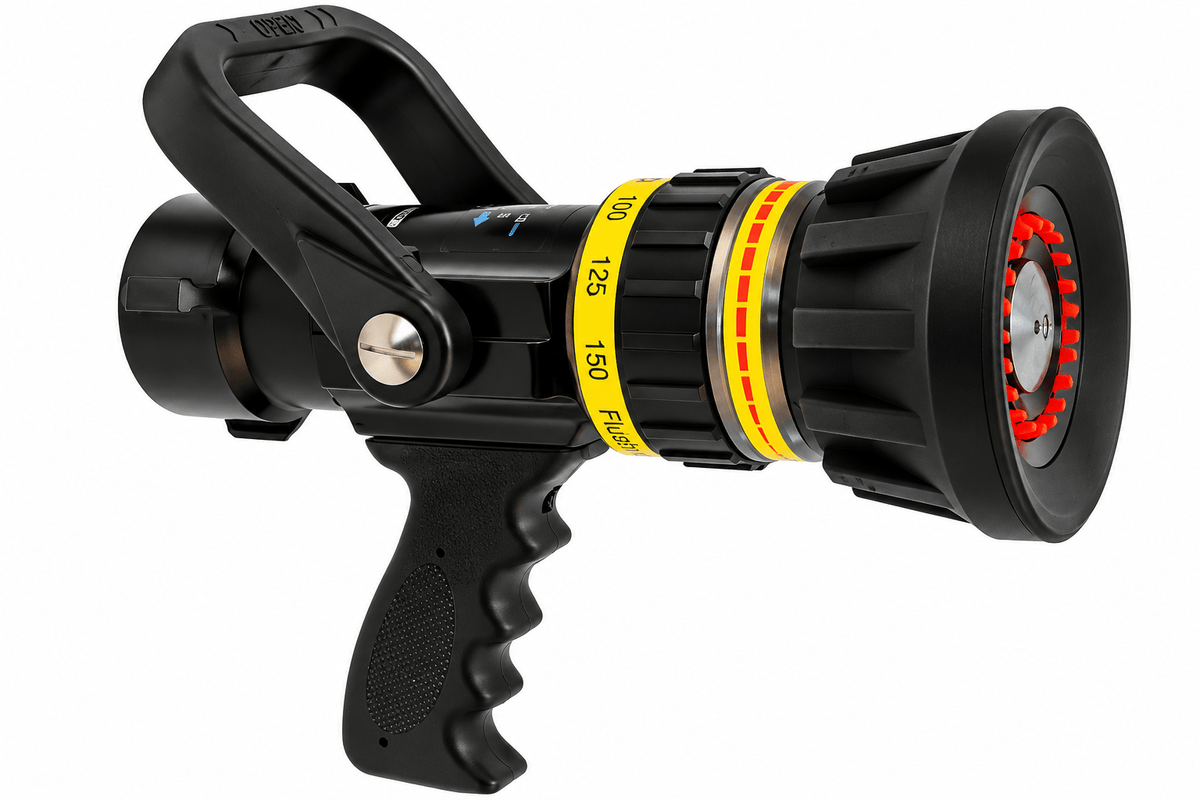

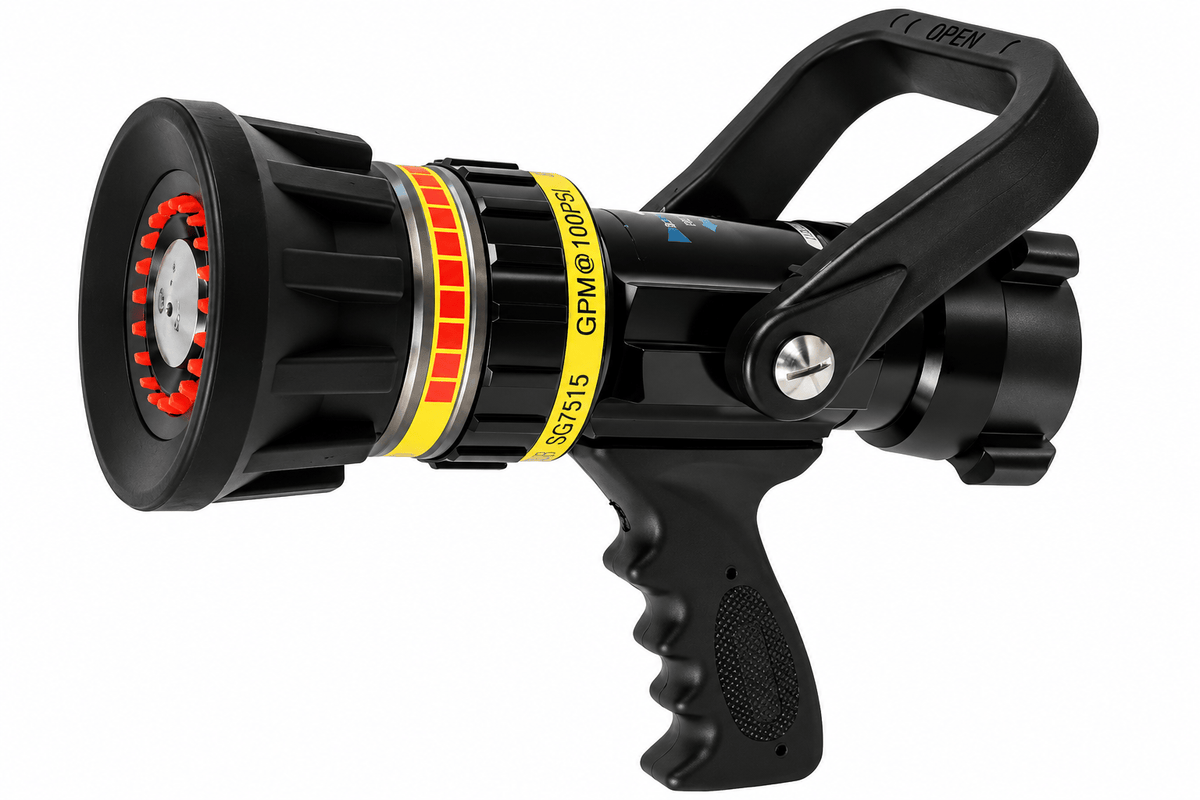

The C&S Supply 75–150 GPM 1-1/2" Select Gallonage Nozzle is designed to provide exceptional versatility, dependable stream performance, and operator-controlled flow selection for structural, industrial, municipal, and wildland firefighting applications. Featuring four selectable flow settings of 75, 100, 125, and 150 GPM, firefighters can quickly adjust flow rates without changing stream pattern, allowing the nozzle to adapt to changing fire conditions while maintaining effective water application. We offer this nozzle in four configurations: 1-1/2" NST (NH) with a composite bail handle, 1-1/2" NST (NH) with a metal bail handle, 1-1/2" NPSH with a composite bail handle, and 1-1/2" NPSH with a metal bail handle.
Constructed from lightweight E-LITE aluminum with durable brass internal components, the SG7515 combines rugged durability with low-maintenance operation. The BIMATIC flush system allows debris to be cleared without shutting down water flow, while spinning teeth provide a wide, protective fog pattern and smooth transitions from fog to straight stream. The removable pistol grip enhances handling and control, and the nozzle is individually tested to ensure reliable performance in demanding firefighting environments. Available in both 75 PSI and 100 PSI operating pressure configurations, the SG7515 provides flexibility to meet a variety of departmental and operational requirements.
Features
• Four selectable flow settings: 75, 100, 125, and 150 GPM
• Flow can be adjusted without changing stream pattern
• Available with 1-1/2" NST (NH) or 1-1/2" NPSH threads
• Available with composite or metal bail handle configurations
• BIMATIC flush system allows debris removal without shutting down
• Constant flow performance throughout fog and straight stream patterns
• Lightweight E-LITE aluminum construction
• Durable brass internal components
• Spinning teeth provide a wide, complete fog pattern
• Ergonomically designed for easy operation and handling
• Removable pistol grip for operational flexibility
• Compact, lightweight, and low-maintenance design
• Individually tested for safety and reliability
• Available in 75 PSI and 100 PSI operating pressure configurations
Specifications
• Manufacturer: C&S Supply
• Model: SG7515
• Product Type: Select Gallonage Fire Nozzle
• Flow Settings: 75, 100, 125, and 150 GPM
• Operating Pressure Options: 75 PSI or 100 PSI
• Inlet Connection Options: 1-1/2" NST (NH) or 1-1/2" NPSH
• Bail Handle Options: Composite or Metal
• Construction Material: E-LITE Aluminum with Brass Internal Components
• Stream Patterns: Fog to Straight Stream
• Flush Capability: BIMATIC Flush System
• Pistol Grip: Removable
• Weight: 4.60 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Structural Firefighting, Municipal Fire Service, Industrial Fire Protection, Wildland Firefighting, Forestry Operations, and General Fire Suppression Applications
