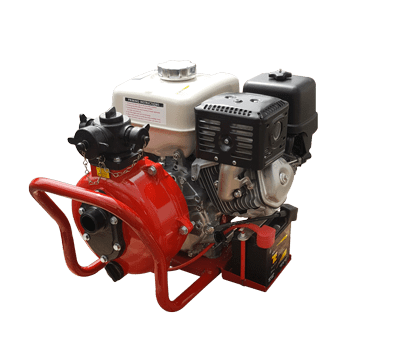

The Goliath 9 hp Portable High Volume Pump - Electric Start is a compact pump that delivers amazing pressure performance so as to meet the needs of several applications.
ENGINE SPECIFICATIONS
GX270 Honda air cooled engine
Single cylinder, 4-stroke gasoline engine
12V electric start with recoil start as backup
1.4 gallon (5.3 l) integrated fuel tank
Charge coil 12V 3A
PERFORMANCE
70 GPM @ 10 PSI
60 GPM @ 50 PSI
55 GPM @ 100 PSI
40 GPM @ 125 PSI
PUMP UNIT SPECIFICATIONS
C.E.T. dual stage centrifugal pump
Pump body made from aluminum
Aluminum impeller
Mechanical shaft seal
Self priming system
Two 1” (25 mm) delivery outlets and one 1 1⁄2” (38 mm)NPSH delivery outlet
