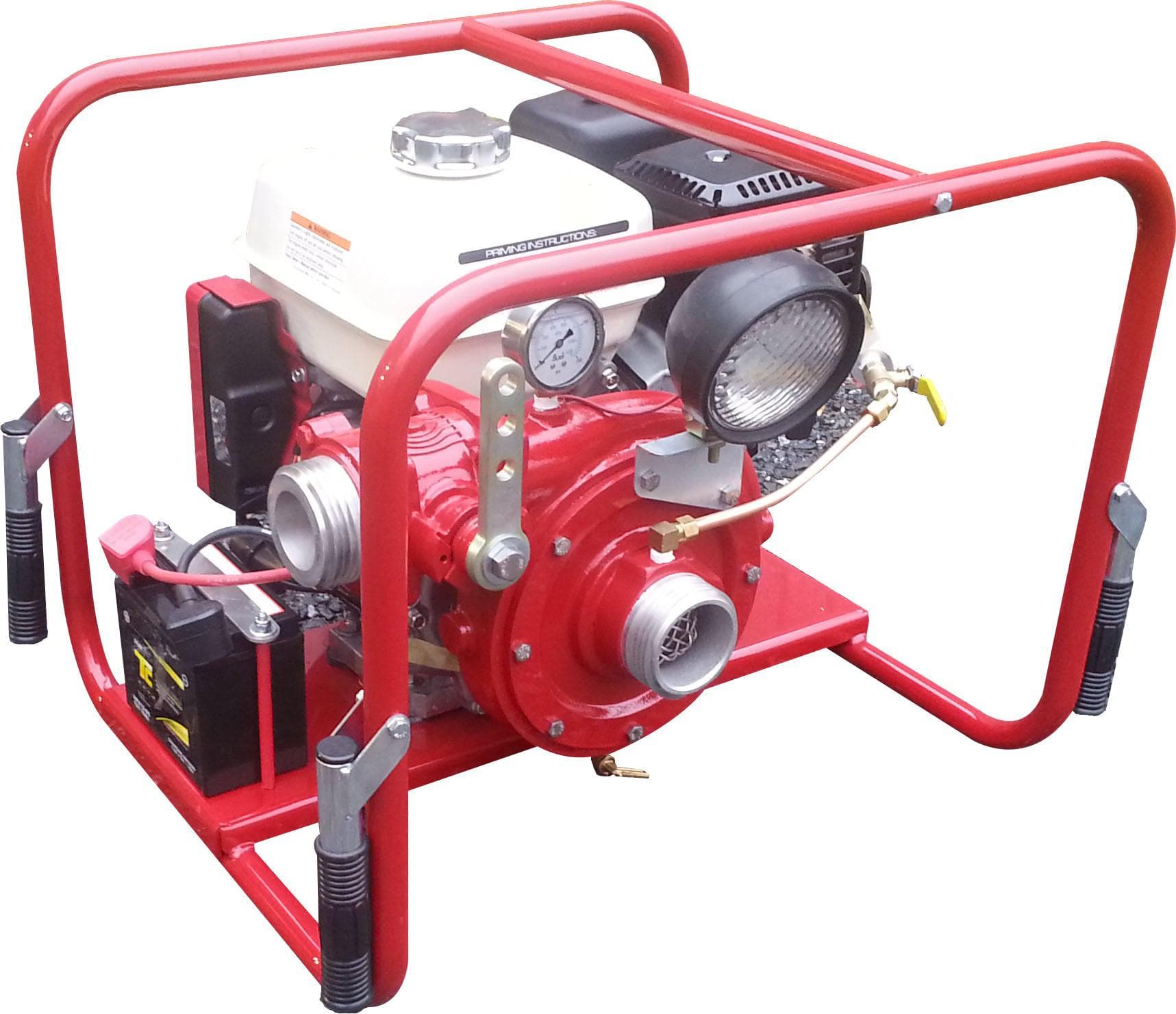

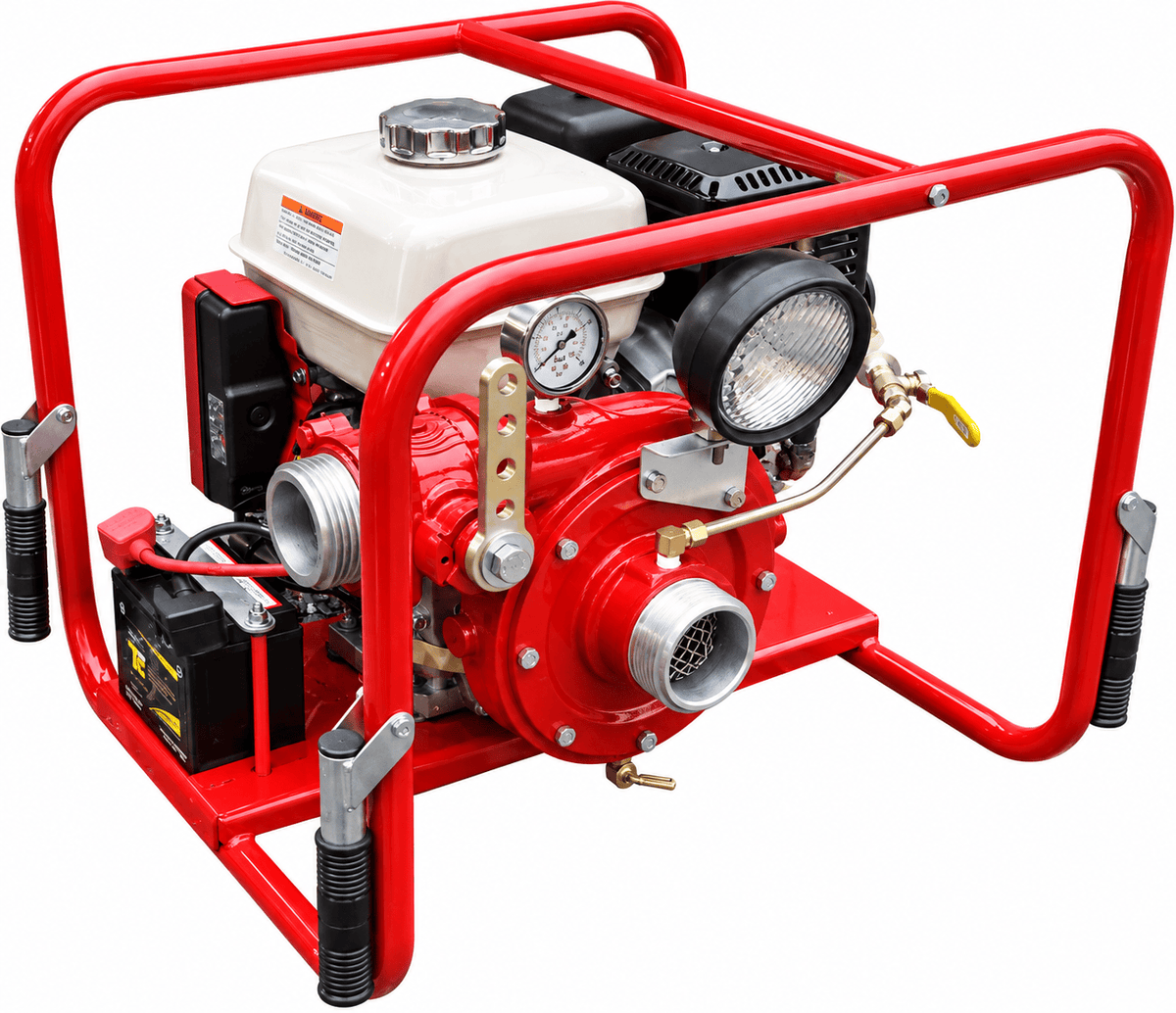

The CET 9 HP Portable High Volume Wraparound Pump - Electric Start is a lightweight, high-capacity firefighting pump designed to deliver exceptional water flow while providing the convenience of electric starting. Powered by a dependable Honda GX270 engine, this portable pump offers some of the highest flow performance available in its class, making it ideal for water transfer, tanker filling, relay pumping, rural firefighting, and mobile firefighting operations. The engine and pump are protected by CET's wraparound steel frame design with shock absorbers, providing enhanced durability while maintaining excellent portability in demanding environments.
Built around a direct-drive C.E.T. single-stage centrifugal pump, this unit features a corrosion-resistant aluminum alloy pump body, bronze impeller, and mechanical shaft seal for dependable long-term performance. The electric start system is backed up by a recoil starter for added reliability, while the exhaust priming system provides dependable priming capability with lifts up to 20 feet. Complete with a 36-watt alternator, pressure gauge, low oil alert system, and 12-volt battery, this pump is engineered to provide reliable service wherever high-volume water movement is required. Available with either NST/NH or NPSH threaded connections, it can be configured to match existing hose and equipment requirements.
Features
• Honda GX270 air-cooled gasoline engine
• Single-cylinder, 4-stroke engine design
• 12V electric start with recoil start backup
• Heavy-duty wraparound steel protective frame with shock absorbers
• Direct-drive C.E.T. single-stage centrifugal pump
• Corrosion-resistant aluminum alloy pump body
• Durable bronze impeller construction
• Mechanical shaft seal for long service life
• Exhaust priming system with up to 20 ft. lift capability
• One 2-1/2" discharge outlet with 1/4-turn ball valve
• One 2-1/2" suction inlet
• Includes 36-watt alternator and 12-volt battery
• Pressure gauge and low oil alert system included
• Ideal for firefighting, water transfer, and tanker filling applications
• Available with NST/NH or NPSH threaded connections
• Available in skid-mounted configurations
• Backed by a 3-year limited warranty
Specifications
• Manufacturer: CET Fire Pumps
• Product Type: Portable High Volume Wraparound Pump
• Engine: Honda GX270
• Engine Type: Air-Cooled, Single-Cylinder, 4-Stroke Gasoline
• Starting System: 12V Electric Start with Recoil Backup
• Fuel Tank Capacity: 1.4 Gallons (5.3 L)
• Pump Type: Direct-Drive C.E.T. Single-Stage Centrifugal Pump
• Pump Body Material: Aluminum Alloy
• Impeller Material: Bronze
• Priming System: Exhaust Primer
• Maximum Lift: 20 ft. (6 m)
• Suction Inlet: 2-1/2"
• Discharge Outlet: One 2-1/2" with 1/4-Turn Ball Valve
• Thread Options:
-
Variant 1: NST/NH Threads
-
Variant 2: NPSH Threads
• Alternator Output: 36 Watts
• Battery: 12-Volt Included
• Dimensions: 21-1/2" L x 23-1/4" W x 20" H
• Weight: 115 lbs.
• Maximum Pressure: 120 PSI
• Warranty: 3-Year Limited Warranty
Performance
• 200 GPM @ 25 PSI
• 140 GPM @ 50 PSI
• 100 GPM @ 75 PSI
• 60 GPM @ 100 PSI
• Maximum Pressure: 120 PSI
