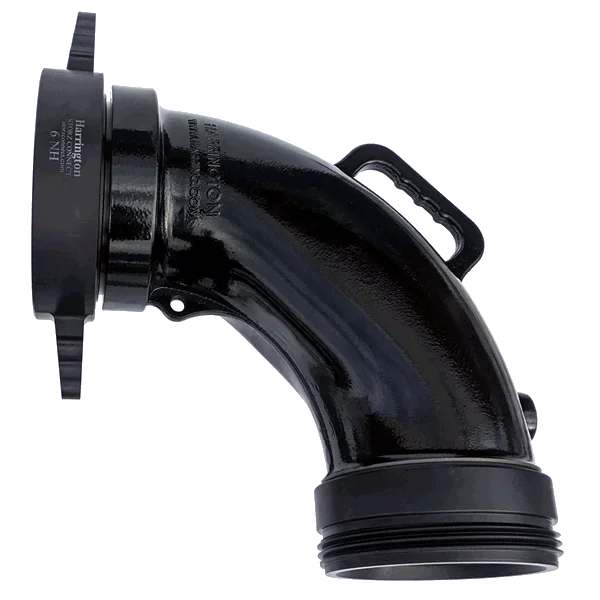

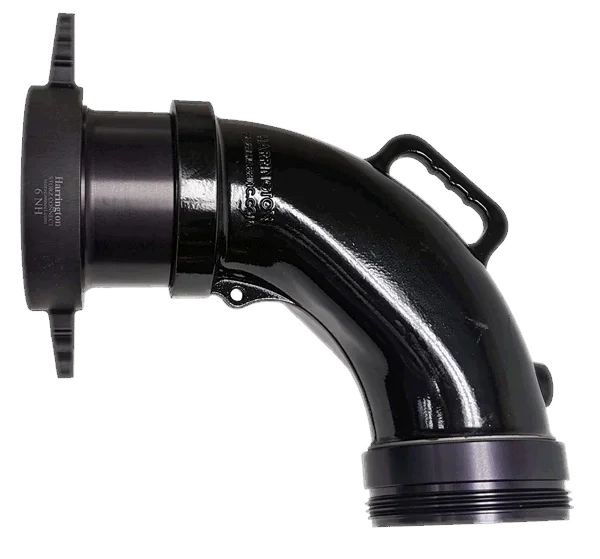

The 90° Pressure Suction Discharge Elbow is designed to provide a compact and efficient transition between pumps, folding tanks, and secondary pumping operations. Its 90-degree configuration helps reduce hose bends and improve apparatus layout while maintaining full-flow performance for both suction and discharge applications.
Constructed from cast aluminum with a durable black powder-coated finish, this elbow features Military Type III anodized aluminum connections for superior corrosion resistance and long service life. Rated for a 250 PSI working pressure, it meets and exceeds applicable NFPA standards, making it a dependable choice for fire apparatus water supply operations.
Features
• Designed for both suction and discharge applications
• Provides a compact transition from pump to folding tank or secondary pumper
• 90-degree elbow configuration reduces hose strain and improves layout efficiency
• NH female swivel rocker lug inlet for secure connections
• NH male outlet connection
• Cast aluminum elbow construction
• Military Type III anodized aluminum connections
• Durable black powder-coated finish
• Rated for 250 PSI working pressure
• Meets and exceeds applicable NFPA standards
Specifications
• Manufacturer: Harrington
• Product Type: Pressure/Suction Elbow
• Elbow Angle: 90°
• Working Pressure: 250 PSI
• Material: Cast Aluminum
• Connection Material: Military Type III Anodized Aluminum
• Finish: Black Powder Coat
• Inlet Connection: NH Female Swivel Rocker Lug
• Outlet Connection: NH Male
• Application: Suction and discharge water transfer operations
Available Models
• HPSE90-60NHM-60NHFSRL — 90° Pressure/Suction Elbow, 6" NH Male x 6" NH Female Swivel Rocker Lug
