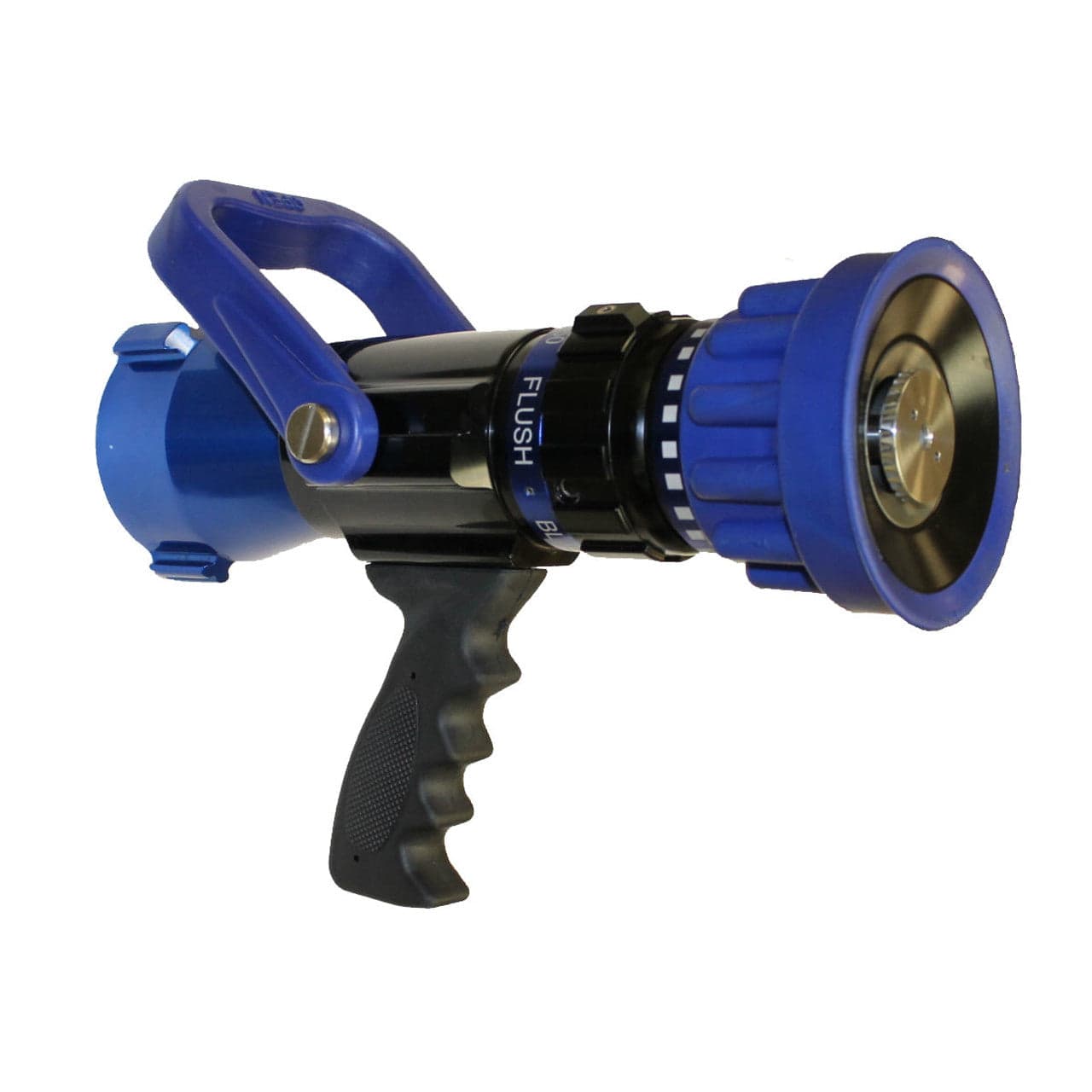

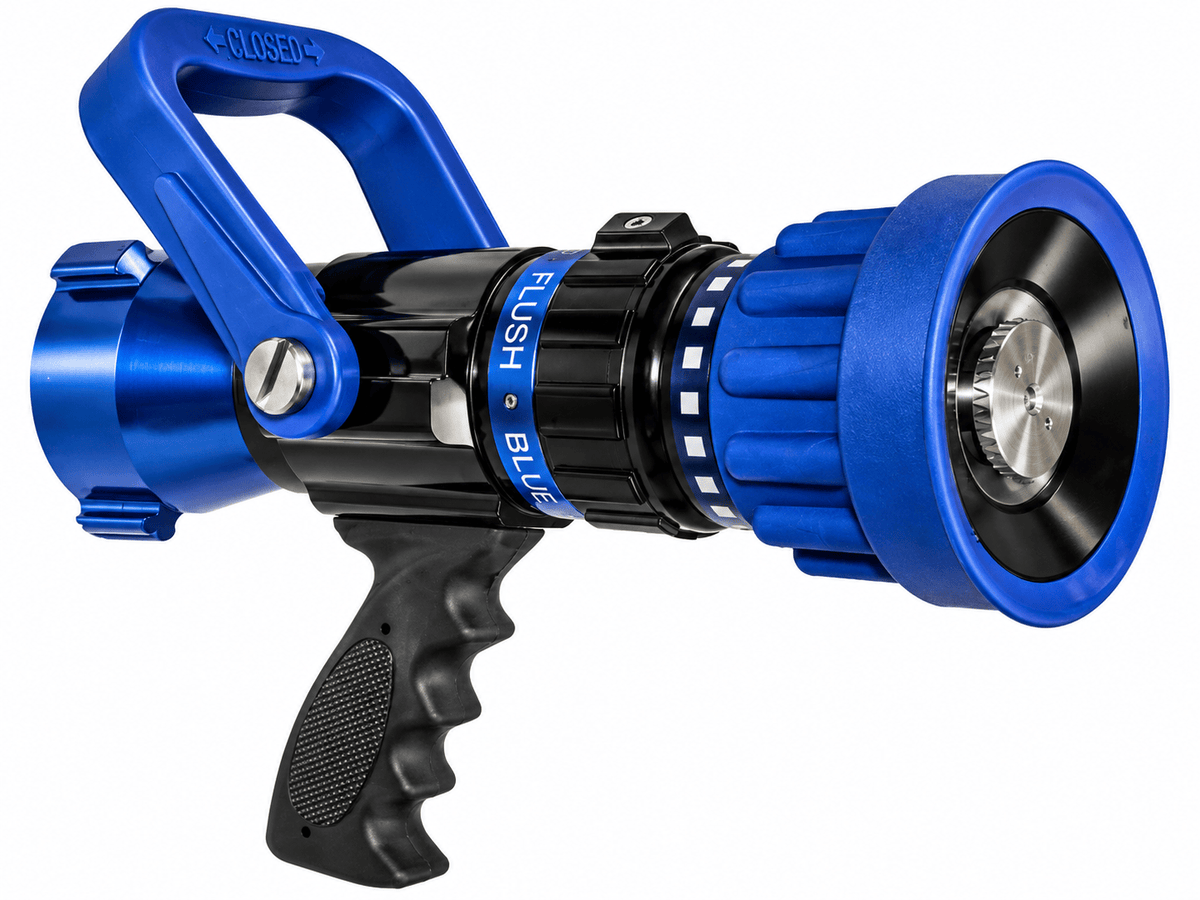

The C&S Supply VIPER 2.0 Blue Devil 95–200 GPM 2-1/2" Select Gallonage Nozzle is engineered to deliver exceptional flow flexibility, superior stream performance, and dependable operation for structural, industrial, and municipal firefighting applications. Featuring four selectable flow settings of 95, 125, 150, and 200 GPM, the Blue Devil allows firefighters to quickly adjust flow rates without changing stream pattern, providing maximum versatility on the fireground. We offer this nozzle exclusively with 2-1/2" NST (NH) threads and a choice of either a composite bail handle or a metal bail handle.
Built around the innovative Blue Devil platform, this nozzle utilizes durable Rylostatic teeth that are integrated directly into the nozzle head, eliminating exposed spinning or fixed teeth while producing superior fog patterns and reducing maintenance requirements. The advanced design features a metal ball valve assembly rated for operating pressures up to 570 PSI (40 bar), deeper selector ring ribs for improved grip with gloved hands, and a flush capability that allows debris removal without shutting down water flow. Constructed from lightweight E-LITE aluminum with brass internal components, the Blue Devil delivers constant flow performance through fog and straight stream patterns while minimizing firefighter fatigue.
Features
• Four selectable flow settings: 95, 125, 150, and 200 GPM
• Flow can be adjusted without changing stream pattern

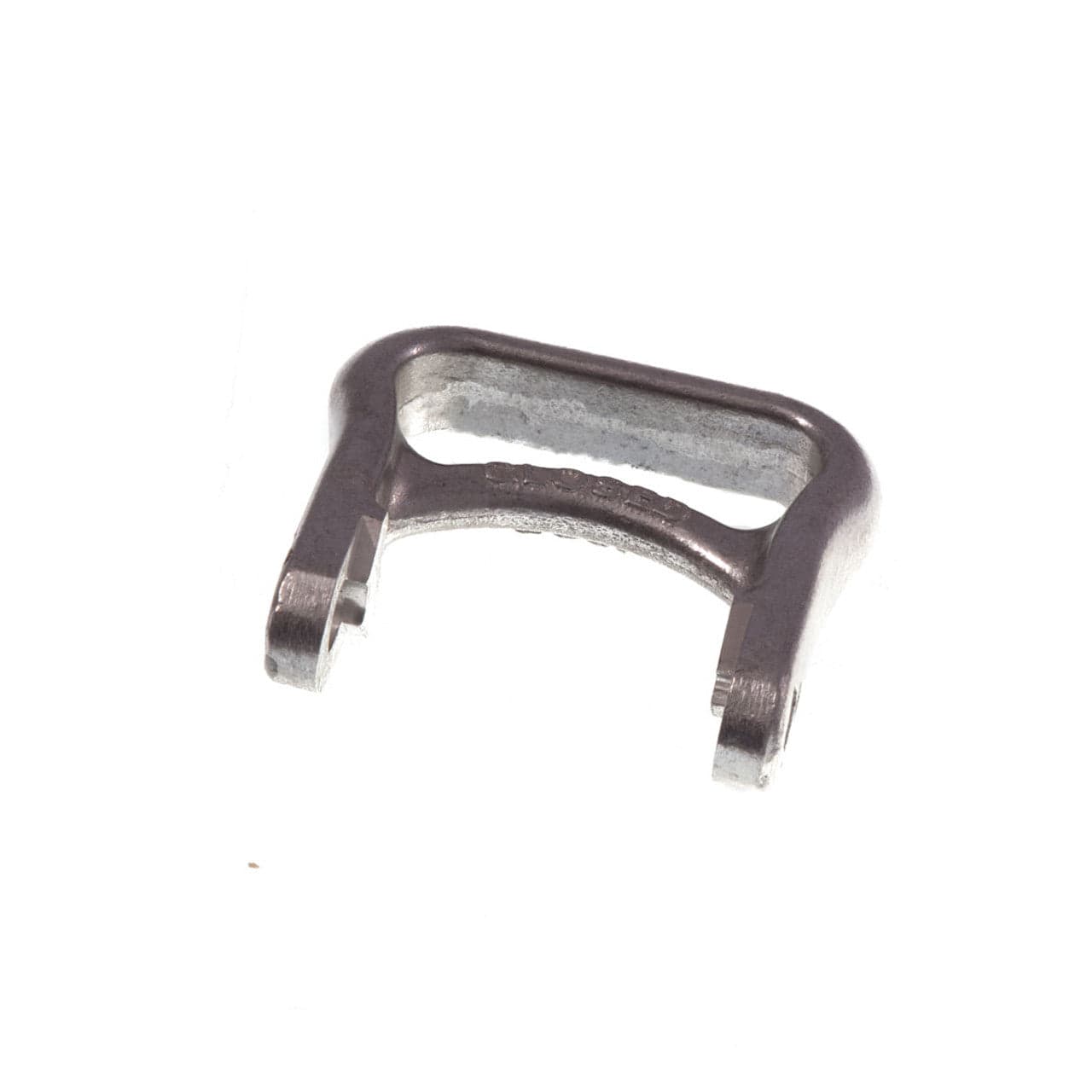

• Available with composite or metal bail handle configurations

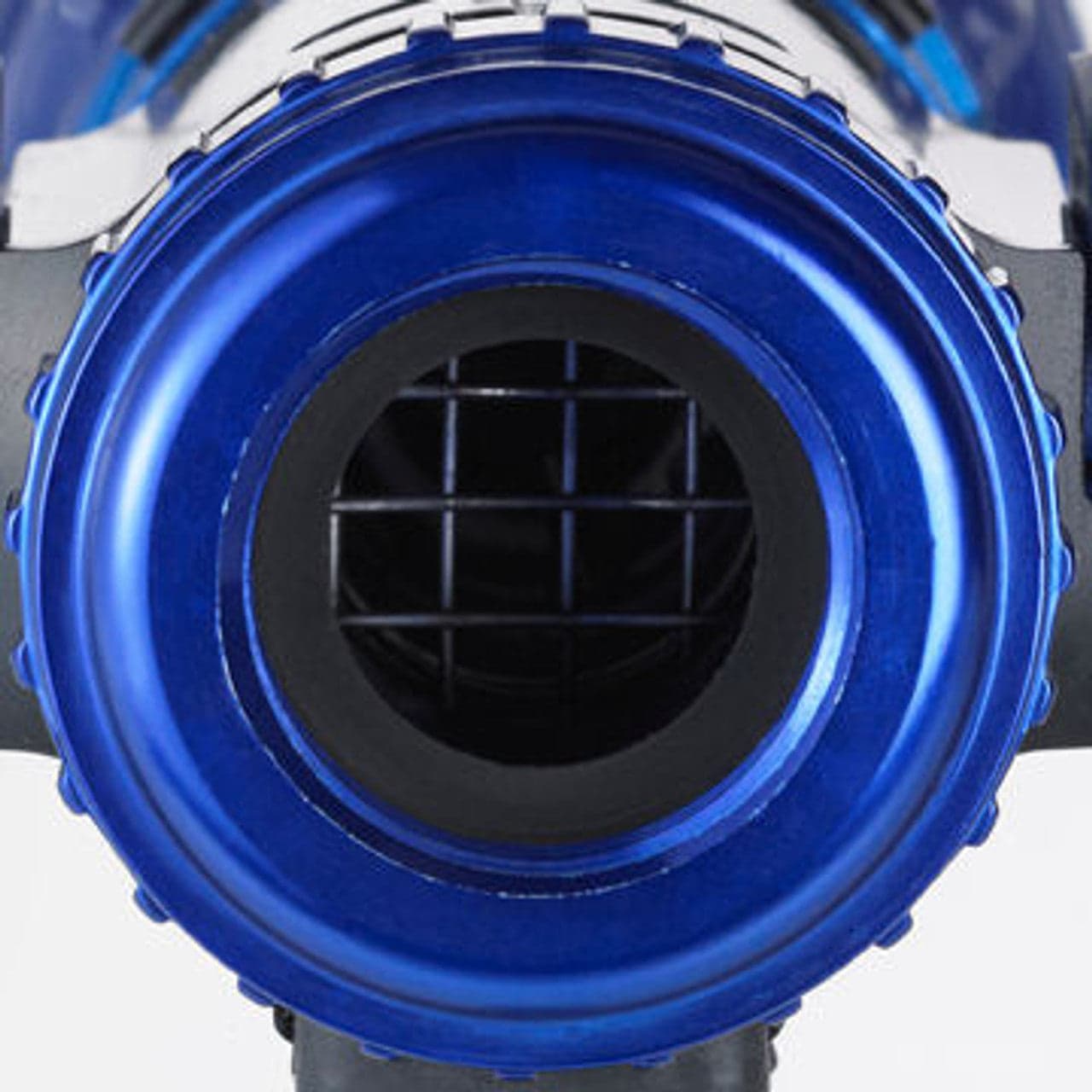

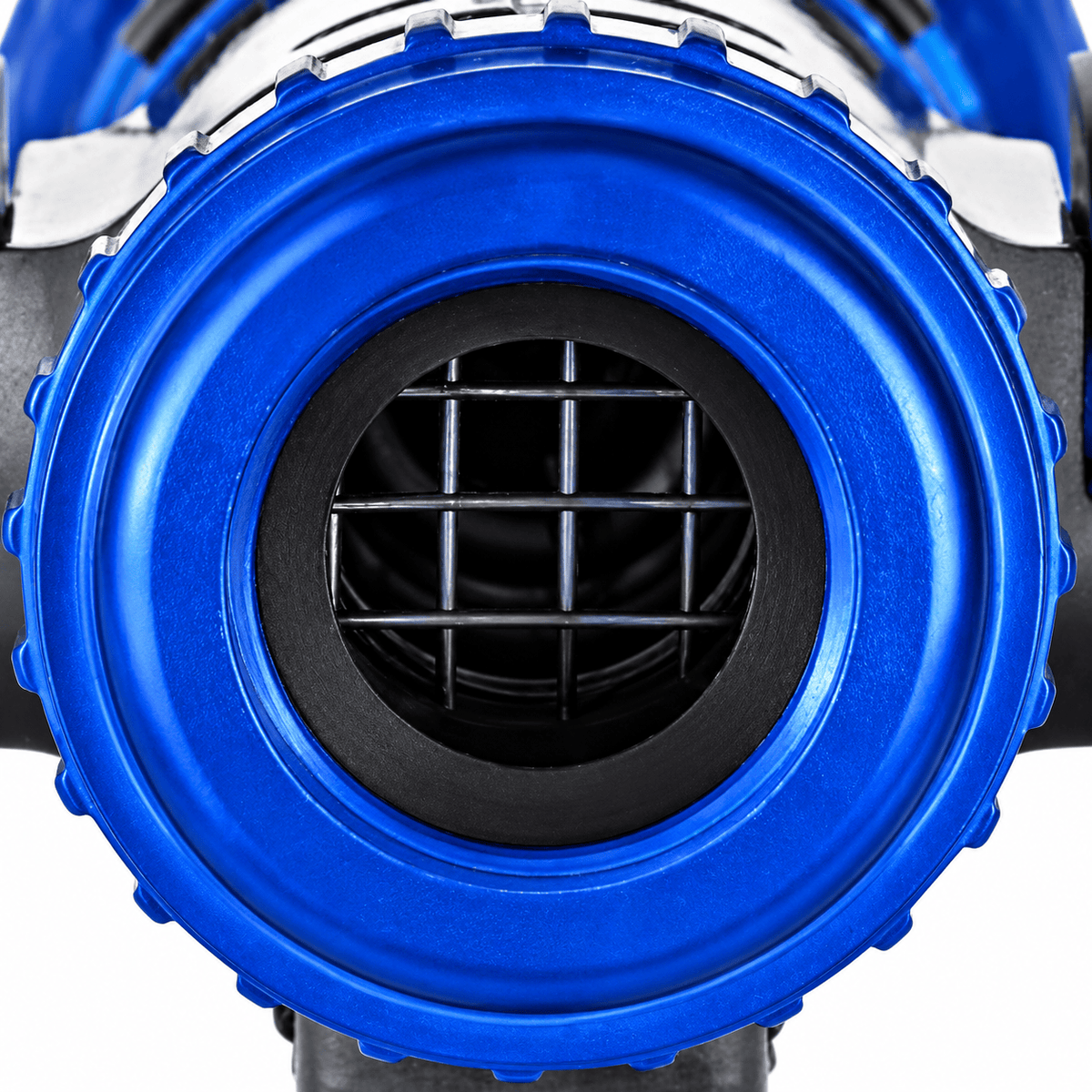

• 2-1/2" NST (NH) swivel inlet connection
• Flush capability allows debris removal without shutting down
• Constant flow performance through fog and straight stream patterns

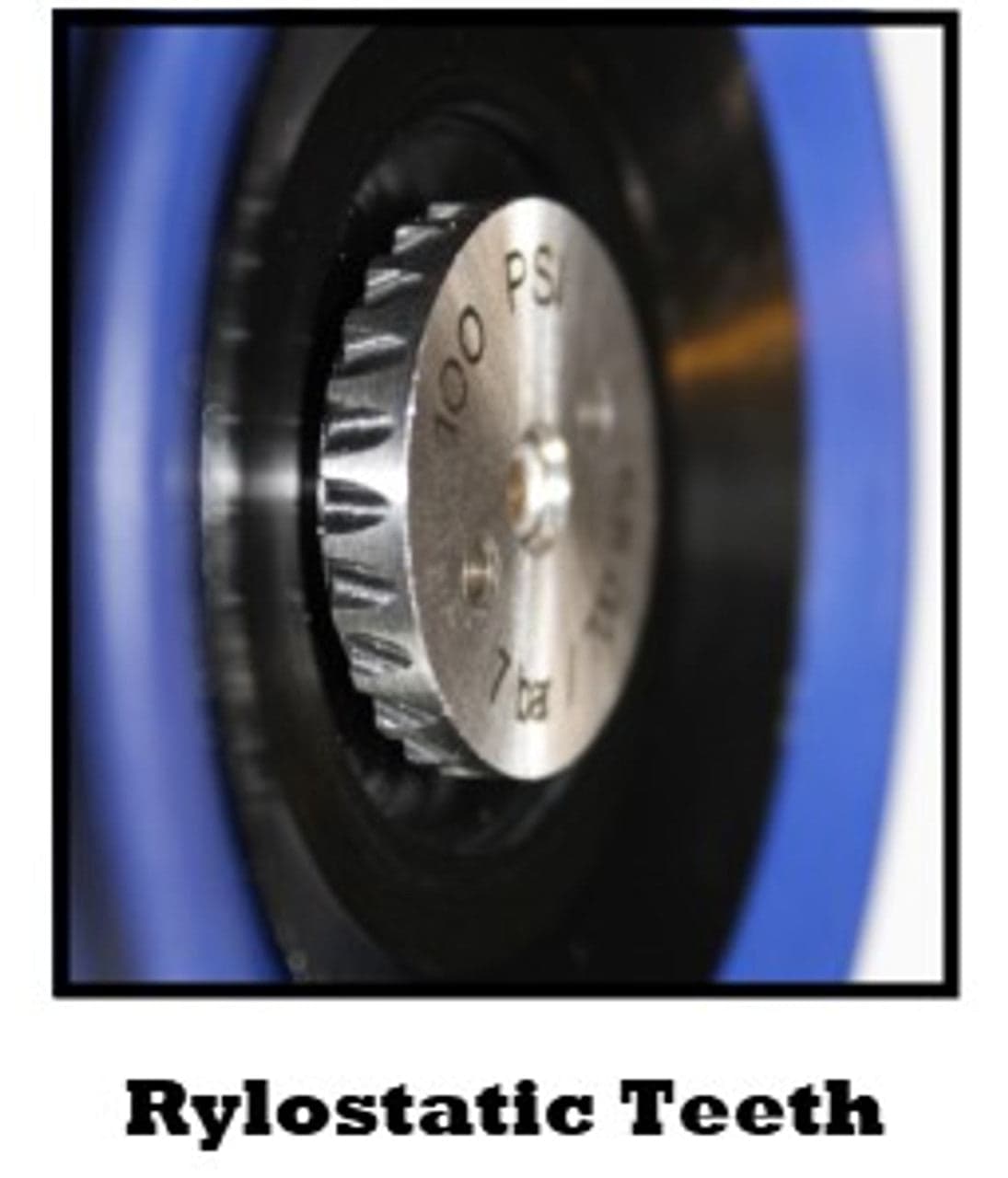

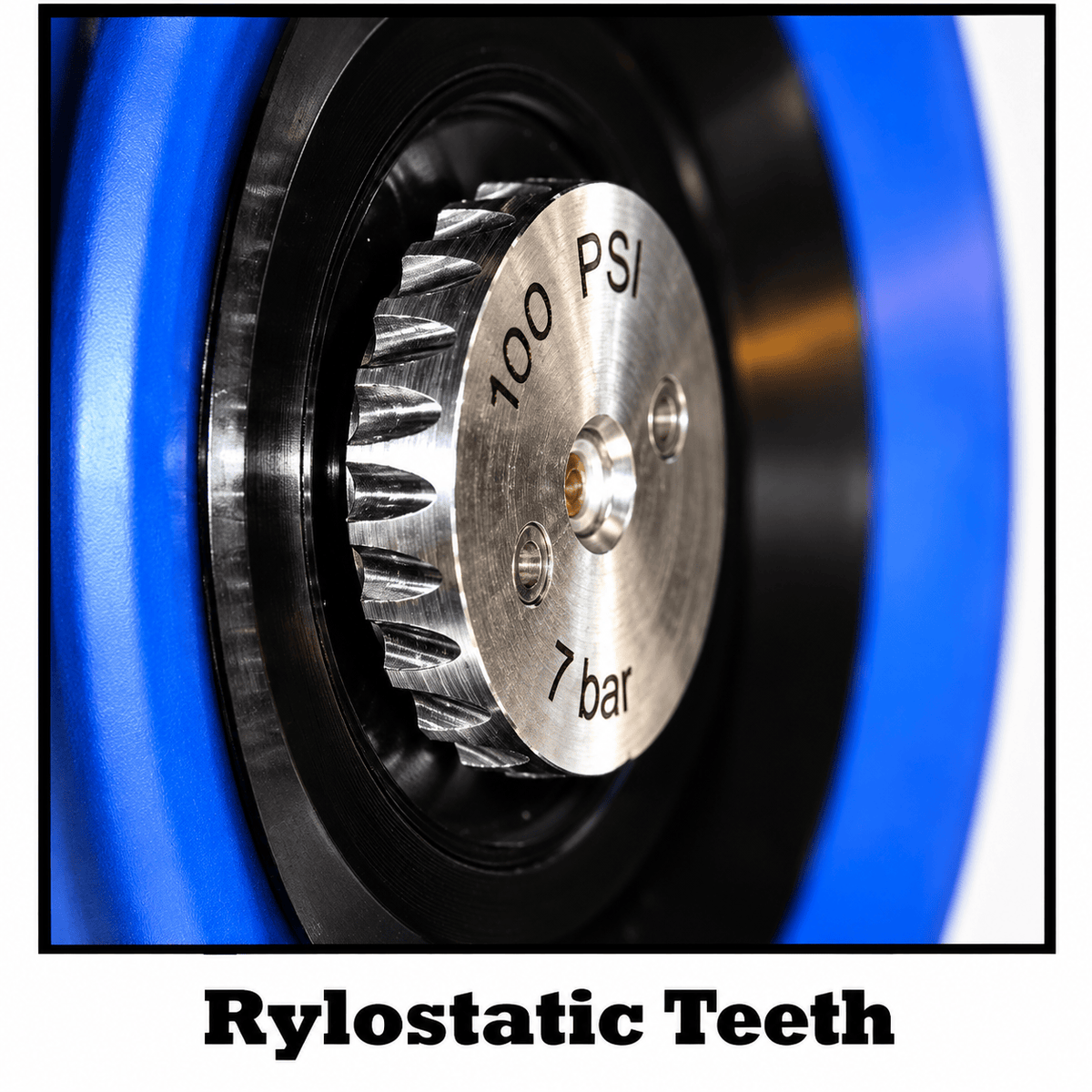

• Advanced Rylostatic teeth provide improved fog patterns and reduced maintenance
• Metal ball valve design rated for pressures up to 570 PSI (40 bar)
• Deeper selector ring ribs for improved grip with gloved hands
• Lightweight E-LITE aluminum construction
• Durable brass internal components
• Ergonomically designed for easy operation and handling
• Removable pistol grip for operational flexibility
• Individually tested for safety and reliability
• NFPA 1964 compliant
Specifications
• Manufacturer: C&S Supply
• Model: BD9520 2-1/2
• Product Type: Select Gallonage Fire Nozzle
• Flow Settings: 95, 125, 150, and 200 GPM
• Standard Operating Pressure: 100 PSI
• Low Pressure Options: 50 PSI and 75 PSI available on select models
• Maximum Operating Pressure: 570 PSI (40 bar)
• Inlet Connection: 2-1/2" NST (NH)
• Bail Handle Options: Composite or Metal
• Construction Material: E-LITE Aluminum with Brass Internal Components
• Stream Patterns: Fog to Straight Stream
• Teeth Type: Integrated Rylostatic Teeth
• Flush Capability: Yes
• Pistol Grip: Removable
• Weight: 7.80 lbs
• Dimensions: 10" W x 14" H x 6" D
• Length: 12.75"
• Compliance: NFPA 1964
• Application: Structural Firefighting, Municipal Fire Service, Industrial Fire Protection, Foam Operations, and General Fire Suppression Applications
