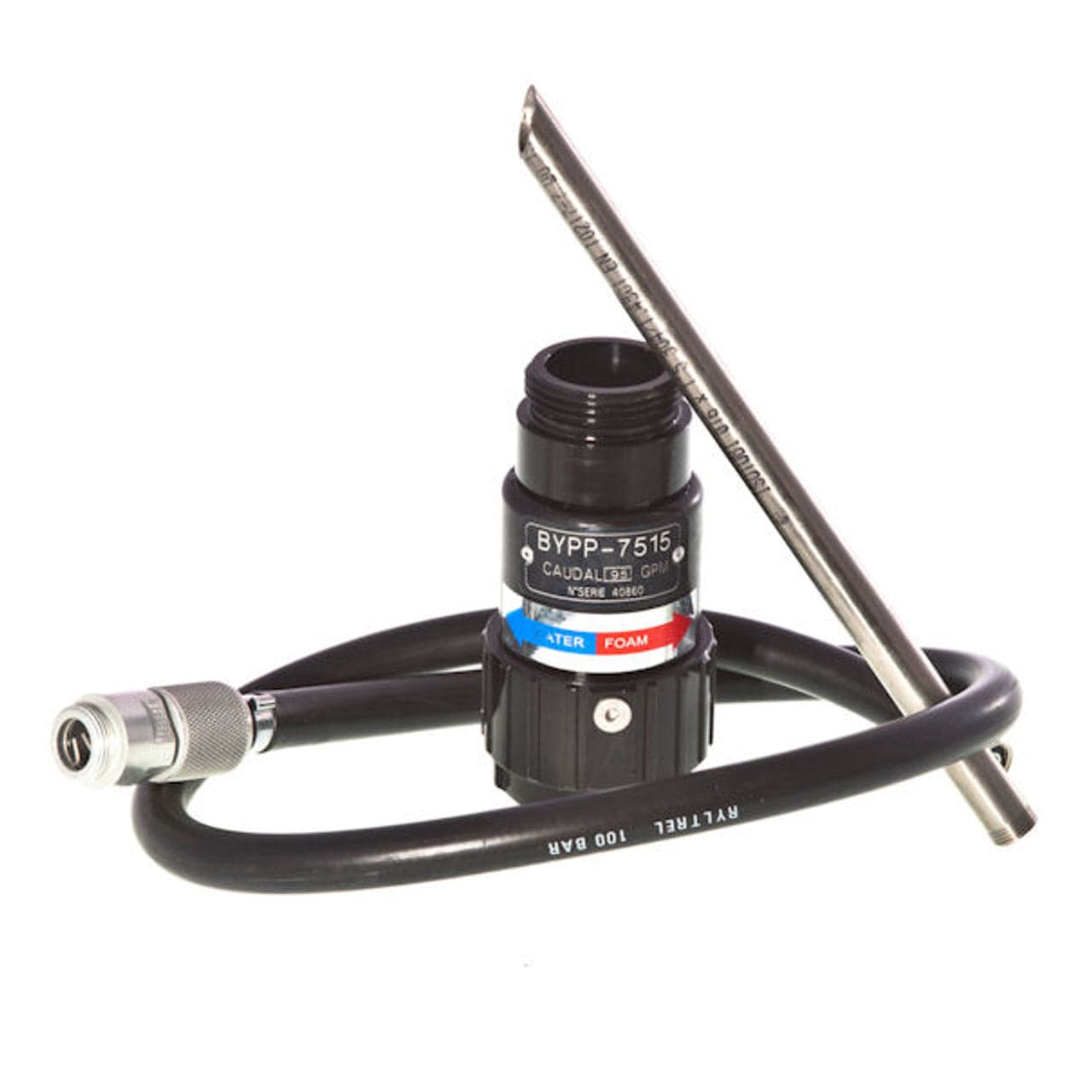

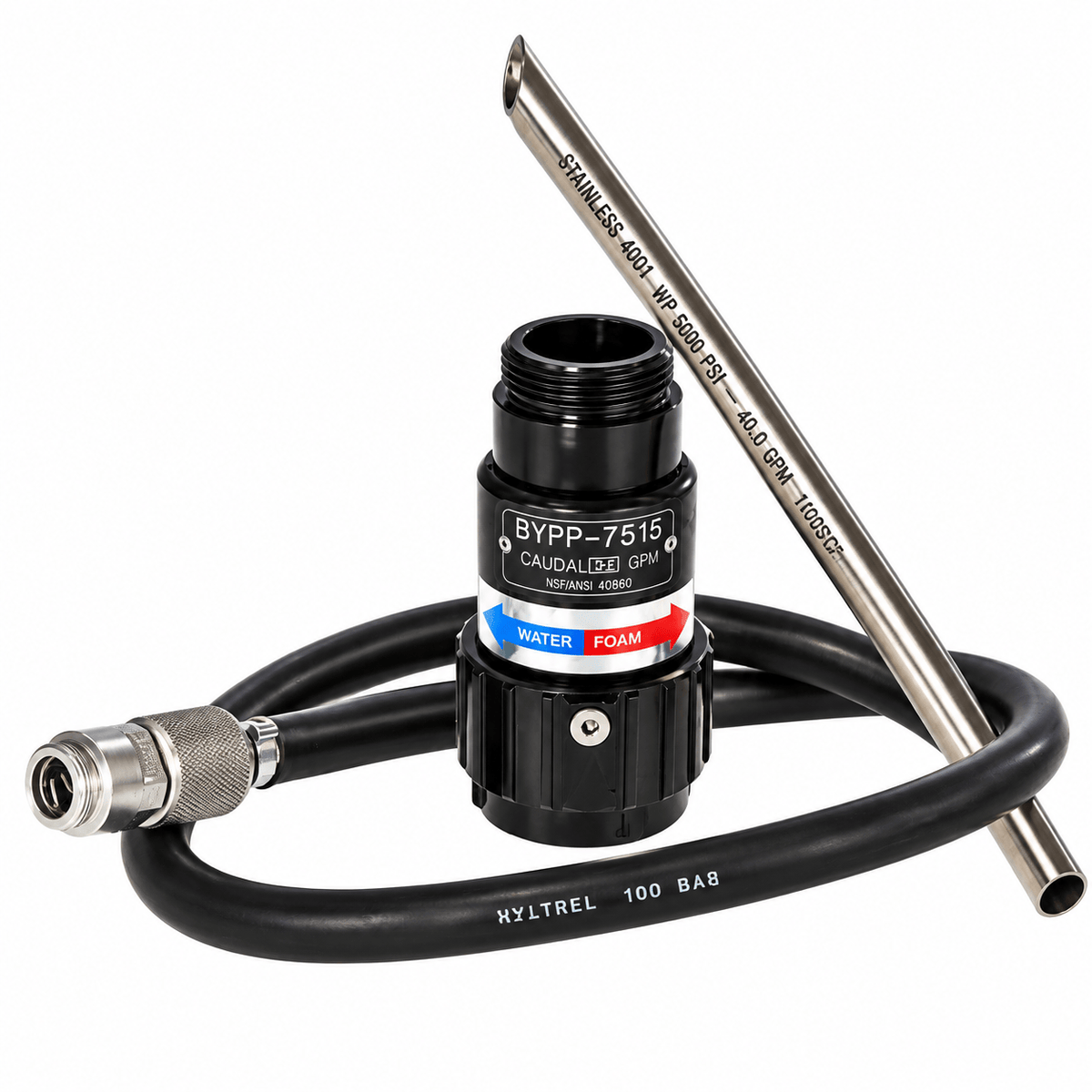

The C&S Supply 95 GPM Foam Eductor with 1-1/2" Rigid Base is a dependable foam proportioning solution designed for structural, industrial, and wildland firefighting operations. Utilizing the Venturi principle, this VIPER bypass eductor delivers a rated flow of 95 GPM while providing accurate foam concentrate induction for effective fire suppression. Its compact design and durable construction make it an ideal addition to any firefighting foam system.
Constructed from hard-coat anodized E-Lite aluminum, the eductor offers excellent corrosion resistance and long-term durability in demanding environments. The unit includes a 39" clear pickup hose and comes standard with both 3% and 6% metering discs, with an optional 1% disc available upon request. An integrated bypass switch allows operators to quickly switch between foam and water operation without removing the eductor from the hose line, helping improve operational flexibility on the fireground. The BYPP7515 is individually tested for reliable performance and is designed to operate with approximately 15% less pump pressure than many competing eductors.
Features
• Rated for 95 GPM foam proportioning operations
• 1-1/2" NH (NST) rigid inlet connection
• Utilizes the Venturi principle for reliable foam induction
• Includes standard 3% and 6% metering discs
• Optional 1% metering disc available upon request
• 39" clear pickup hose included
• Integrated bypass switch for quick transition between foam and water operation
• Hard-coat anodized E-Lite aluminum construction
• Lightweight, corrosion-resistant design
• Individually tested for dependable performance
• Designed to operate with approximately 15% less pump pressure than many competing eductors
• Ideal for structural, industrial, and wildland firefighting applications
Specifications
• Manufacturer: C&S Supply
• Model: BYPP7515
• Product Type: Bypass Foam Eductor
• Rated Flow: 95 GPM
• Inlet Connection: 1-1/2" NH (NST)
• Metering Discs Included: 3% and 6%
• Optional Metering Disc: 1%
• Pickup Hose Length: 39"
• Construction Material: Hard-Coat Anodized E-Lite Aluminum
• Operating Principle: Venturi Foam Proportioning
• Recommended Inlet Pressure: 200 PSI
• Average Pressure Loss: Approximately 30%
• Length: 6.00"
• Weight: 2.80 lbs
• Application: Class A and Class B Foam Operations, Structural Firefighting, Industrial Fire Protection, and Wildland Firefighting
