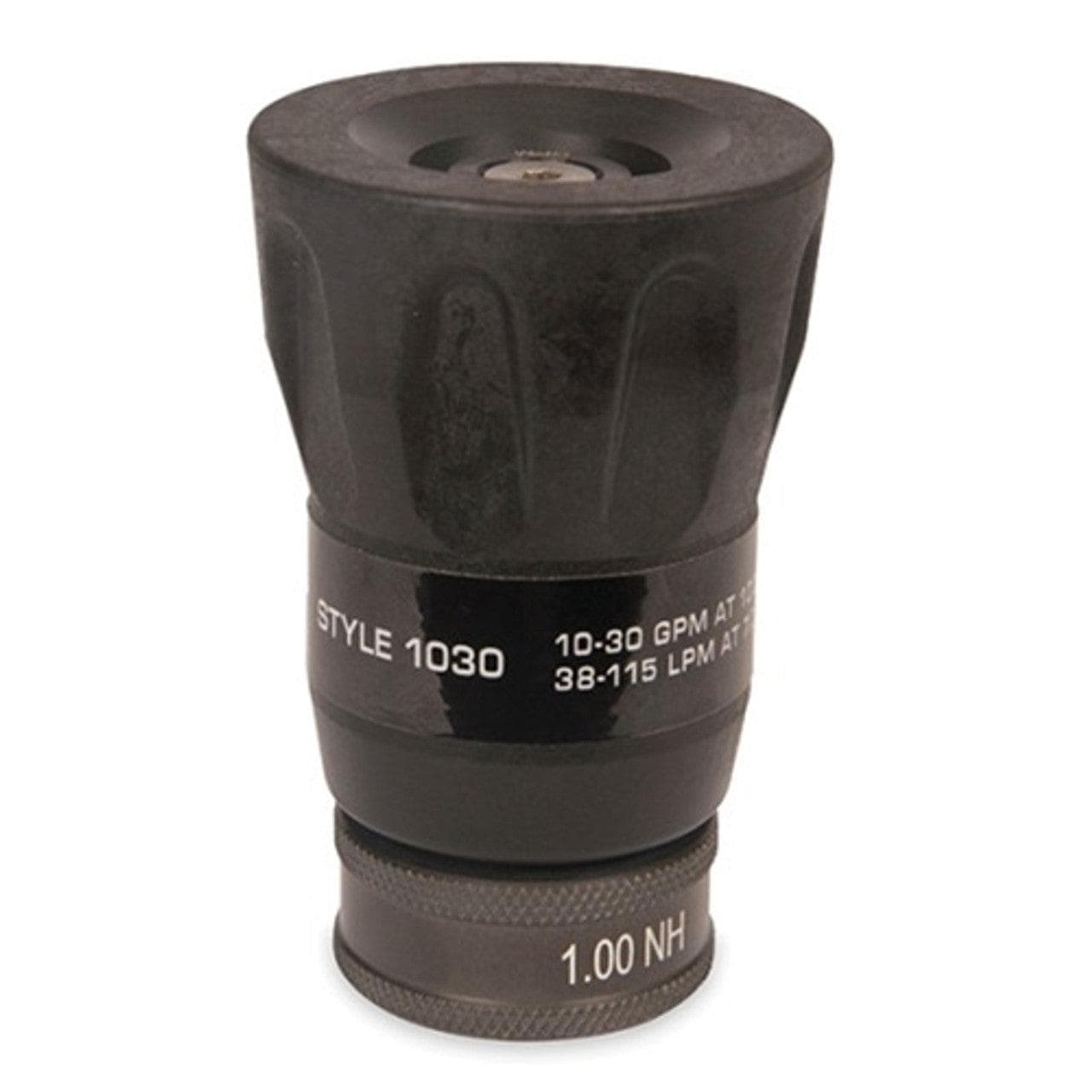

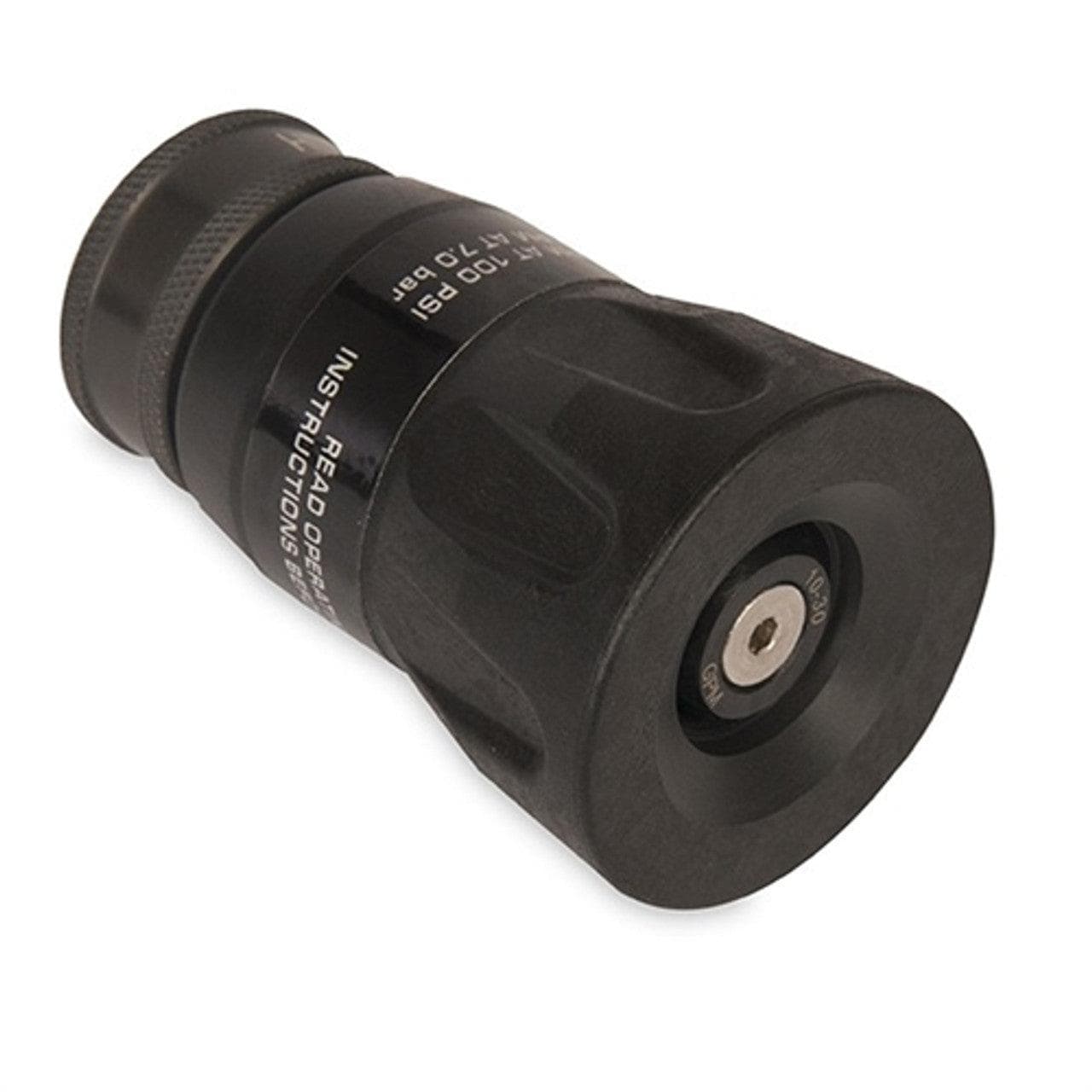

The Akron Brass Forestry Handline Nozzle is a lightweight, durable nozzle designed for the rugged simplicity required in wildland and forestry firefighting operations. Its compact design and low-flow capabilities make it ideal for applications where water conservation and maneuverability are critical, including brush fires, mop-up operations, and remote firefighting environments.
Constructed from durable Pyrolite®, this dual-flow nozzle features an adjustable spray pattern and simple twist operation that allows firefighters to quickly switch between multiple flow and stream configurations. Operating at a rated pressure of 100 PSI, the nozzle provides both straight stream and narrow fog patterns at 10 GPM and 30 GPM settings, offering versatility for a wide range of wildland firefighting situations.
Features
• Designed for wildland and forestry firefighting applications
• Lightweight and compact for easy carrying and operation
• Durable Pyrolite® construction
• Dual-flow nozzle with adjustable stream pattern
• Simple twist operation for quick setting changes
• Multiple operating positions for versatile fire attack and mop-up operations
• Provides both straight stream and narrow fog patterns
• Ideal for low-flow firefighting applications where water conservation is important
• Replacement for Akron Brass Style 1700 Aussie Bush Nozzle
• Available with NH or NPSH threads
Specifications
• Manufacturer: Akron Brass
• Style: 1030
• Product Type: Forestry Handline Nozzle
• Application: Wildland and Forestry Firefighting
• Material: Pyrolite®
• Inlet Size: 1" NH Thread (25 mm)
• Rated Pressure: 100 PSI (7 Bar)
• 10 GPM Straight Stream (40 LPM)
• 10 GPM Narrow Fog (40 LPM)
• 30 GPM Straight Stream (115 LPM)
• 30 GPM Narrow Fog (115 LPM)
• Flow Range: 10–30 GPM
• Length: 4" (102 mm)
• Width: 2" (51 mm)
• Height: 2" (51 mm)
• Weight: 0.5 lb (0.2 kg)
