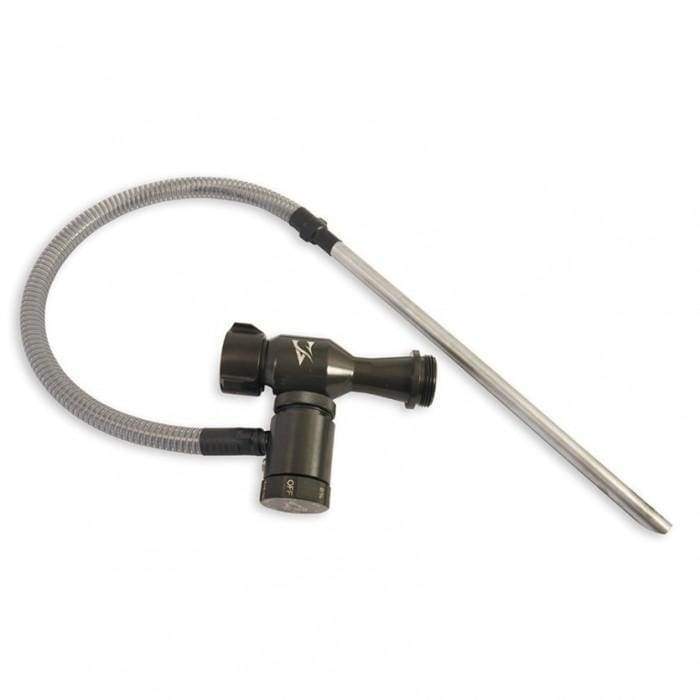

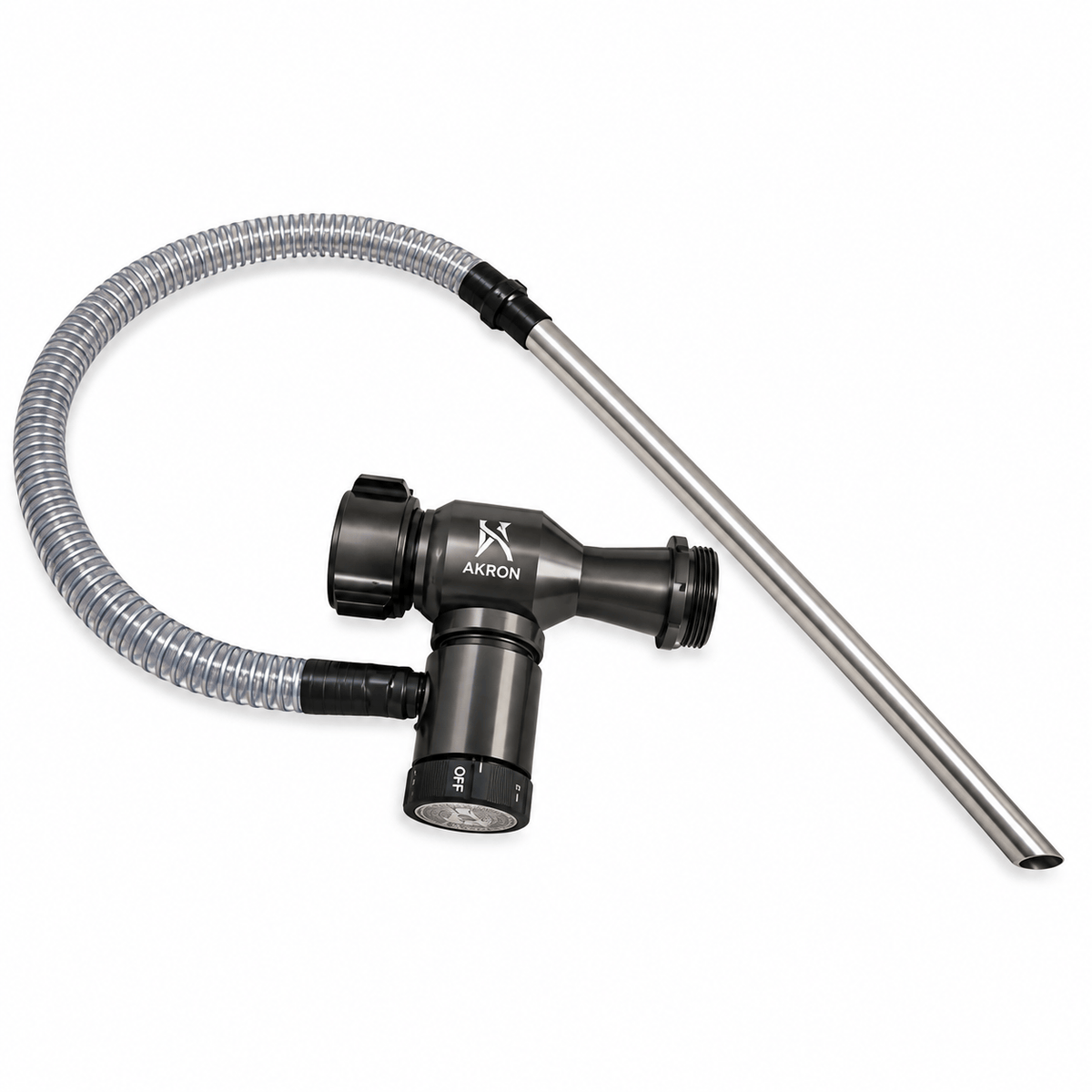

The Akron Brass 60 GPM Pyrolite® In-Line Foam Eductor is designed to accurately proportion firefighting foam concentrates into the water stream for effective fire suppression operations. Built for municipal, industrial, and emergency response applications, this eductor delivers reliable foam performance while maintaining a lightweight and corrosion-resistant design.
Featuring a large, easy-to-read removable metering dial with adjustable settings from 0% to 6%, the eductor allows operators to quickly select the desired foam concentrate ratio. Rated for operation at 200 PSI inlet pressure, it works effectively with nozzles operating between 50 and 100 PSI. A standard 30" pickup hose is included, making this eductor a dependable solution for portable foam proportioning systems.
Features
• Designed for accurate foam concentrate proportioning
• Lightweight and durable Pyrolite® construction
• Large, easy-to-read removable metering dial
• Adjustable metering settings from 0% to 6%
• Provides reliable foam application for firefighting operations
• Rated for operation at 200 PSI inlet pressure
• Compatible with nozzles rated from 50 to 100 PSI
• Includes 30" pickup hose as standard equipment
• Available with 1.5" or 2.5" swivel inlet configurations
• Ideal for municipal, industrial, and emergency response applications
Specifications
• Manufacturer: Akron Brass
• Style: 3060
• Product Type: In-Line Foam Eductor
• Material: Pyrolite®
• Flow Rate: 60 GPM (230 LPM)
• Inlet Pressure Rating: 200 PSI (14 Bar)
• Metering Range: 0% to 6%
• Inlet Connection: 1.5" or 2.5" Swivel Inlet (Configuration Dependent)
• Outlet Connection: 1.5" Male Outlet
• Pickup Hose Length: 30" Standard
• Compatible Nozzle Pressure Range: 50–100 PSI (3–7 Bar)
